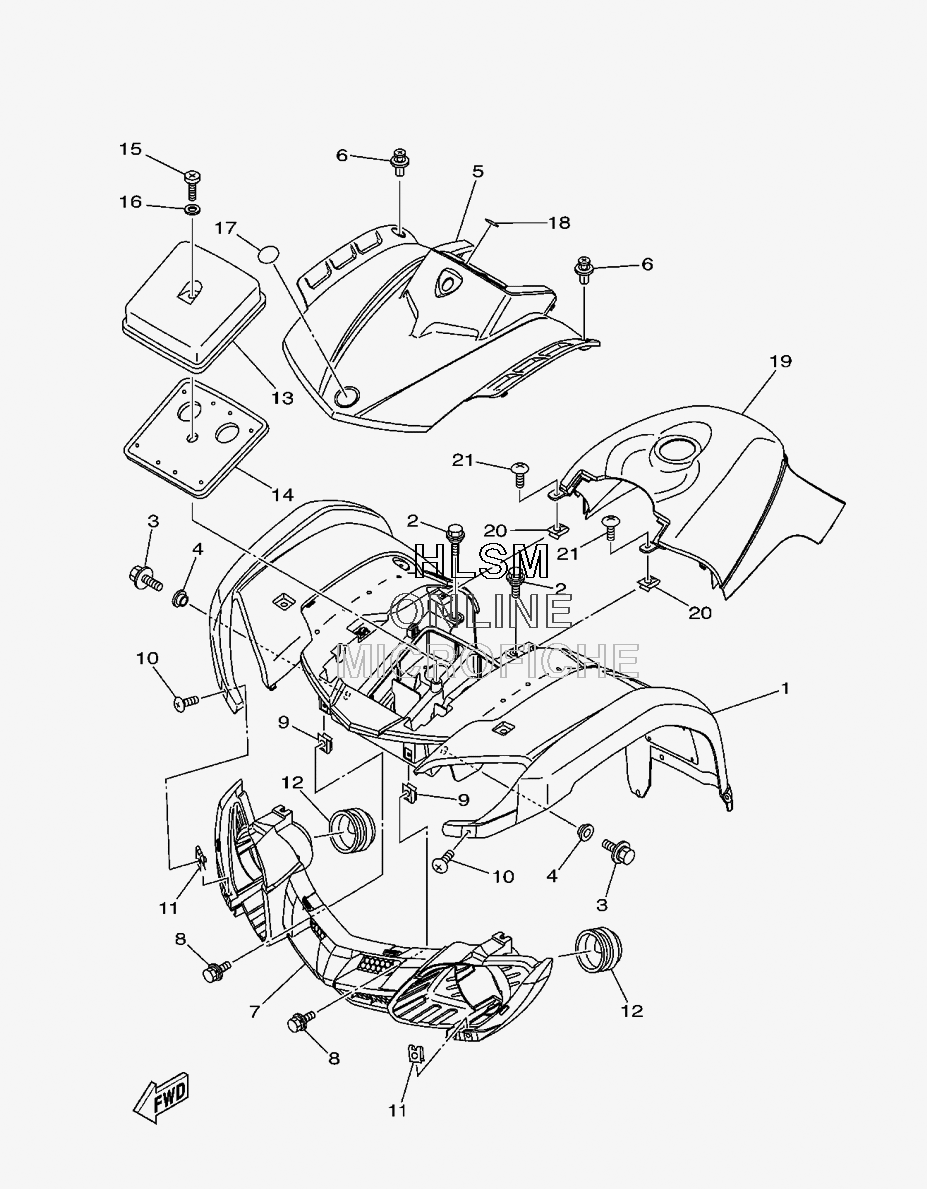

FENDER - FRONT для Yamaha GRIZZLY 125 - 2009 года выпуска
-
№АртикулНазвание
-
11C5-W2151-02-00 FRONT FENDER COMP. (PDG)FRONT FENDER COMP. (PDG)
-
11C5-W2151-30-00 FRONT FENDER COMP. (SMJ)FRONT FENDER COMP. (SMJ)
-
290109-06172-00 BOLTBOLT
-
390119-06147-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
490387-06153-00 COLLARCOLLAR
-
51C5-23391-00-00 PANEL, FRONTPANEL, FRONT
-
690269-07076-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
71C5-28309-00-00 GRILLE, FRONTGRILLE, FRONT
-
890119-06201-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
990183-060A7-00 NUT, SPRINGNUT, SPRING
-
1090150-06016-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
1190183-06053-00 NUT, SPRINGNUT, SPRING
-
125GH-28349-00-00 CAPCAP
-
133FA-14422-10-00 CAP, CLEANER CASE 2CAP, CLEANER CASE 2
-
143FA-14461-00-00 ELEMENT, AIR CLEANER 2ELEMENT, AIR CLEANER 2
-
1598502-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1692902-05600-00 WASHER, PLATEWASHER, PLATE
-
175KM-2175B-00-00 TUNING FORK MARKTUNING FORK MARK
-
185GT-2836B-10-00 TUNING FORK MARKTUNING FORK MARK
-
191C5-2171A-00-00 COVER, TOP (PDG)COVER, TOP (PDG)
-
191C5-2171A-30-00 COVER, TOP (SMJ)COVER, TOP (SMJ)
-
2090183-06053-00 NUT, SPRINGNUT, SPRING
-
2190150-06016-00 SCREW, ROUND HEADSCREW, ROUND HEAD
