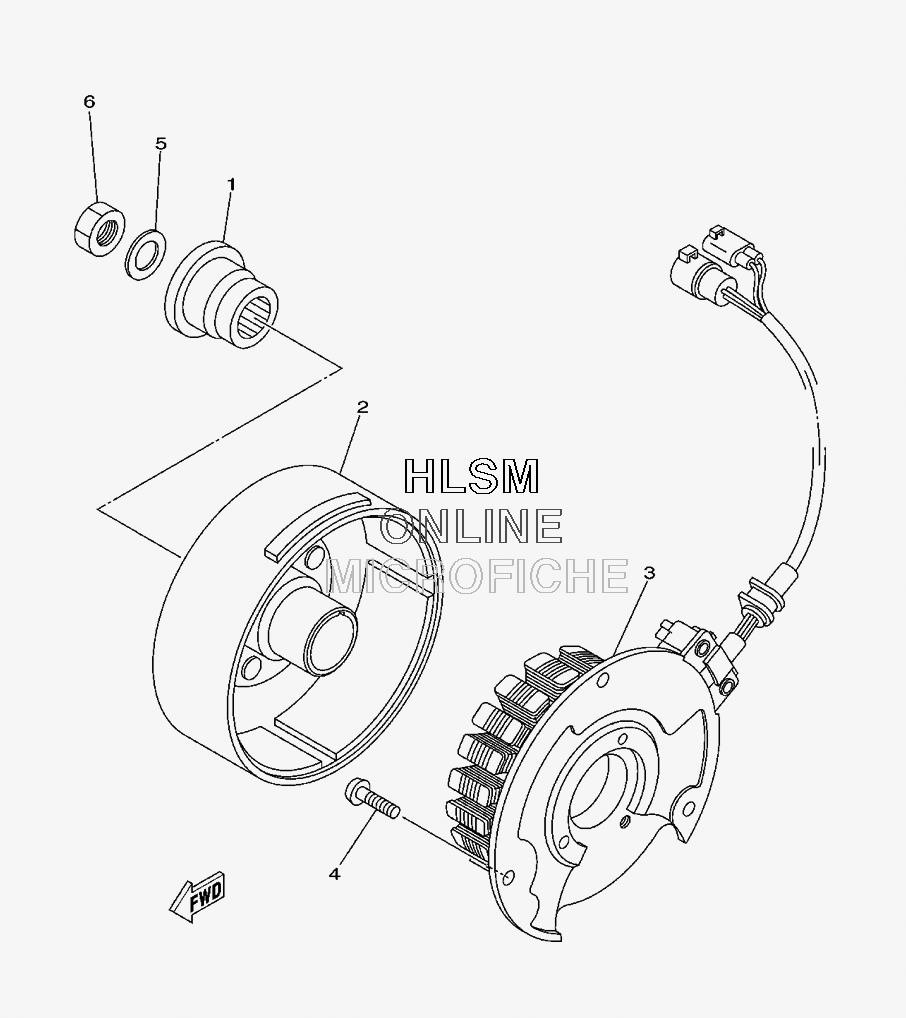

GENERATOR для Yamaha GRIZZLY 125 - 2009 года выпуска
-
№АртикулНазвание
-
13FA-15724-00-00 SPACERSPACER
-
21C5-81450-01-00 ROTOR ASSYROTOR ASSY
-
31C5-81410-00-00 STATOR ASSYSTATOR ASSY
-
492012-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
590201-12030-00 WASHER, PLATEWASHER, PLATE
-
690170-12181-00 NUTNUT
