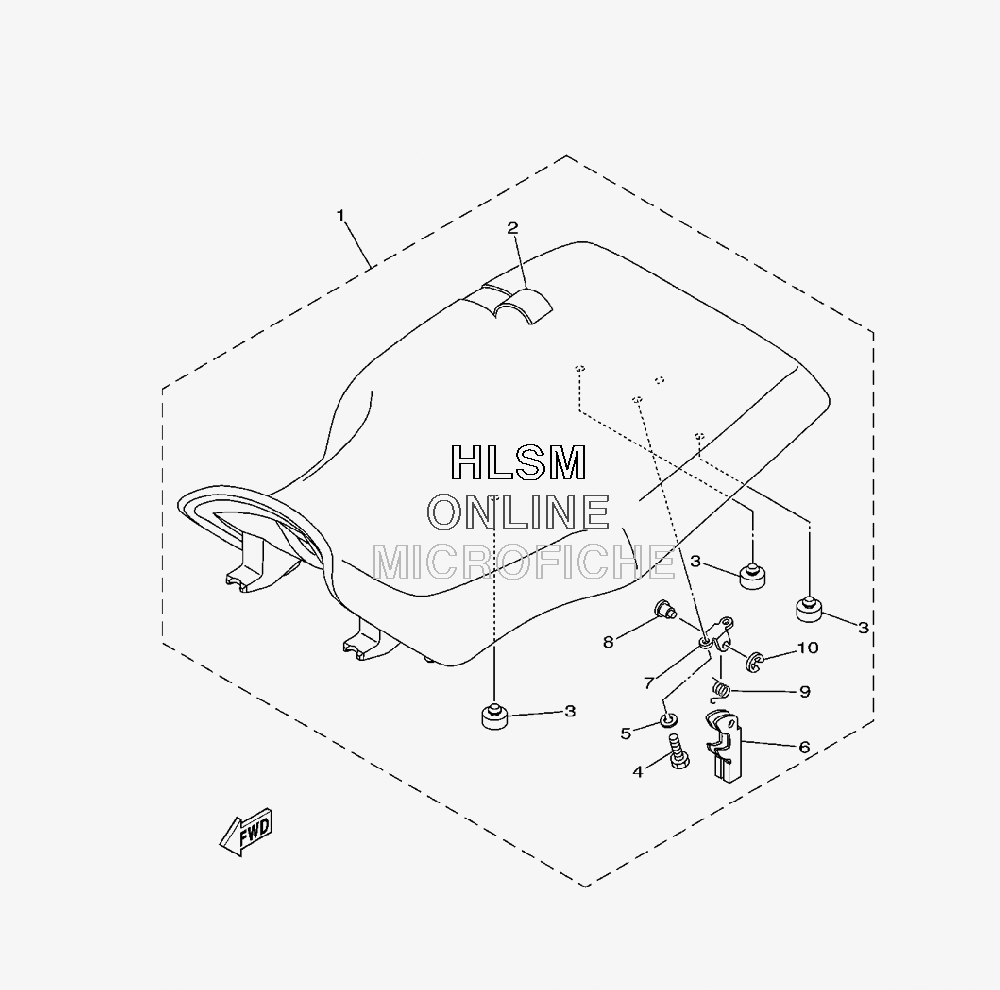

SEAT для Yamaha GRIZZLY 125 - 2009 года выпуска
-
№АртикулНазвание
-
11C5-24710-10-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
21C5-24731-00-00 COVER, SEATCOVER, SEAT
-
3371-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
497002-06012-00 BOLTBOLT
-
592902-06100-00 WASHER, SPRINGWASHER, SPRING
-
629U-24776-00-00 LEVER, SEATLEVER, SEAT
-
74K0-24775-00-00 BRACKET, SEAT LEVERBRACKET, SEAT LEVER
-
84K0-24774-01-00 PINPIN
-
990508-20779-00 SPRING, TORSIONSPRING, TORSION
-
1099001-04600-00 CIRCLIPCIRCLIP
