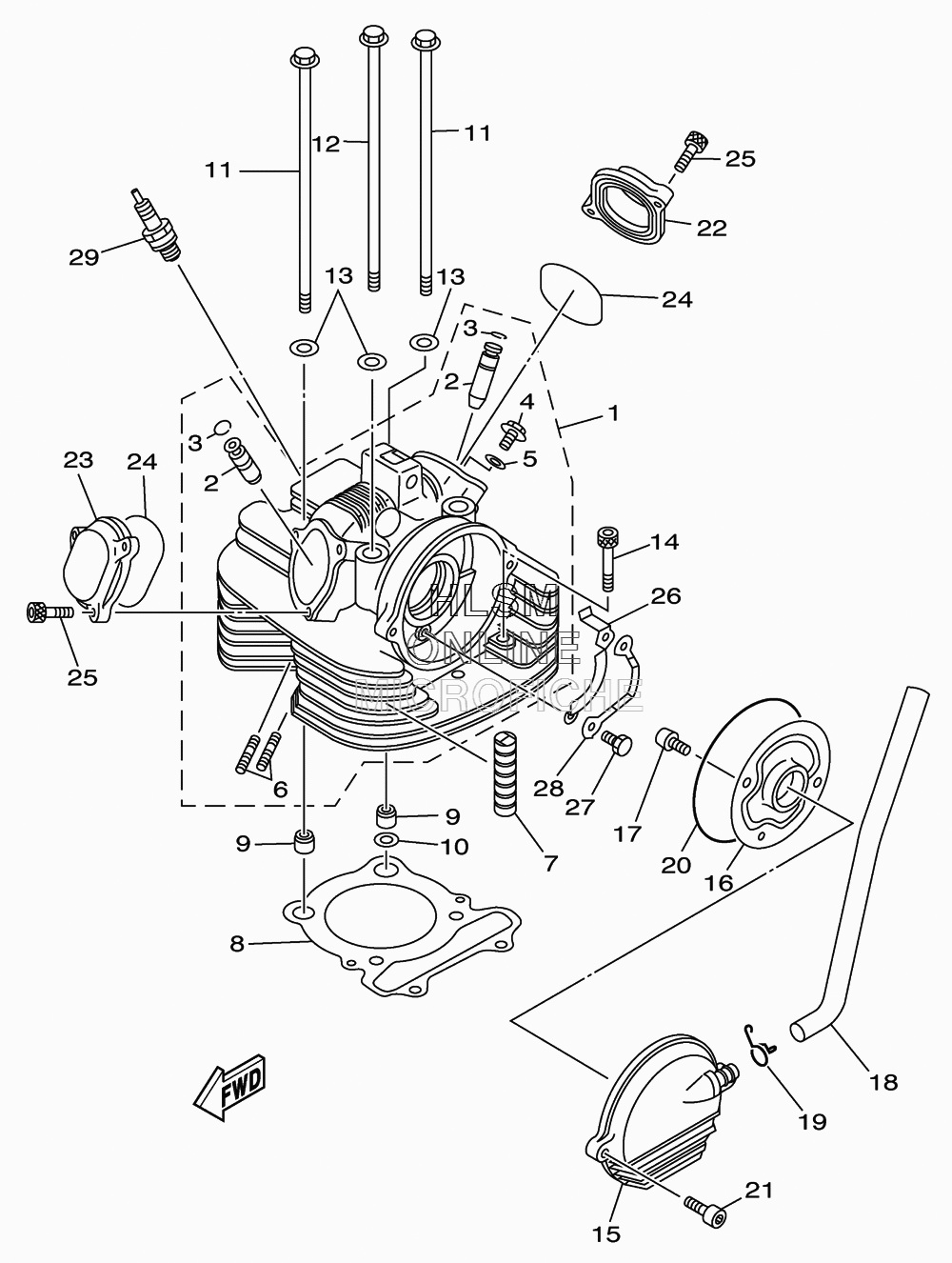

CYLINDER HEAD для Yamaha BIG BEAR 400 4WD HUNTER - 2010 года выпуска
-
№АртикулНазвание
-
15YT-11101-20-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
23Y1-11133-11-00 GUIDE, INTAKE VALVEGUIDE, INTAKE VALVE
-
393440-12052-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
495022-06014-00 BOLT, FLANGEBOLT, FLANGE
-
590430-06192-00 GASKETGASKET
-
690116-06041-00 BOLT, STUDBOLT, STUD
-
73Y1-11127-00-00 ABSORBER 3ABSORBER 3
-
81UY-11181-01-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
999530-14016-00 PIN, DOWELPIN, DOWEL
-
1090430-14240-00 GASKETGASKET
-
1190105-10260-00 BOLT, FLANGEBOLT, FLANGE
-
1290105-10261-00 BOLT, FLANGEBOLT, FLANGE
-
1390201-10128-00 WASHER, PLATEWASHER, PLATE
-
1491312-08050-00 BOLTBOLT
-
154WU-11160-01-00 BREATHER ASSYBREATHER ASSY
-
164KB-11165-00-00 PLATE, BREATHERPLATE, BREATHER
-
1795022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
185FU-E1166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
1990467-140A4-00 CLIPCLIP
-
2093211-06635-00 O-RINGO-RING
-
2191312-06025-00 BOLTBOLT
-
222NL-11186-12-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
232NL-11187-11-00 COVER, CYLINDER HEAD SIDE 3COVER, CYLINDER HEAD SIDE 3
-
2493210-57634-00 O-RINGO-RING
-
2591312-06020-00 BOLT (3JB)BOLT (3JB)
-
263Y1-1111F-00-00 PLATEPLATE
-
2797002-06012-00 BOLT (661)BOLT (661)
-
2890215-06162-00 WASHER, LOCKWASHER, LOCK
-
29NGK-DR8EA-00-00 PLUG, SPARK (NGK DR8EA)PLUG, SPARK (NGK DR8EA)
