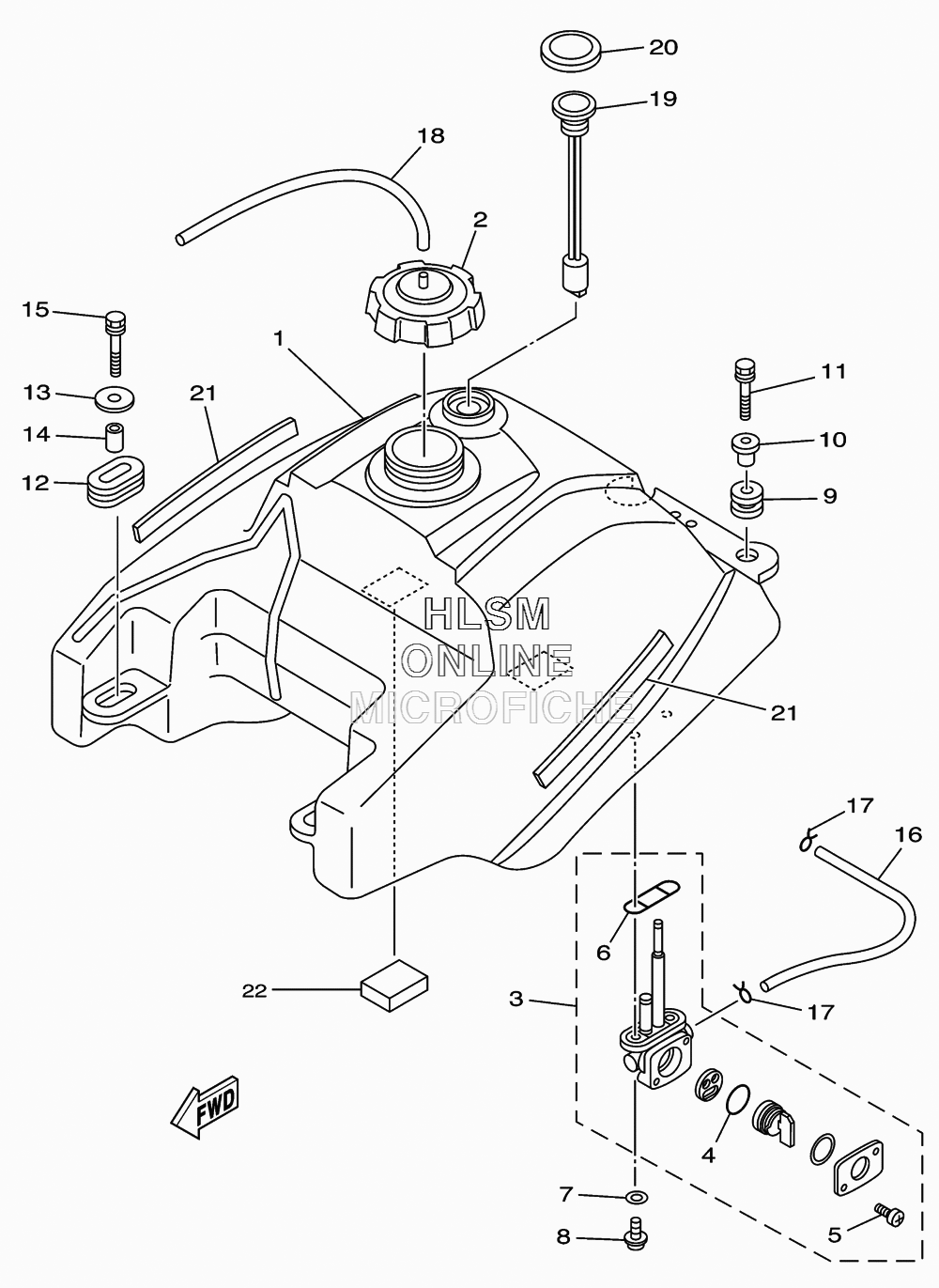

FUEL TANK для Yamaha BIG BEAR 400 4WD HUNTER - 2010 года выпуска
-
№АртикулНазвание
-
15FU-F4110-11-00 FUEL TANK COMP.FUEL TANK COMP.
-
25KM-24610-00-00 CAP ASSYCAP ASSY
-
33JN-24500-02-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
43AJ-24534-01-00 SEAL, COCKSEAL, COCK
-
598507-03008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
64X8-24512-00-00 O-RINGO-RING
-
790202-05193-00 WASHER, PLATEWASHER, PLATE
-
890149-06108-00 SCREWSCREW
-
990480-18290-00 GROMMETGROMMET
-
1090387-066J1-00 COLLARCOLLAR
-
1190119-06883-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1290480-01400-00 GROMMETGROMMET
-
1390201-06090-00 WASHER, PLATEWASHER, PLATE
-
1490387-07598-00 COLLARCOLLAR
-
1590119-06883-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1690445-11052-00 HOSE (L170)HOSE (L170)
-
1790467-100A1-00 CLIPCLIP
-
1890445-088C5-00 HOSE (L400)HOSE (L400)
-
194SH-24260-01-00 FUEL METER ASSYFUEL METER ASSY
-
204SH-24261-00-00 HOUSING, FUEL METERHOUSING, FUEL METER
-
215FU-F4181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
225FU-F414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
