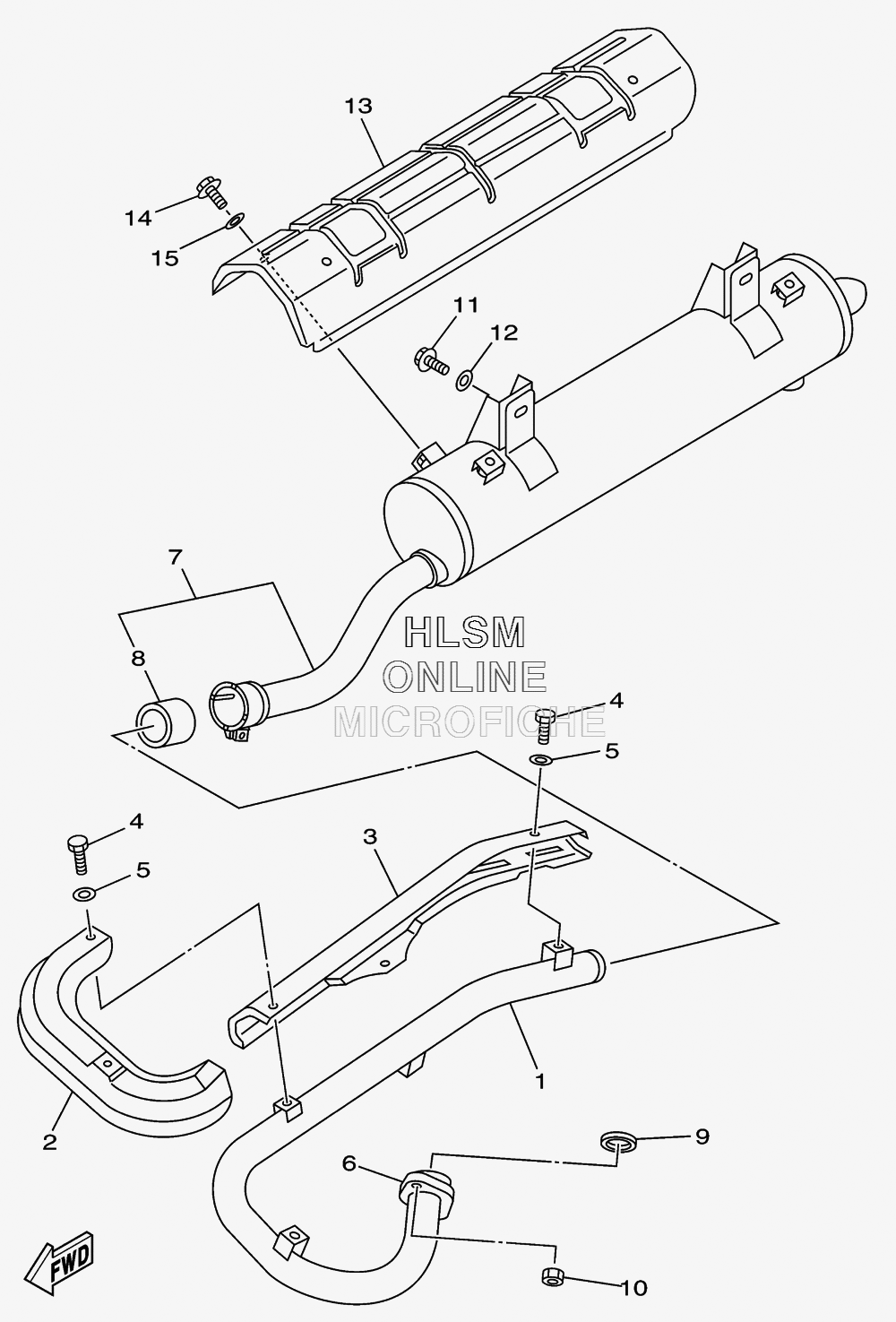

EXHAUST для Yamaha BIG BEAR 400 4WD HUNTER - 2010 года выпуска
-
№АртикулНазвание
-
14S1-E4611-00-00 PIPE, EXHAUST LPIPE, EXHAUST L
-
25FU-E4627-00-00 COVER, EXHAUSTCOVER, EXHAUST
-
35FU-E4628-00-00 PROTECTOR, EXHAUST PIPEPROTECTOR, EXHAUST PIPE
-
495812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
590201-06036-00 WASHER, PLATEWASHER, PLATE
-
64S1-E4612-00-00 NUT, RINGNUT, RING
-
74S1-E4710-00-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
85ND-E4714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
93GD-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
1090179-06668-00 NUTNUT
-
1190105-10845-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1290201-10035-00 WASHER, PLATEWASHER, PLATE
-
135FU-E4718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
1495822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1590201-06078-00 WASHER, PLATEWASHER, PLATE
