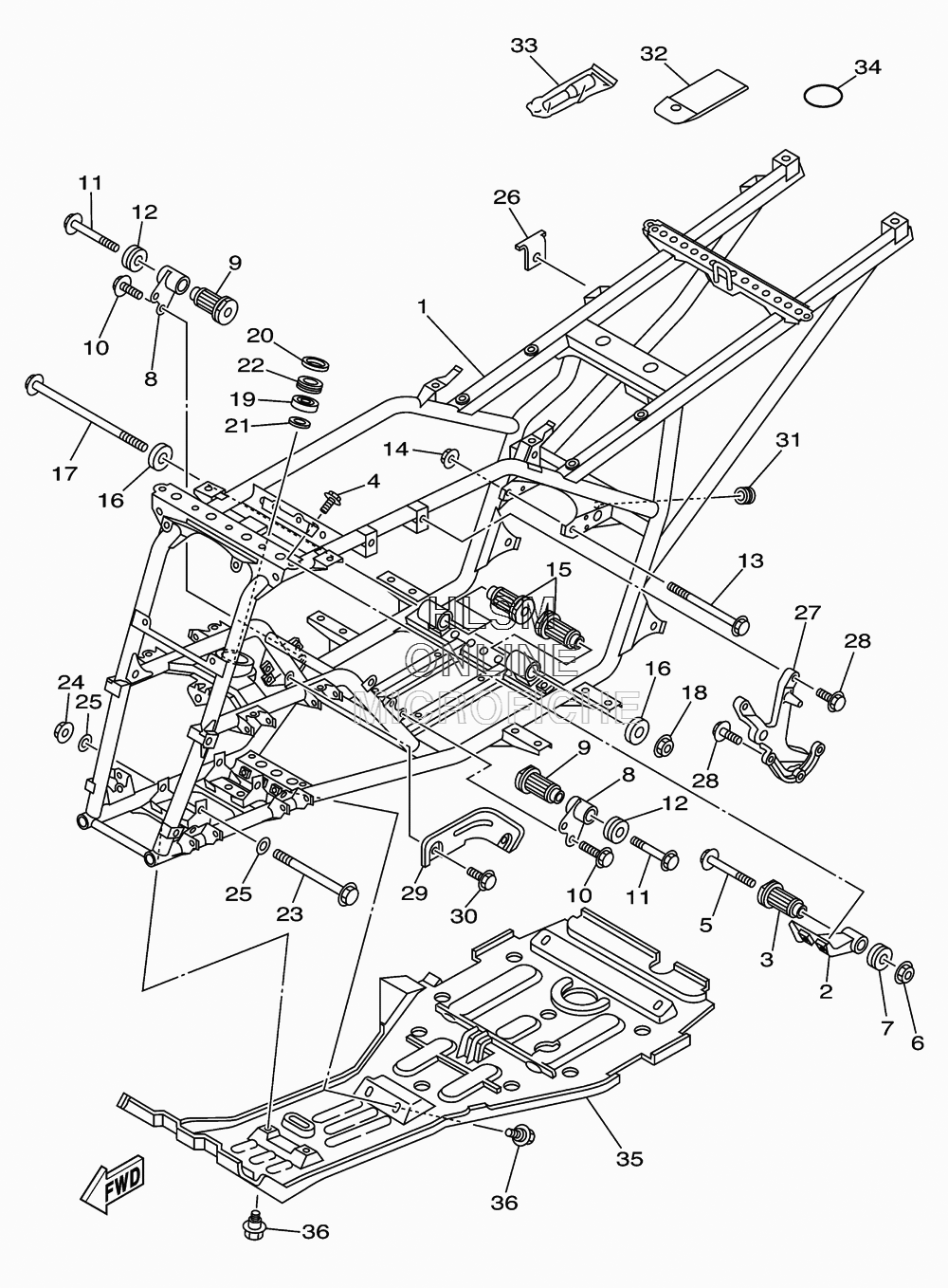

FRAME для Yamaha GRIZZLY 350 4WD - 2010 года выпуска
-
№АртикулНазвание
-
15UH-F1110-02-00 FRAME COMP.FRAME COMP.
-
25UH-F1315-01-00 STAY, ENGINE 2STAY, ENGINE 2
-
35UH-E5336-00-00 DAMPER, ENGINE MOUNT 3DAMPER, ENGINE MOUNT 3
-
495812-08012-00 BOLT, FLANGEBOLT, FLANGE
-
595812-10110-00 BOLT, FLANGEBOLT, FLANGE
-
695602-10200-00 NUT, U FLANGENUT, U FLANGE
-
75ND-F1486-00-00 DAMPER 2DAMPER 2
-
85UH-F1316-01-00 STAY, ENGINE 3STAY, ENGINE 3
-
95UH-E5336-00-00 DAMPER, ENGINE MOUNT 3DAMPER, ENGINE MOUNT 3
-
1095812-08012-00 BOLT, FLANGEBOLT, FLANGE
-
1195812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
125ND-F1486-00-00 DAMPER 2DAMPER 2
-
1390105-10193-00 BOLT, FLANGEBOLT, FLANGE
-
1495602-10200-00 NUT, U FLANGENUT, U FLANGE
-
155UH-E5336-00-00 DAMPER, ENGINE MOUNT 3DAMPER, ENGINE MOUNT 3
-
165ND-F1488-00-00 DAMPERDAMPER
-
1790105-10284-00 BOLT, FLANGEBOLT, FLANGE
-
1895602-10200-00 NUT, U FLANGENUT, U FLANGE
-
1993306-203YN-00 BEARINGBEARING
-
2093102-25081-00 OIL SEALOIL SEAL
-
2193102-25099-00 OIL SEALOIL SEAL
-
222GU-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
2390105-10051-00 BOLT, FLANGEBOLT, FLANGE
-
2495602-10200-00 NUT, U FLANGENUT, U FLANGE
-
2590201-10035-00 WASHER, PLATEWASHER, PLATE
-
265ND-F1446-01-00 STAY, MUFFLER 2STAY, MUFFLER 2
-
275ND-F1585-01-00 ARMARM
-
2895822-08020-00 BOLT,FLANGE(8AB)BOLT,FLANGE(8AB)
-
295UH-F2825-00-00 PROTECTOR 1PROTECTOR 1
-
3095812-06010-00 BOLT, FLANGEBOLT, FLANGE
-
3190480-10517-00 GROMMETGROMMET
-
325ND-F8100-00-00 TOOL KITTOOL KIT
-
331NV-2811A-01-00 GAUGE, AIRGAUGE, AIR
-
3493210-64297-00 O-RINGO-RING
-
355ND-F147A-02-00 GUARD, ENGINE 1GUARD, ENGINE 1
-
3690109-06172-00 BOLTBOLT
