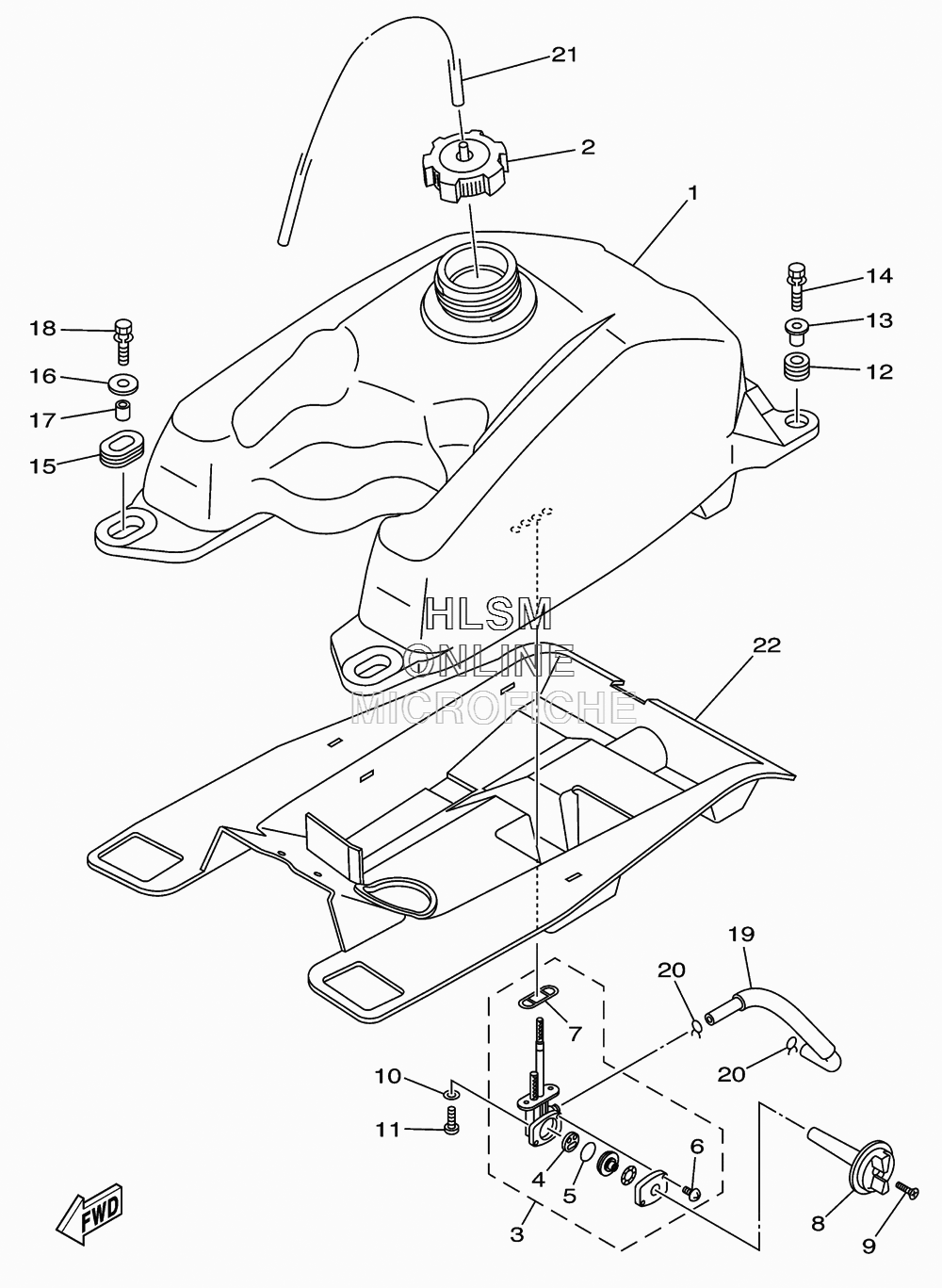

FUEL TANK для Yamaha GRIZZLY 350 4WD - 2010 года выпуска
-
№АртикулНазвание
-
15UH-F4110-10-00 FUEL TANK COMP.FUEL TANK COMP.
-
25KM-24610-00-00 CAP ASSYCAP ASSY
-
35KM-24500-01-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
43AC-24523-00-00 VALVE PACKINGVALVE PACKING
-
53AJ-24534-01-00 SEAL, COCKSEAL, COCK
-
698507-03014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
74X8-24512-00-00 O-RINGO-RING
-
85GH-24524-00-00 LEVER, COCKLEVER, COCK
-
998702-04018-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
1090202-05193-00 WASHER, PLATEWASHER, PLATE
-
1190149-06108-00 SCREWSCREW
-
1290480-18290-00 GROMMETGROMMET
-
1390387-066J1-00 COLLARCOLLAR
-
1490119-06883-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1590480-01400-00 GROMMETGROMMET
-
1690201-06090-00 WASHER, PLATEWASHER, PLATE
-
1790387-07598-00 COLLARCOLLAR
-
1890119-06883-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
195UH-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
2090467-100A1-00 CLIPCLIP
-
2190445-088C5-00 HOSE (L400)HOSE (L400)
-
225UH-F414H-01-00 DAMPER, PLATE 1DAMPER, PLATE 1
