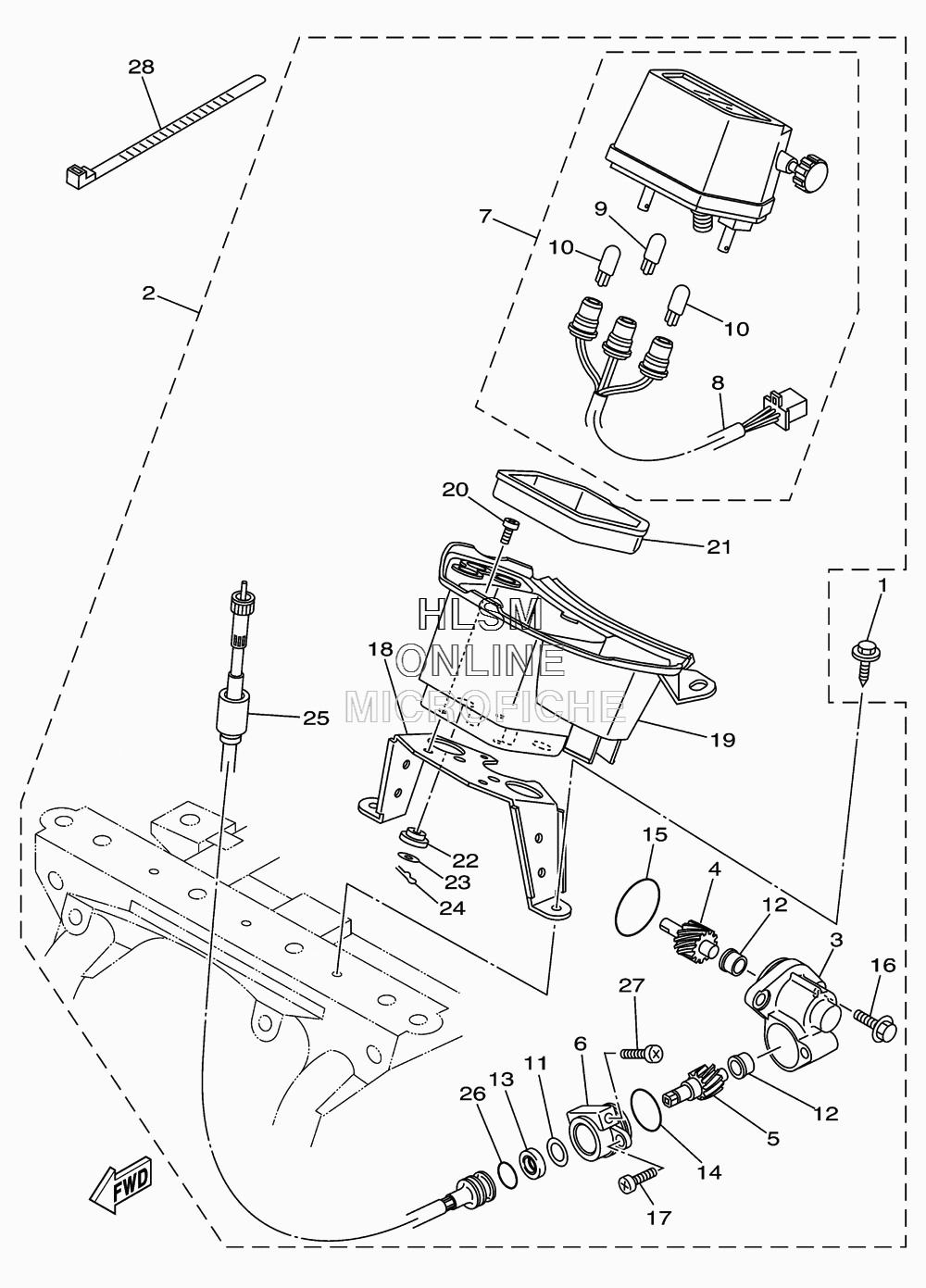

SPEEDOMETER для Yamaha GRIZZLY 350 4WD - 2010 года выпуска
-
№АртикулНазвание
-
190119-06157-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
25UH-W0081-01-00 SPEEDOMETER KITSPEEDOMETER KIT
-
34WV-17811-00-00 HOUSING, TACHOMETER GEARHOUSING, TACHOMETER GEAR
-
44WV-17831-00-00 GEAR, DRIVEGEAR, DRIVE
-
54WV-17841-00-00 GEAR, DRIVENGEAR, DRIVEN
-
659V-17811-00-00 HOUSING, TACHOMETER GEARHOUSING, TACHOMETER GEAR
-
74SH-83570-00-00 SPEEDOMETER ASSYSPEEDOMETER ASSY
-
84SH-83536-00-00 SOCKET, METERSOCKET, METER
-
94R0-83517-00-00 BULB (12V-3.4W T10)BULB (12V-3.4W T10)
-
103GM-83517-00-00 BULB (12V-1.7W)BULB (12V-1.7W)
-
1190201-12M34-00 WASHER, PLATEWASHER, PLATE
-
1290381-08002-00 BUSH, SOLIDBUSH, SOLID
-
1393102-08307-00 OIL SEALOIL SEAL
-
1493210-24253-00 O-RINGO-RING
-
1593210-32172-00 O-RINGO-RING
-
1695027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1798507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
185UH-F834L-00-00 BRKT., METERBRKT., METER
-
195UH-F837L-11-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
2098507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
215UH-H252R-00-00 DAMPERDAMPER
-
221M1-83526-00-00 DAMPER 2DAMPER 2
-
234X8-83524-00-00 WASHER, SPECIALWASHER, SPECIAL
-
24437-83525-00-00 CLIPCLIP
-
255VH-H3550-00-00 SPEEDOMETER CABLE ASSYSPEEDOMETER CABLE ASSY
-
2693210-14104-00 O-RINGO-RING
-
2798517-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2890464-31827-00 CLAMPCLAMP
