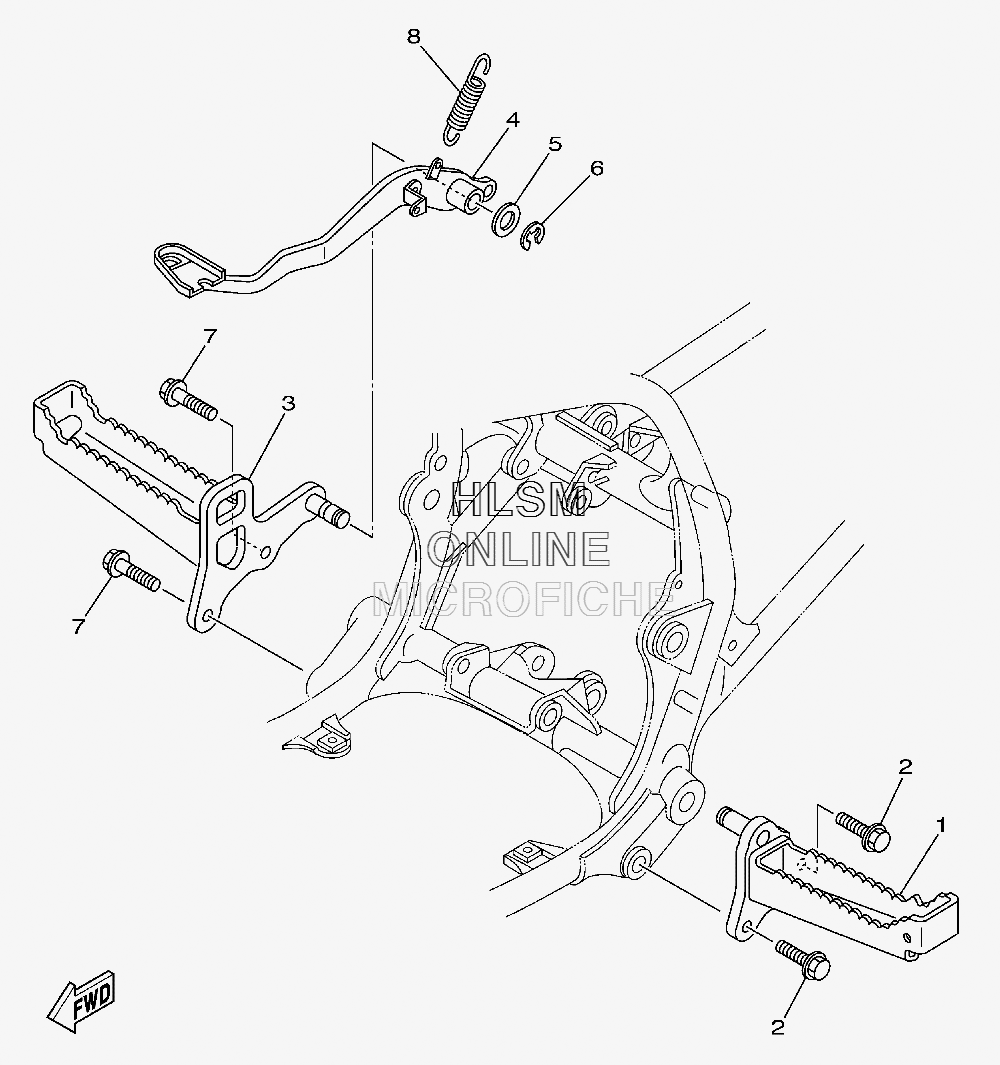

STAND - FOOTREST для Yamaha RAPTOR 350 - 2010 года выпуска
-
№АртикулНазвание
-
15YT-27411-10-00 FOOTREST 1FOOTREST 1
-
295812-10025-00 BOLT,FLANGE (3GD)BOLT,FLANGE (3GD)
-
35YT-27421-10-00 FOOTREST 2FOOTREST 2
-
45YT-27211-10-00 PEDAL, BRAKEPEDAL, BRAKE
-
590201-15018-00 WASHER, PLATEWASHER, PLATE
-
693430-12008-00 CIRCLIP, E-TYPECIRCLIP, E-TYPE
-
795812-10025-00 BOLT,FLANGE (3GD)BOLT,FLANGE (3GD)
-
890506-20026-00 SPRING, TENSIONSPRING, TENSION
