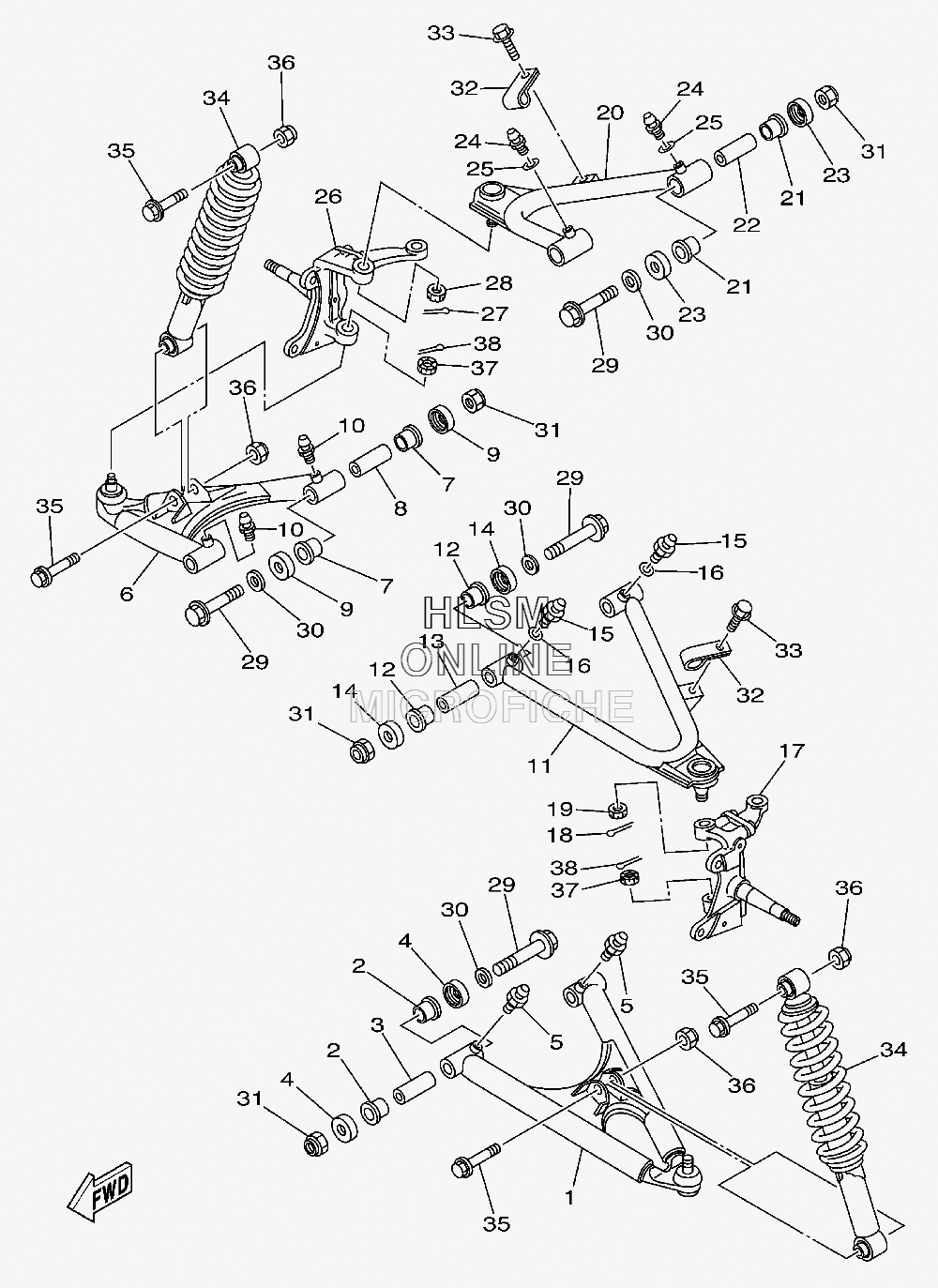

SUSPENSION - FRONT WHEEL для Yamaha RAPTOR 350 - 2010 года выпуска
-
№АртикулНазвание
-
13GD-23570-10-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
290381-15088-00 BUSH, SOLIDBUSH, SOLID
-
390387-101R3-00 COLLARCOLLAR
-
45YT-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
593700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
63GD-23580-10-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
790381-15088-00 BUSH, SOLIDBUSH, SOLID
-
890387-101R3-00 COLLARCOLLAR
-
95YT-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
1093700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
113GD-23540-10-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
1290381-15088-00 BUSH, SOLIDBUSH, SOLID
-
1390387-101R3-00 COLLARCOLLAR
-
145YT-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
1593700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
1690201-063F3-00 WASHER, PLATEWASHER, PLATE
-
173GD-23501-10-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1891401-20020-00 PIN, COTTERPIN, COTTER
-
1990171-10001-00 NUT, CASTLENUT, CASTLE
-
203GD-23550-10-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
2190381-15088-00 BUSH, SOLIDBUSH, SOLID
-
2290387-101R3-00 COLLARCOLLAR
-
235YT-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
2493700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
2590201-063F3-00 WASHER, PLATEWASHER, PLATE
-
263GD-23502-10-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
2791401-20020-00 PIN, COTTERPIN, COTTER
-
2890171-10001-00 NUT, CASTLENUT, CASTLE
-
2990105-10135-00 BOLT, FLANGEBOLT, FLANGE
-
3090201-10037-00 WASHER, PLATEWASHER, PLATE
-
3190185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
325VM-25886-10-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
3395822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
345YT-23350-20-00 SHOCK ABSORBER ASSY (BWS1)SHOCK ABSORBER ASSY (BWS1)
-
3590105-10131-00 BOLT, FLANGEBOLT, FLANGE
-
3690185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3790171-10001-00 NUT, CASTLENUT, CASTLE
-
3891401-20020-00 PIN, COTTERPIN, COTTER
