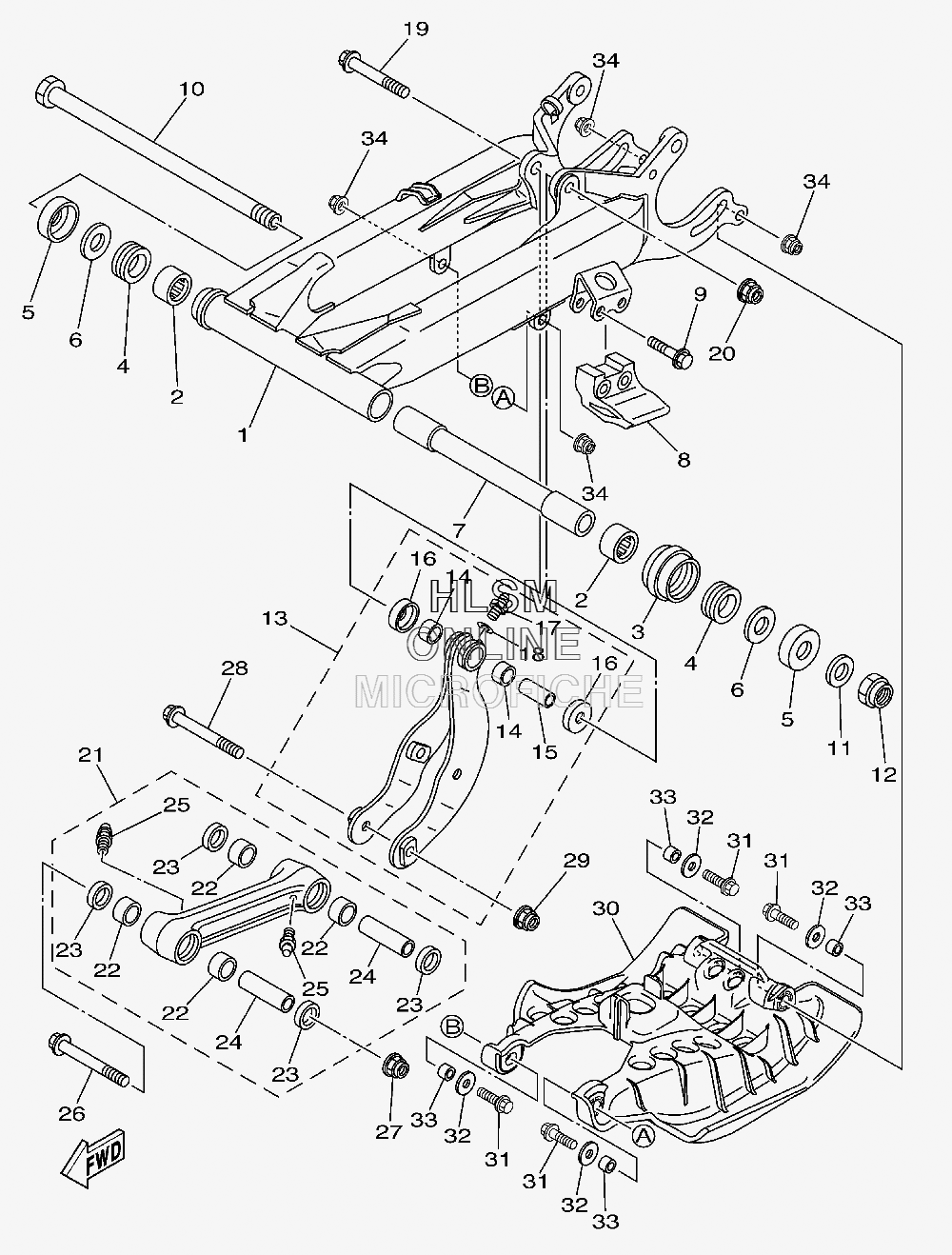

SUSPENSION - REAR ARM для Yamaha RAPTOR 350 - 2010 года выпуска
-
№АртикулНазвание
-
13GD-22110-40-00 REAR ARM COMP. (FOR BWS1)REAR ARM COMP. (FOR BWS1)
-
293317-22237-00 BEARING,CYL.#17BEARING,CYL.#17
-
32GU-22151-00-00 SEAL, GUARDSEAL, GUARD
-
493108-35004-00 OIL SEAL (35-41-8)OIL SEAL (35-41-8)
-
52K6-22128-01-00 COVER, THRUST 1COVER, THRUST 1
-
690201-244A9-00 WASHER,PLATE (2VM)WASHER,PLATE (2VM)
-
73GD-22184-00-00 BUSHBUSH
-
838W-22199-00-00 SUPPORT, CHAINSUPPORT, CHAIN
-
995802-08040-00 BOLT, FLANGEBOLT, FLANGE
-
101UY-22141-10-00 SHAFT, PIVOTSHAFT, PIVOT
-
1190201-16018-00 WASHER, PLATEWASHER, PLATE
-
1290185-16002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
135YT-2210J-00-00 RELAY ARM SUB ASSYRELAY ARM SUB ASSY
-
1490383-20032-00 BUSH, FORMEDBUSH, FORMED
-
1590387-125N8-00 COLLARCOLLAR
-
165YT-22129-00-00 COVER, THRUST 2COVER, THRUST 2
-
1793700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
1890201-063F3-00 WASHER, PLATEWASHER, PLATE
-
1990105-12050-00 BOLT, FLANGEBOLT, FLANGE
-
2095602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
215YT-2210K-00-00 CONNECTING ROD SUB ASSYCONNECTING ROD SUB ASSY
-
2290383-20032-00 BUSH, FORMEDBUSH, FORMED
-
2393109-20076-00 OIL SEALOIL SEAL
-
2490387-12021-00 COLLARCOLLAR
-
2593700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
2690105-12061-00 BOLT, FLANGEBOLT, FLANGE
-
2795602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2890105-12061-00 BOLT, FLANGEBOLT, FLANGE
-
2995602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
305YT-2219X-00-00 COVERCOVER
-
3197002-08030-00 BOLT,HEXAGONBOLT,HEXAGON
-
3290201-08054-00 WASHER, PLATEWASHER, PLATE
-
3390387-084N8-00 COLLAR (1RW)COLLAR (1RW)
-
3495702-08500-00 NUT,FLANGE (JN5)NUT,FLANGE (JN5)
