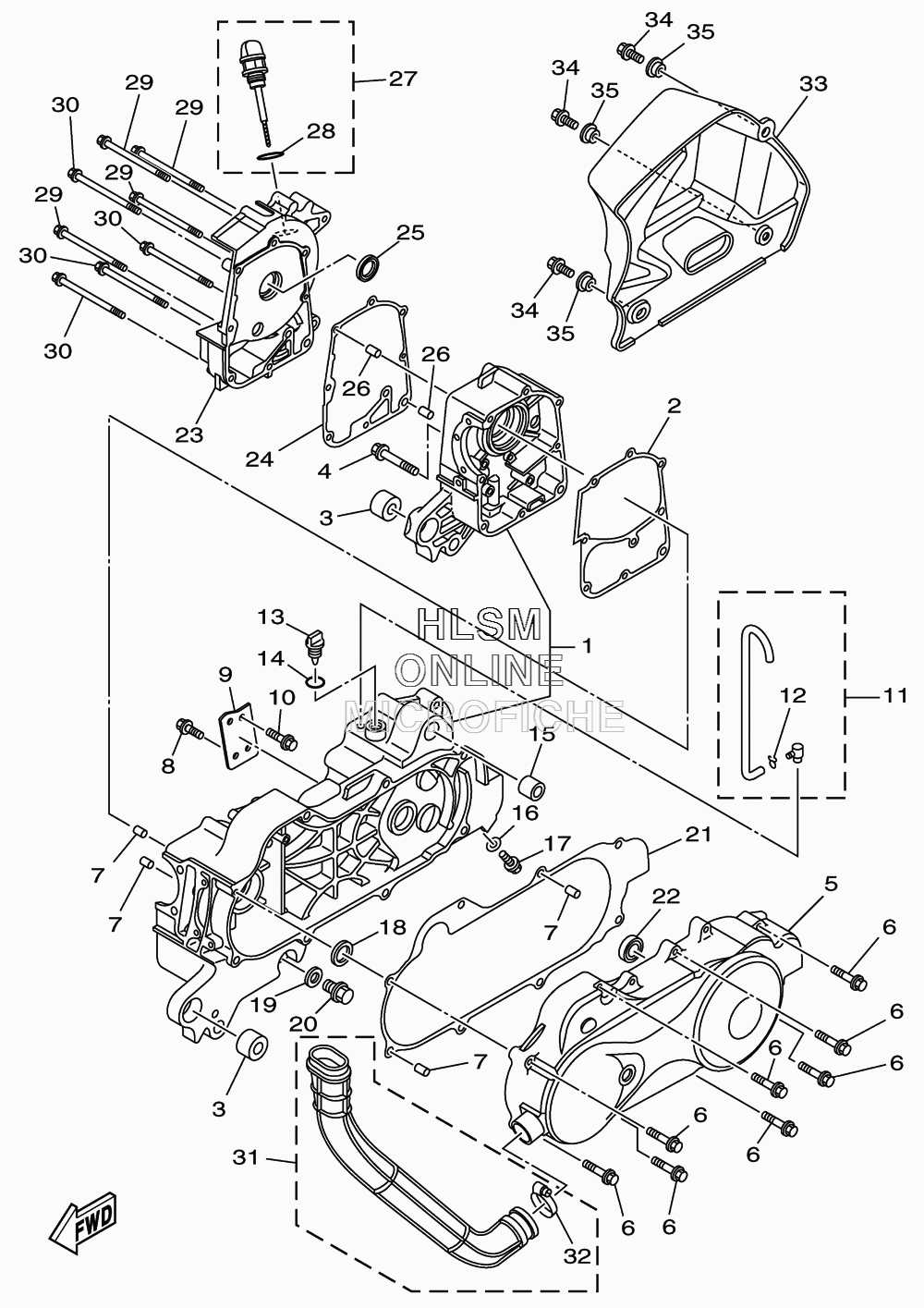

CRANKCASE для Yamaha RAPTOR 90 - 2010 года выпуска
-
№АртикулНазвание
-
143D-E5100-00-00 CRANKCASE ASSYCRANKCASE ASSY
-
243D-E5314-00-00 GASKET, CRANKCASE 1GASKET, CRANKCASE 1
-
343D-E5526-00-00 BUSHBUSH
-
443D-E2157-00-00 BOLTBOLT
-
543D-E5411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
695022-06035-00 BOLT, FLANGEBOLT, FLANGE
-
743D-E5181-00-00 PIN, DOWELPIN, DOWEL
-
895022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
943D-E5199-00-00 BRACKETBRACKET
-
1043D-E2228-00-00 BOLTBOLT
-
1143D-E1104-00-00 BREATHER PIPE ASSYBREATHER PIPE ASSY
-
1243D-E1188-00-00 CLIP, PIPECLIP, PIPE
-
1343D-E5363-00-00 PLUG, OILPLUG, OIL
-
1443D-E5114-00-00 O-RINGO-RING
-
1543D-E5582-00-00 BUSHBUSH
-
1643D-E1557-00-00 WASHER 1WASHER 1
-
1795822-08012-00 BOLT, FLANGEBOLT, FLANGE
-
1843D-E511B-00-00 OIL SEALOIL SEAL
-
1943D-E5561-00-00 WASHERWASHER
-
2043D-E5341-00-00 PLUG, DRAINPLUG, DRAIN
-
2143D-E1541-00-00 METAL, FILLERMETAL, FILLER
-
2243D-E7166-00-00 BEARING 2BEARING 2
-
2343D-E5421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
2443D-E5461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
2543D-E511A-00-00 OIL SEALOIL SEAL
-
2643D-E5181-00-00 PIN, DOWELPIN, DOWEL
-
2743D-E536A-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
2843D-E511C-00-00 OIL SEALOIL SEAL
-
2943D-E2615-00-00 BOLTBOLT
-
3095022-06100-00 BOLT, FLANGEBOLT, FLANGE
-
3143D-E5470-00-00 AIR DUCT ASSYAIR DUCT ASSY
-
3243D-E54F3-00-00 BANDBAND
-
3343D-E5418-00-00 COVER, CHAIN CASECOVER, CHAIN CASE
-
3495827-06016-00 BOLT, FLANGEBOLT, FLANGE
-
3543D-F1116-00-00 COLLARCOLLAR
