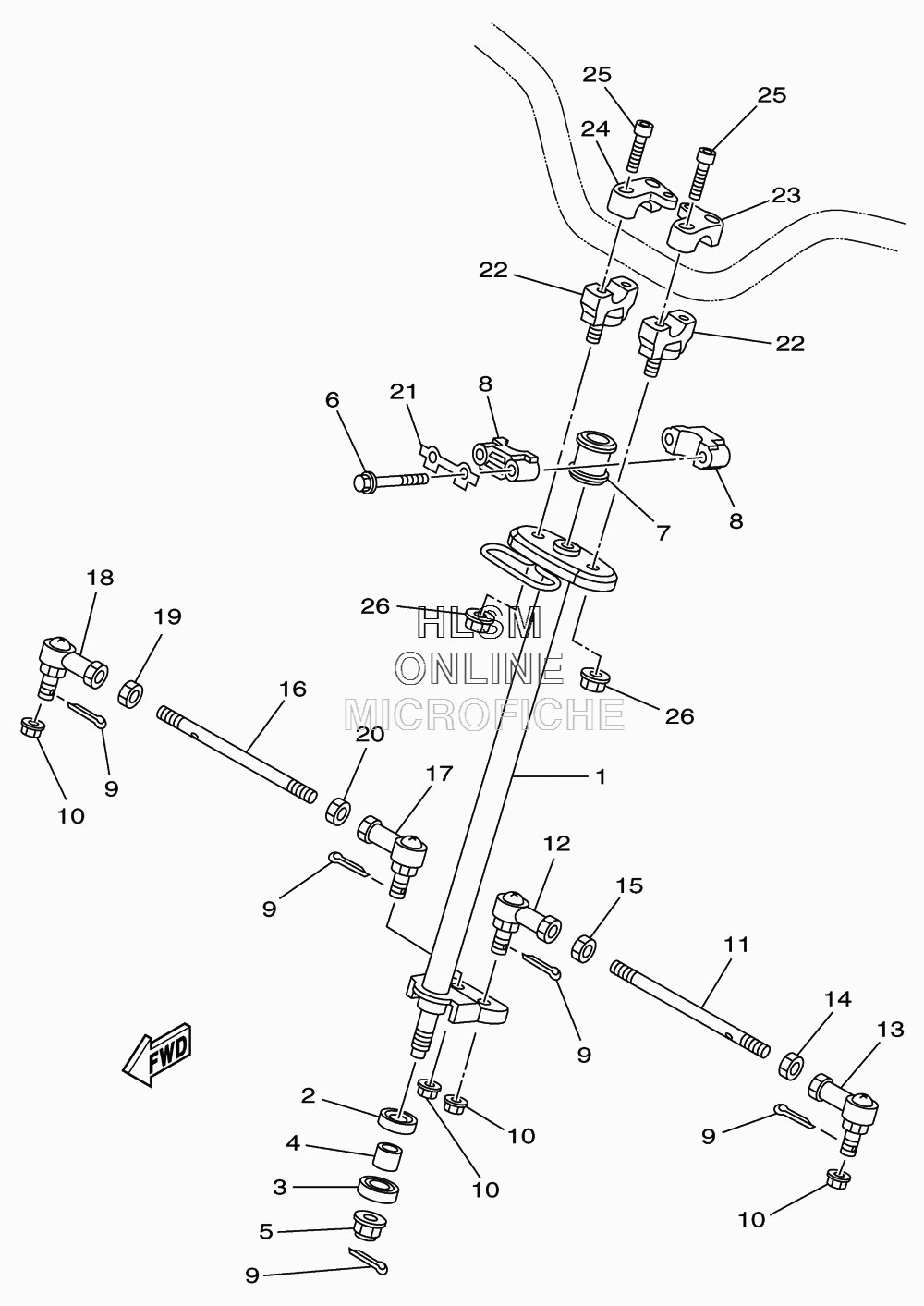

STEERING для Yamaha RAPTOR 90 - 2010 года выпуска
-
№АртикулНазвание
-
143D-F3813-01-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
243D-F3844-00-00 SEALSEAL
-
343D-F38B1-00-00 SEAL 2SEAL 2
-
443D-F38B2-00-00 SPACERSPACER
-
543D-F1535-00-00 NUT 1NUT 1
-
697022-08060-00 BOLTBOLT
-
743D-F3812-00-00 PLANE BEARING, STEERINGPLANE BEARING, STEERING
-
843D-F3872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
991401-25020-00 PIN, COTTERPIN, COTTER
-
1043D-F1635-00-00 NUT, REAR FENDERNUT, REAR FENDER
-
1143D-F3831-00-00 ROD, TIEROD, TIE
-
1243D-F3841-01-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
1343D-F3845-01-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
1443D-F1791-00-00 NUTNUT
-
1543D-F1829-00-00 NUTNUT
-
1643D-F3831-00-00 ROD, TIEROD, TIE
-
1743D-F3841-01-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
1843D-F3845-01-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
1943D-F1791-00-00 NUTNUT
-
2043D-F1829-00-00 NUTNUT
-
2143D-F3774-00-00 PLATEPLATE
-
2243D-F3442-00-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
2343D-F3441-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
2443D-F344A-00-00 HOLDER, HANDLE UPPER 1HOLDER, HANDLE UPPER 1
-
2591314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2643D-F1635-00-00 NUT, REAR FENDERNUT, REAR FENDER
