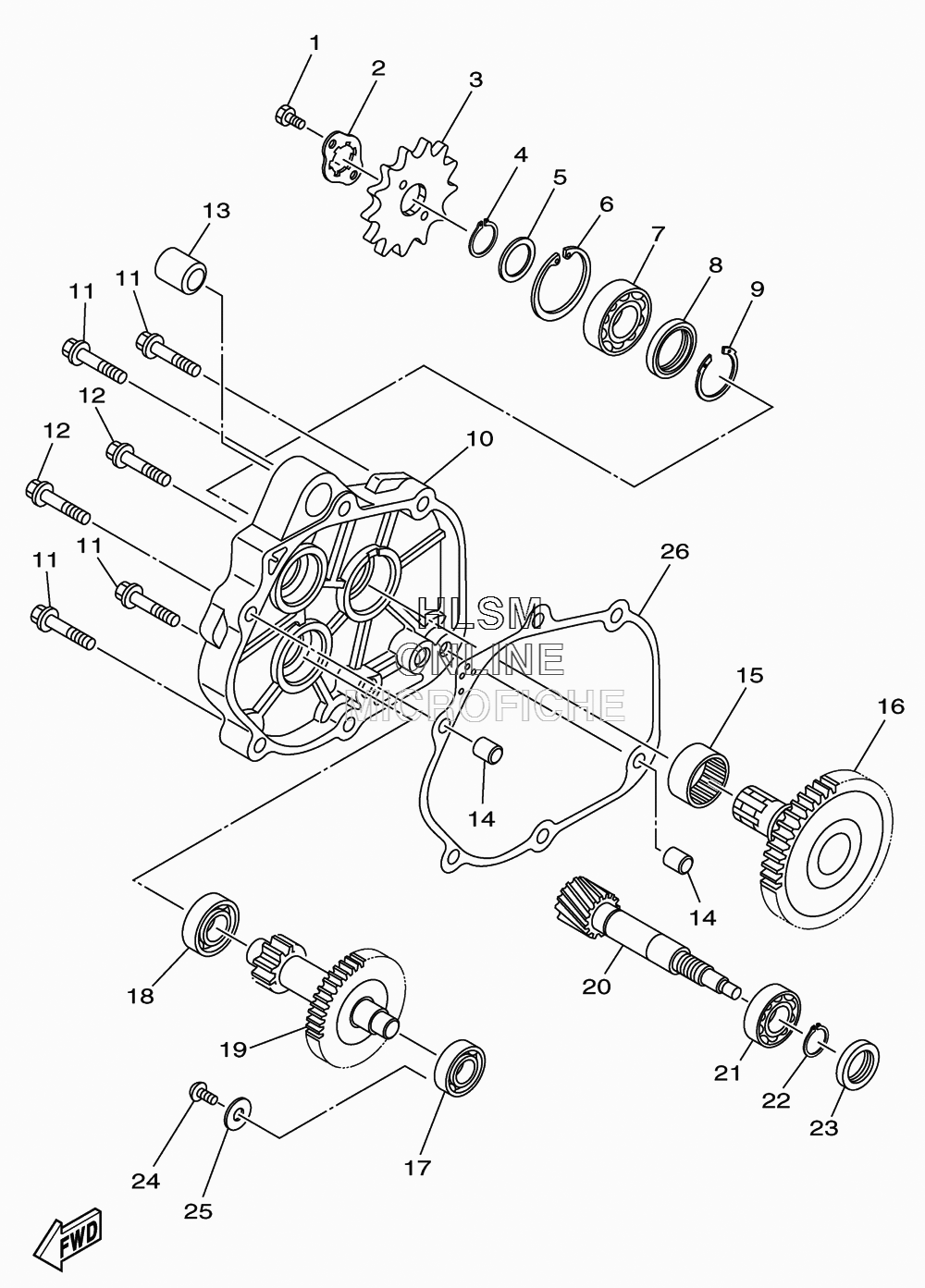

TRANSMISSION для Yamaha RAPTOR 90 - 2010 года выпуска
-
№АртикулНазвание
-
197022-06010-00 BOLTBOLT
-
243D-E7464-00-00 WASHER, LOCKWASHER, LOCK
-
343D-E7461-00-00 SPROCKET, DRIVE (13T)SPROCKET, DRIVE (13T)
-
443D-F3183-00-00 CIRCLIPCIRCLIP
-
543D-E4285-00-00 WASHERWASHER
-
643D-F5415-00-00 CIRCLIPCIRCLIP
-
743D-E7412-00-00 JOURNALJOURNAL
-
843D-E7465-00-00 OIL SEALOIL SEAL
-
943D-E2842-00-00 CIRCLIPCIRCLIP
-
1043D-E7471-00-00 PLATE, COVERPLATE, COVER
-
1195822-08035-00 BOLT, FLANGEBOLT, FLANGE
-
1295822-08040-00 BOLT, FLANGEBOLT, FLANGE
-
1343D-E5582-00-00 BUSHBUSH
-
1443D-E7498-00-00 PIN, DOWELPIN, DOWEL
-
1543D-E7413-00-00 JOURNAL 2JOURNAL 2
-
1643D-E7420-00-00 DRIVE AXLE ASSYDRIVE AXLE ASSY
-
1743D-E7422-00-00 JOURNAL 1JOURNAL 1
-
1843D-E7423-00-00 JOURNAL 2JOURNAL 2
-
1943D-E7410-00-00 MAIN AXLE COMP. (13T/41T)MAIN AXLE COMP. (13T/41T)
-
2043D-E7431-00-00 AXLE, COUNTERAXLE, COUNTER
-
2143D-E7156-00-00 BEARING 1BEARING 1
-
2243D-E5744-00-00 CIRCLIPCIRCLIP
-
2343D-E7499-00-00 OIL SEALOIL SEAL
-
2443D-E2614-00-00 SCREWSCREW
-
2543D-E2674-00-00 WASHERWASHER
-
2643D-E7518-00-00 GASKET, MIDDLE GEAR CASEGASKET, MIDDLE GEAR CASE
