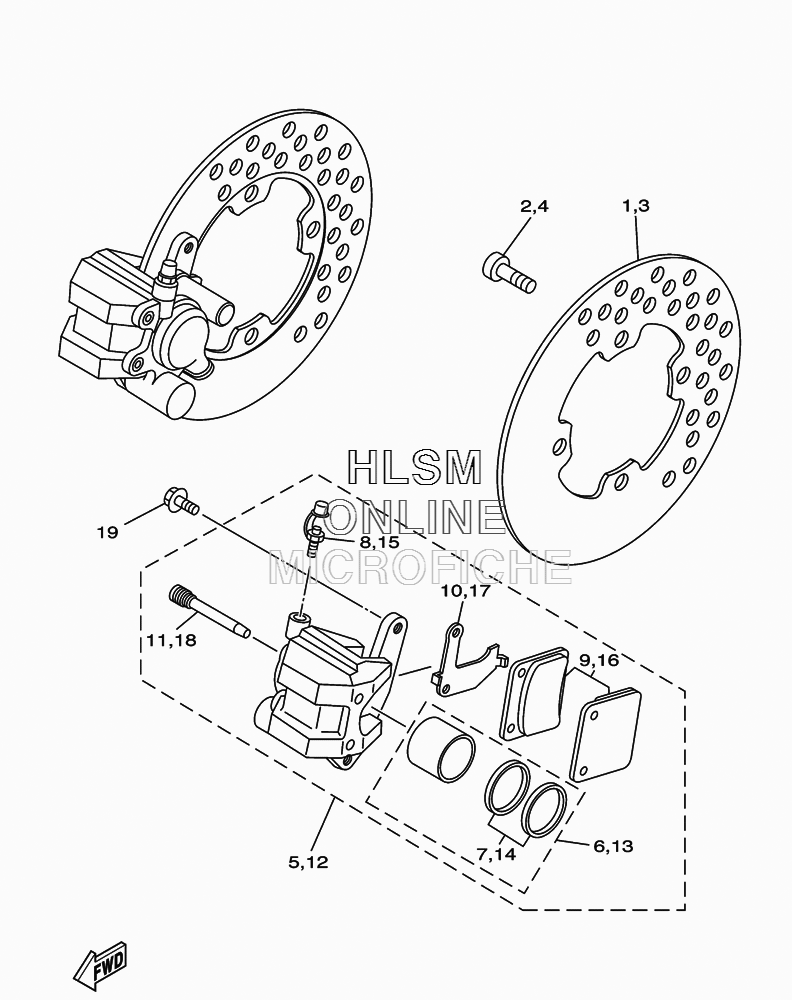

BRAKE - FRONT CALIPER для Yamaha WOLVERINE 450 4WD - 2010 года выпуска
-
№АртикулНазвание
-
15ND-F582T-00-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
290109-08082-00 BOLTBOLT
-
35ND-F582T-00-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
490109-08082-00 BOLTBOLT
-
53GD-2580T-01-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
63GD-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
73GD-W0047-00-00 CALIPER SEAL KITCALIPER SEAL KIT
-
81UY-W0048-50-00 BLEED SCREW KITBLEED SCREW KIT
-
93GD-W0045-01-00 BRAKE PAD KITBRAKE PAD KIT
-
103GD-25827-00-00 SHIM, CALIPERSHIM, CALIPER
-
113GD-25933-00-00 PIN, PADPIN, PAD
-
123GD-2580U-01-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
133GD-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
143GD-W0047-00-00 CALIPER SEAL KITCALIPER SEAL KIT
-
151UY-W0048-50-00 BLEED SCREW KITBLEED SCREW KIT
-
163GD-W0045-01-00 BRAKE PAD KITBRAKE PAD KIT
-
173GD-25828-00-00 SHIM, CALIPERSHIM, CALIPER
-
183GD-25933-00-00 PIN, PADPIN, PAD
-
1990105-08161-00 BOLT, FLANGEBOLT, FLANGE
