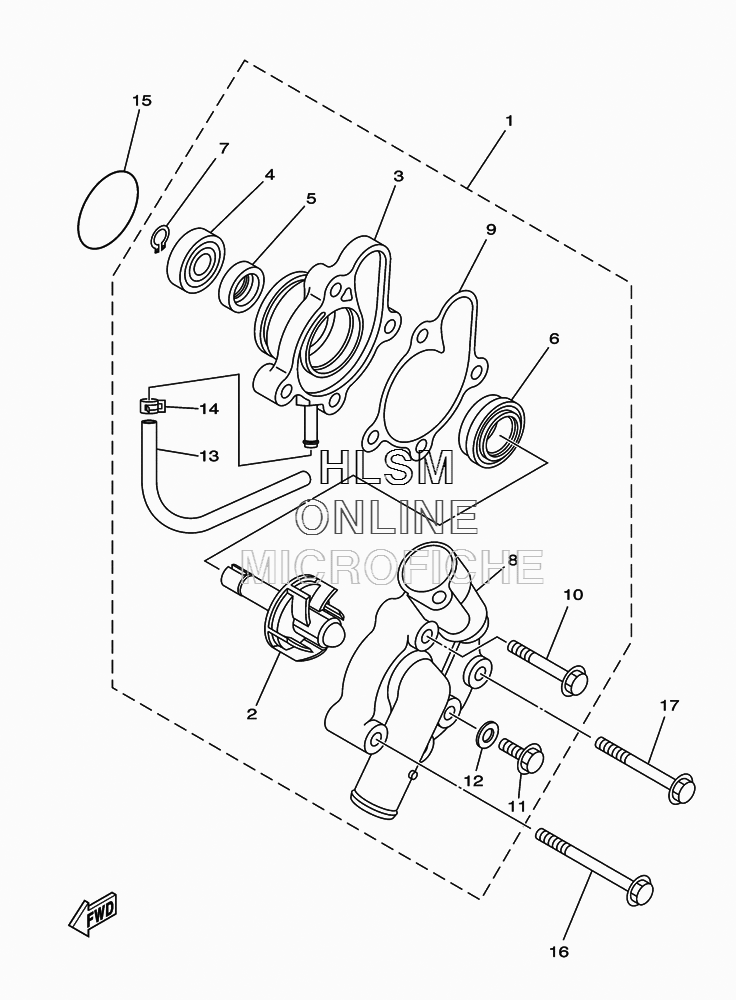

WATER PUMP ASSY для Yamaha WOLVERINE 450 4WD - 2010 года выпуска
-
№АртикулНазвание
-
15GH-12420-01-00 WATER PUMP ASSYWATER PUMP ASSY
-
25CG-12450-00-00 IMPELLER SHAFT ASSYIMPELLER SHAFT ASSY
-
35GH-12421-01-00 HOUSING, WATER PUMPHOUSING, WATER PUMP
-
493306-00006-00 BEARINGBEARING
-
593101-10090-00 OIL SEALOIL SEAL
-
611H-12438-10-00 SEAL, MECHANICALSEAL, MECHANICAL
-
799009-10400-00 CIRCLIPCIRCLIP
-
85GH-12422-00-00 COVER, HOUSINGCOVER, HOUSING
-
95GH-12428-00-00 GASKET, HOUSING COVER 2GASKET, HOUSING COVER 2
-
1090105-06086-00 BOLT, FLANGEBOLT, FLANGE
-
1195022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1290430-06014-00 GASKETGASKET
-
1390446-06001-00 HOSE (L300)HOSE (L300)
-
1490467-06194-00 CLIPCLIP
-
1593210-33133-00 O-RINGO-RING
-
1695022-06060-00 BOLT, FLANGEBOLT, FLANGE
-
1795022-06050-00 BOLT, FLANGEBOLT, FLANGE
