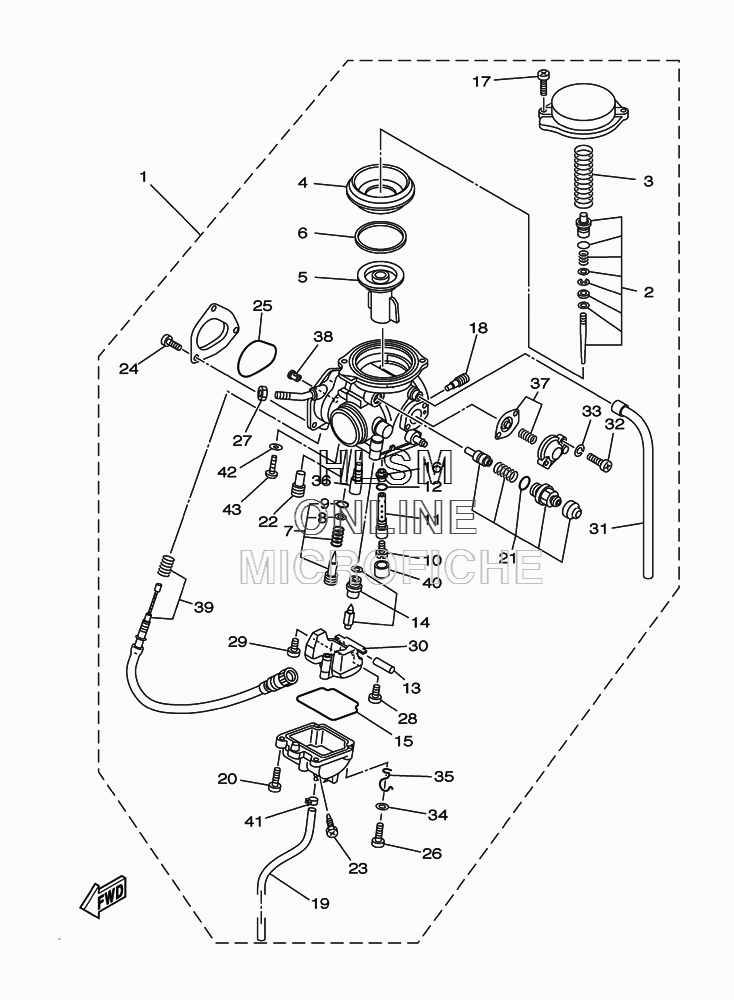

CARBURETOR для Yamaha WOLVERINE 450 4WD - 2010 года выпуска
-
№АртикулНазвание
-
15ND-E4101-11-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
25ND-1490J-10-00 NEEDLE SETNEEDLE SET
-
35DM-14933-00-00 SPRING, DIAPHRAGMSPRING, DIAPHRAGM
-
45GH-14940-10-00 DIAPHRAGM ASSYDIAPHRAGM ASSY
-
55DM-14112-00-00 VALVE, THROTTLE 1VALVE, THROTTLE 1
-
65GH-14918-10-00 RINGRING
-
75ND-14105-00-00 PILOT SCREW SETPILOT SCREW SET
-
83H1-14962-00-00 WASHERWASHER
-
93H1-14147-00-00 O-RINGO-RING
-
103G2-1423E-52-00 JET, MAIN (#131.3)JET, MAIN (#131.3)
-
115GH-14261-00-00 HOLDERHOLDER
-
12583-14561-00-00 O-RINGO-RING
-
13127-14186-00-00 PIN, FLOATPIN, FLOAT
-
145UH-14107-20-00 NEEDLE VALVE SETNEEDLE VALVE SET
-
155DM-14561-00-00 O-RINGO-RING
-
165DM-14141-40-00 NOZZLE, MAINNOZZLE, MAIN
-
174KM-14216-00-00 SCREWSCREW
-
181HX-14231-16-00 JET, MAIN (# 80)JET, MAIN (# 80)
-
194KB-14193-20-00 PIPEPIPE
-
2098580-04010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
215ND-1410A-00-00 STARTER SETSTARTER SET
-
223G2-14231-14-00 JET,PILOT AIR(#70)JET,PILOT AIR(#70)
-
233FV-14191-00-00 PLUG, DRAINPLUG, DRAIN
-
249850L-04006-00 SCREW, PAN HEADSCREW, PAN HEAD
-
255FU-E4147-00-00 O-RINGO-RING
-
2698507-04014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
27522-14161-00-00 NUT, CABLE ADJUSTINGNUT, CABLE ADJUSTING
-
2898507-04008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
291FN-14565-00-00 SCREWSCREW
-
305DM-14985-00-00 FLOATFLOAT
-
315GH-14197-00-00 PIPEPIPE
-
3298501-04014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3392902-04100-00 WASHER, SPRINGWASHER, SPRING
-
3492907-04600-00 WASHERWASHER
-
355GH-14937-00-00 CLIPCLIP
-
364KM-14142-17-00 JET, PILOT (# 17.5)JET, PILOT (# 17.5)
-
375ND-1490H-00-00 DIAPHRAGM SET 5DIAPHRAGM SET 5
-
385FU-E4155-00-00 GUIDE, CABLEGUIDE, CABLE
-
395GH-14103-01-00 THROTTLE SCREW SETTHROTTLE SCREW SET
-
405GH-14918-00-00 RINGRING
-
414XE-14937-00-00 CLIPCLIP
-
42256-14956-01-00 WASHERWASHER
-
433DM-14216-00-00 SCREWSCREW
