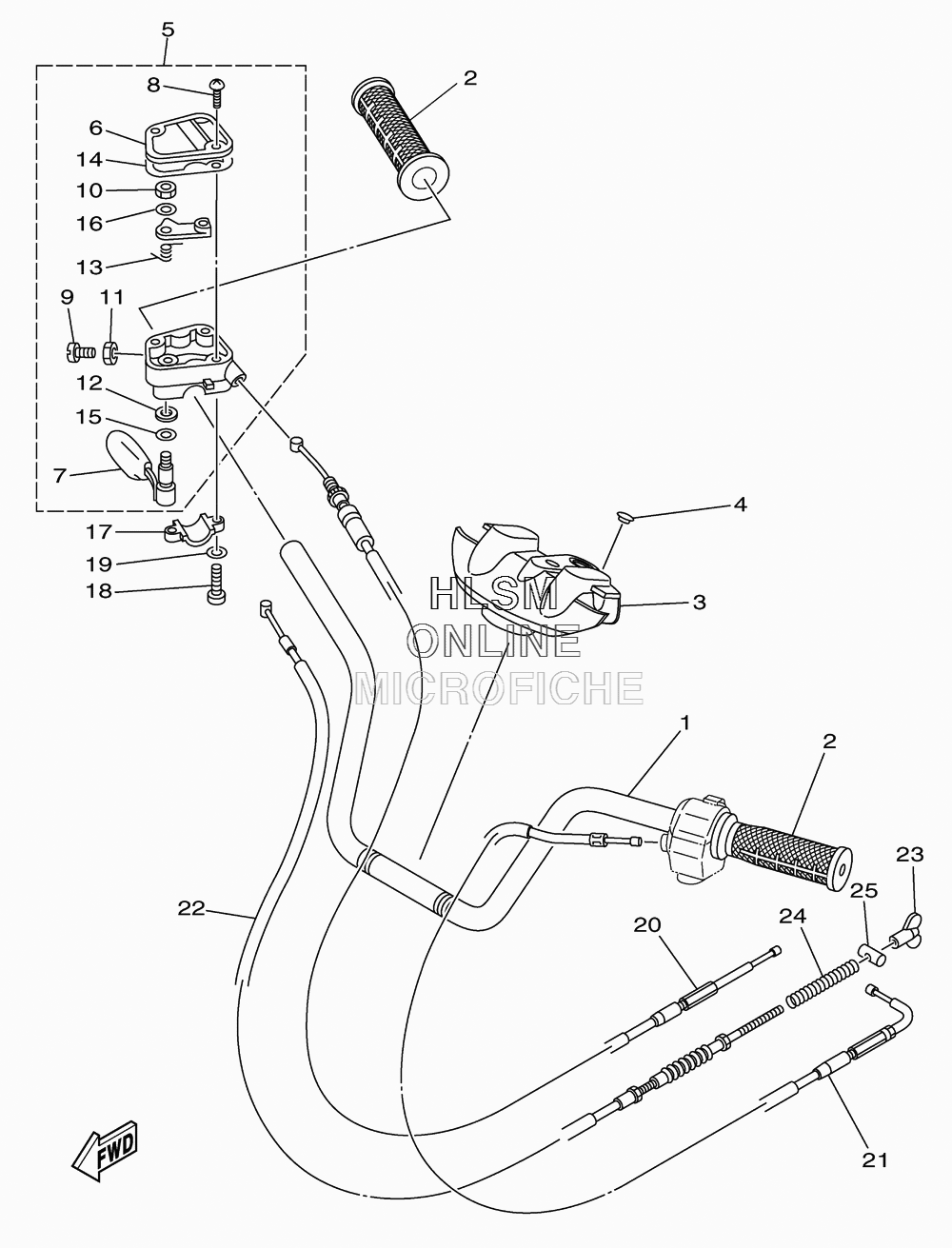

HANDLEBAR W/ CABLES для Yamaha GRIZZLY 350 2WD - 2011 года выпуска
-
№АртикулНазвание
-
15FU-F6111-10-00 HANDLEBARHANDLEBAR
-
25FU-F6241-10-00 GRIPGRIP
-
35ND-F6124-01-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
490338-14827-00 PLUGPLUG
-
54KB-26250-11-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
64KB-2628F-10-00 CAP, GEARCAP, GEAR
-
71NV-2625G-01-00 LEVER, THROTTLELEVER, THROTTLE
-
890149-04278-00 SCREWSCREW
-
998507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1095602-05100-00 NUT, UNUT, U
-
1195307-05700-00 NUTNUT
-
1293104-09025-00 OIL SEALOIL SEAL
-
131NV-26304-00-00 SPRINGSPRING
-
144KB-2628G-00-00 GASKETGASKET
-
151NV-26129-00-00 WASHERWASHER
-
161NV-26398-00-00 WASHERWASHER
-
174V4-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
1898502-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1992902-05600-00 WASHER, PLATEWASHER, PLATE
-
205GH-26311-10-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
215VH-F6331-00-00 CABLE, STARTER 1CABLE, STARTER 1
-
225TE-26341-00-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
2320E-26343-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
2490501-10782-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2590249-12008-00 PINPIN
