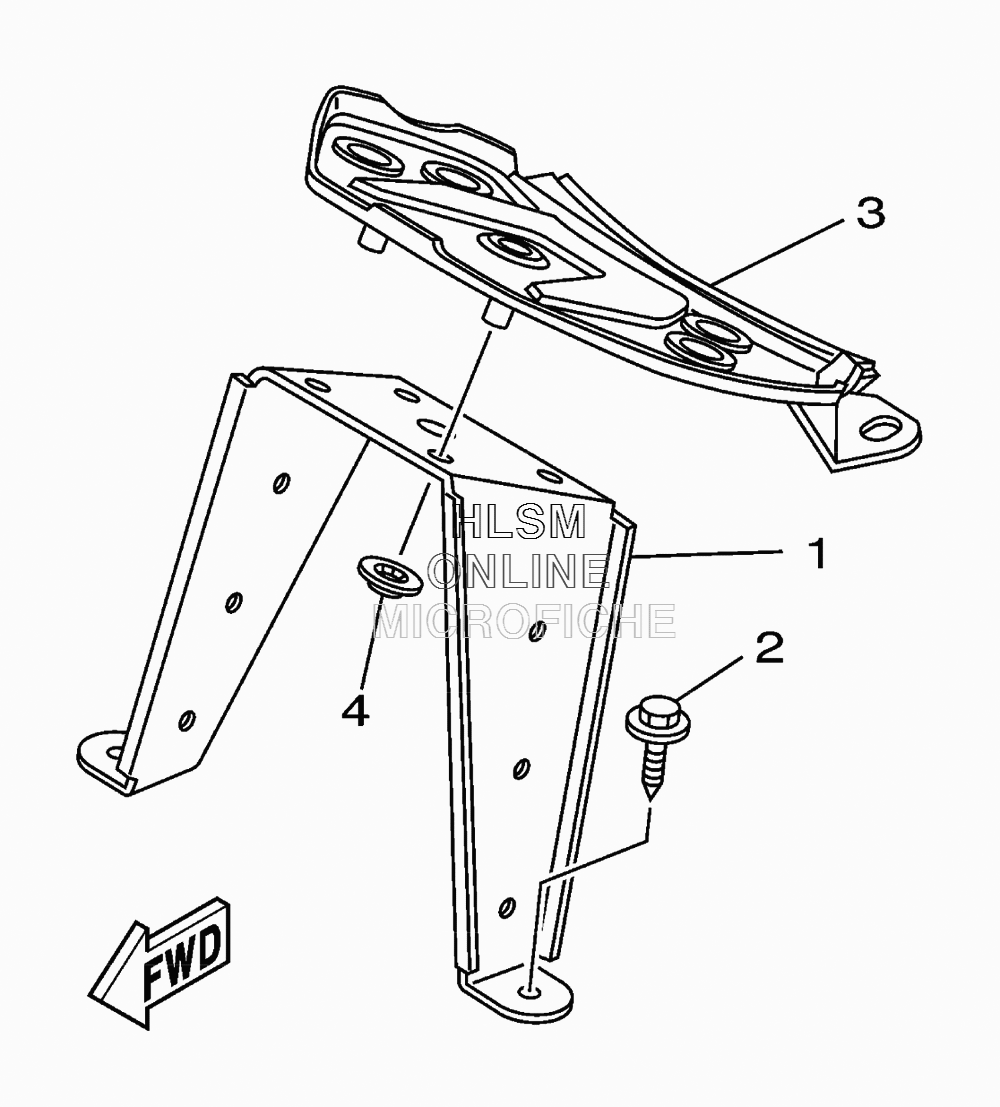

INSTRUMENT PANEL - BRACKET для Yamaha GRIZZLY 350 2WD - 2011 года выпуска
-
№АртикулНазвание
-
15UH-F5921-00-00 BRACKET, SUPPORTBRACKET, SUPPORT
-
290119-06157-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
35UH-F837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
490183-08800-00 NUT, SPRINGNUT, SPRING
