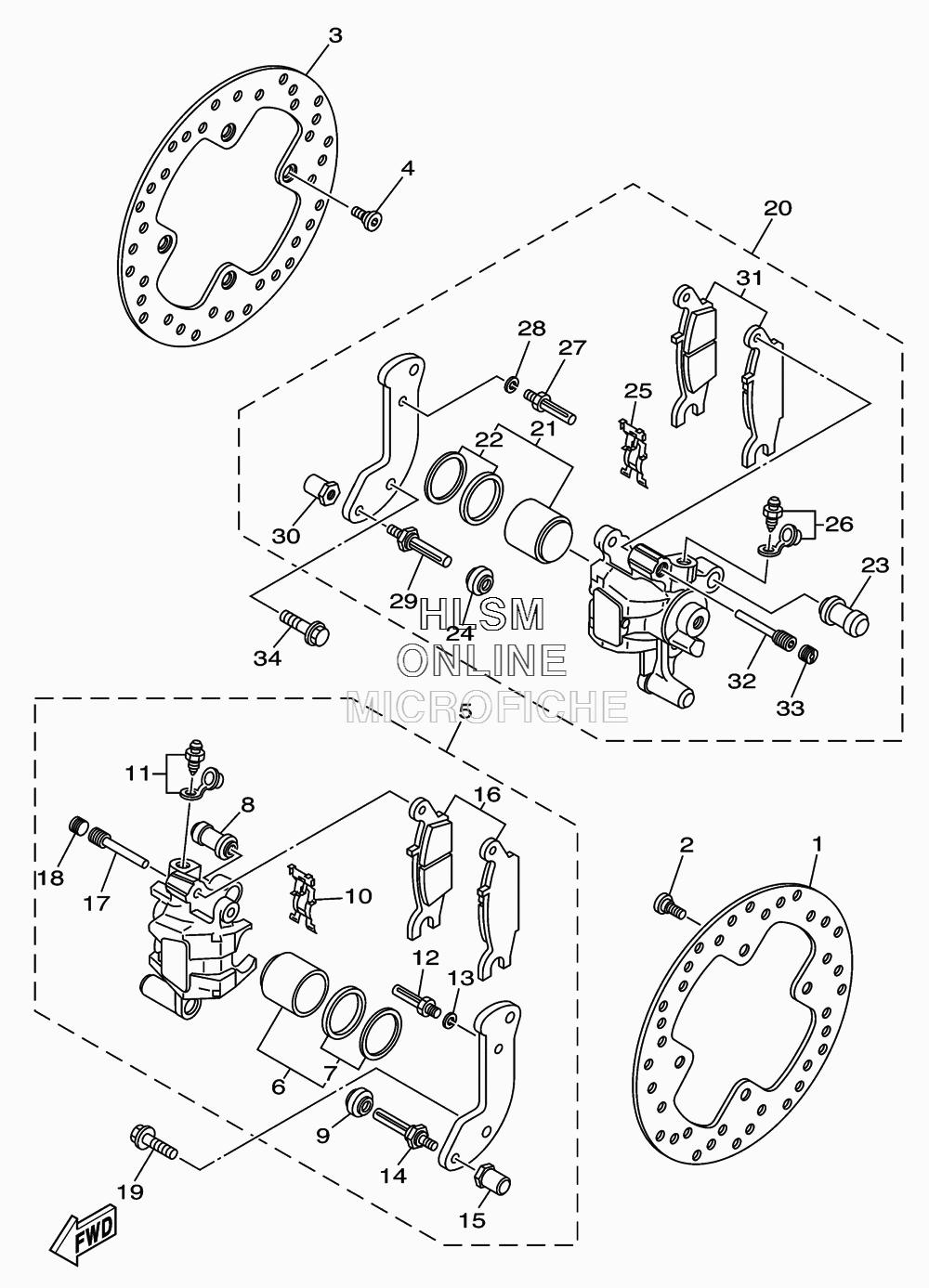

BRAKE - REAR CALIPER для Yamaha GRIZZLY 700 4WD HUNTER - 2011 года выпуска
-
№АртикулНазвание
-
13B4-2582V-00-00 DISC, REAR BRAKE 1DISC, REAR BRAKE 1
-
290109-08101-00 BOLTBOLT
-
33B4-2582V-00-00 DISC, REAR BRAKE 1DISC, REAR BRAKE 1
-
490109-08101-00 BOLTBOLT
-
53B4-2580V-10-00 CALIPER ASSY, REAR 1CALIPER ASSY, REAR 1
-
63B4-W0057-20-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
73B4-W0047-00-00 CALIPER SEAL KITCALIPER SEAL KIT
-
81UY-25937-51-00 BOOT 2BOOT 2
-
93JD-25917-00-00 BOOT, CALIPERBOOT, CALIPER
-
105DH-25919-50-00 SUPPORT, PADSUPPORT, PAD
-
111UY-W0048-50-00 BLEED SCREW KITBLEED SCREW KIT
-
121UY-25926-51-00 BOLTBOLT
-
131UY-25938-51-00 WASHER, SPRINGWASHER, SPRING
-
143JD-25926-00-00 BOLTBOLT
-
153JD-25961-00-00 NUTNUT
-
163B4-W0046-00-00 BRAKE PAD KIT 2BRAKE PAD KIT 2
-
173GD-25933-00-00 PIN, PADPIN, PAD
-
188CR-25926-00-00 BOLTBOLT
-
1990105-08184-00 BOLT, FLANGEBOLT, FLANGE
-
203B4-2580W-10-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
213B4-W0057-20-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
223B4-W0047-00-00 CALIPER SEAL KITCALIPER SEAL KIT
-
231UY-25937-51-00 BOOT 2BOOT 2
-
243JD-25917-00-00 BOOT, CALIPERBOOT, CALIPER
-
255DH-25919-50-00 SUPPORT, PADSUPPORT, PAD
-
261UY-W0048-50-00 BLEED SCREW KITBLEED SCREW KIT
-
271UY-25926-51-00 BOLTBOLT
-
281UY-25938-51-00 WASHER, SPRINGWASHER, SPRING
-
293JD-25926-00-00 BOLTBOLT
-
303JD-25961-00-00 NUTNUT
-
313B4-W0046-10-00 BRAKE PAD KIT 2BRAKE PAD KIT 2
-
323GD-25933-00-00 PIN, PADPIN, PAD
-
338CR-25926-00-00 BOLTBOLT
-
3490105-08184-00 BOLT, FLANGEBOLT, FLANGE
