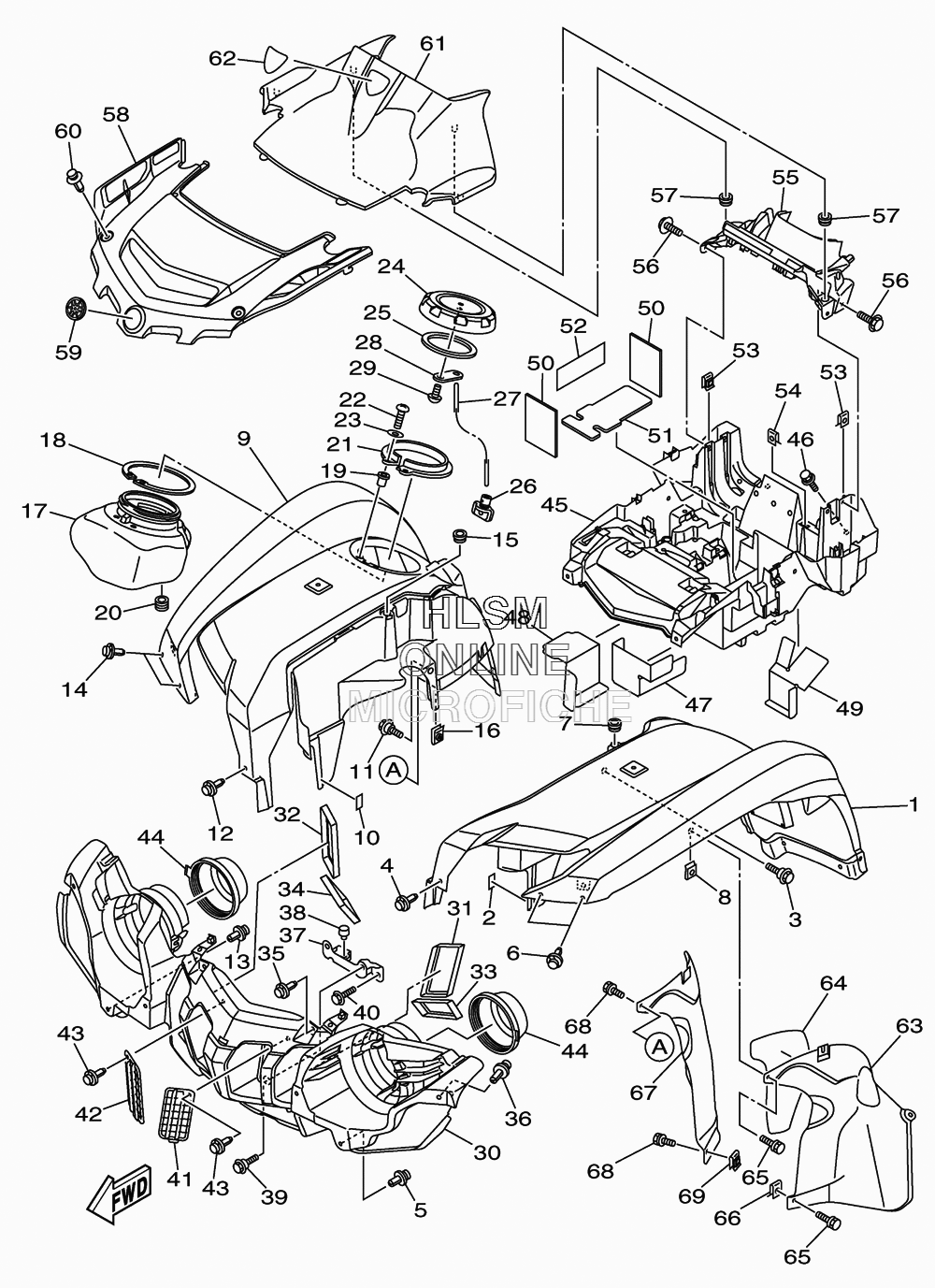

FENDER - FRONT для Yamaha GRIZZLY 700 4WD HUNTER - 2011 года выпуска
-
№АртикулНазвание
-
13B4-W2151-D1-00 FRONT FENDER COMP.FRONT FENDER COMP.
-
23B4-21541-00-00 DAMPER 1DAMPER 1
-
390109-06172-00 BOLTBOLT
-
490269-07012-00 RIVETRIVET
-
590269-07012-00 RIVETRIVET
-
690269-07012-00 RIVETRIVET
-
790480-13398-00 GROMMETGROMMET
-
890183-06053-00 NUT, SPRINGNUT, SPRING
-
93B4-21556-D0-00 FENDER, FRONT 2FENDER, FRONT 2
-
103B4-21541-00-00 DAMPER 1DAMPER 1
-
1190109-06172-00 BOLTBOLT
-
1290269-07012-00 RIVETRIVET
-
1390269-07012-00 RIVETRIVET
-
1490269-07012-00 RIVETRIVET
-
1590480-13398-00 GROMMETGROMMET
-
1690183-06053-00 NUT, SPRINGNUT, SPRING
-
173B4-2838K-00-00 BOX 1BOX 1
-
183B4-2838M-00-00 SEAL, BOX 1SEAL, BOX 1
-
1990179-05523-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
2090480-13004-00 GROMMETGROMMET
-
213B4-2839N-00-00 HOLDERHOLDER
-
2298502-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2392902-05600-00 WASHER, PLATEWASHER, PLATE
-
243B4-2151B-01-00 CAPCAP
-
253B4-28307-00-00 SEALSEAL
-
263B4-215A1-00-00 PLUG, DRAINPLUG, DRAIN
-
273B4-2845L-00-00 STOPPER, OPENSTOPPER, OPEN
-
283B4-28487-00-00 PLATE 2PLATE 2
-
2997702-50512-00 SCREW, TAPPINGSCREW, TAPPING
-
303B4-28309-01-00 GRILLE, FRONTGRILLE, FRONT
-
313B4-28217-00-00 DAMPER 1DAMPER 1
-
323B4-28227-00-00 DAMPER 2DAMPER 2
-
333B4-28237-00-00 DAMPER 3DAMPER 3
-
343B4-28247-00-00 DAMPER 4DAMPER 4
-
3590269-07010-00 RIVETRIVET
-
3690269-07012-00 RIVETRIVET
-
373B4-28332-00-00 STAY, LEG SHIELDSTAY, LEG SHIELD
-
385RU-24768-00-00 STOPPERSTOPPER
-
3990109-06172-00 BOLTBOLT
-
4095802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
413B4-2837N-00-00 GRILL, AIR INTAKE 1GRILL, AIR INTAKE 1
-
423B4-2837R-00-00 GRILL, AIR INTAKE 2GRILL, AIR INTAKE 2
-
4390269-07077-00 RIVETRIVET
-
443B4-28349-00-00 CAPCAP
-
4528P-8212B-01-00 BOX, BATTERY 1BOX, BATTERY 1
-
4690119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4728P-8253E-00-00 INSULATOR 1INSULATOR 1
-
4828P-8253F-00-00 INSULATOR 2INSULATOR 2
-
4928P-8254E-00-00 INSULATORINSULATOR
-
503B4-8233W-10-00 INSU.INSU.
-
513B4-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
5234D-82176-00-00 DAMPERDAMPER
-
5390183-06053-00 NUT, SPRINGNUT, SPRING
-
5490183-05008-00 NUT, SPRINGNUT, SPRING
-
553B4-2837L-01-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
5690119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5790480-13567-00 GROMMETGROMMET
-
583B4-23391-01-00 PANEL, FRONTPANEL, FRONT
-
595KM-2175B-00-00 TUNING FORK MARKTUNING FORK MARK
-
6090269-07010-00 RIVETRIVET
-
613B4-28313-01-00 LIDLID
-
623B4-26232-01-00 EMBLEM 3DEMBLEM 3D
-
633B4-21552-01-00 FENDER, INNERFENDER, INNER
-
643B4-21575-10-00 SEAL 1SEAL 1
-
6590119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6690183-06053-00 NUT, SPRINGNUT, SPRING
-
673B4-21553-01-00 FENDER, INNER 2FENDER, INNER 2
-
6890119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6990183-06053-00 NUT, SPRINGNUT, SPRING
