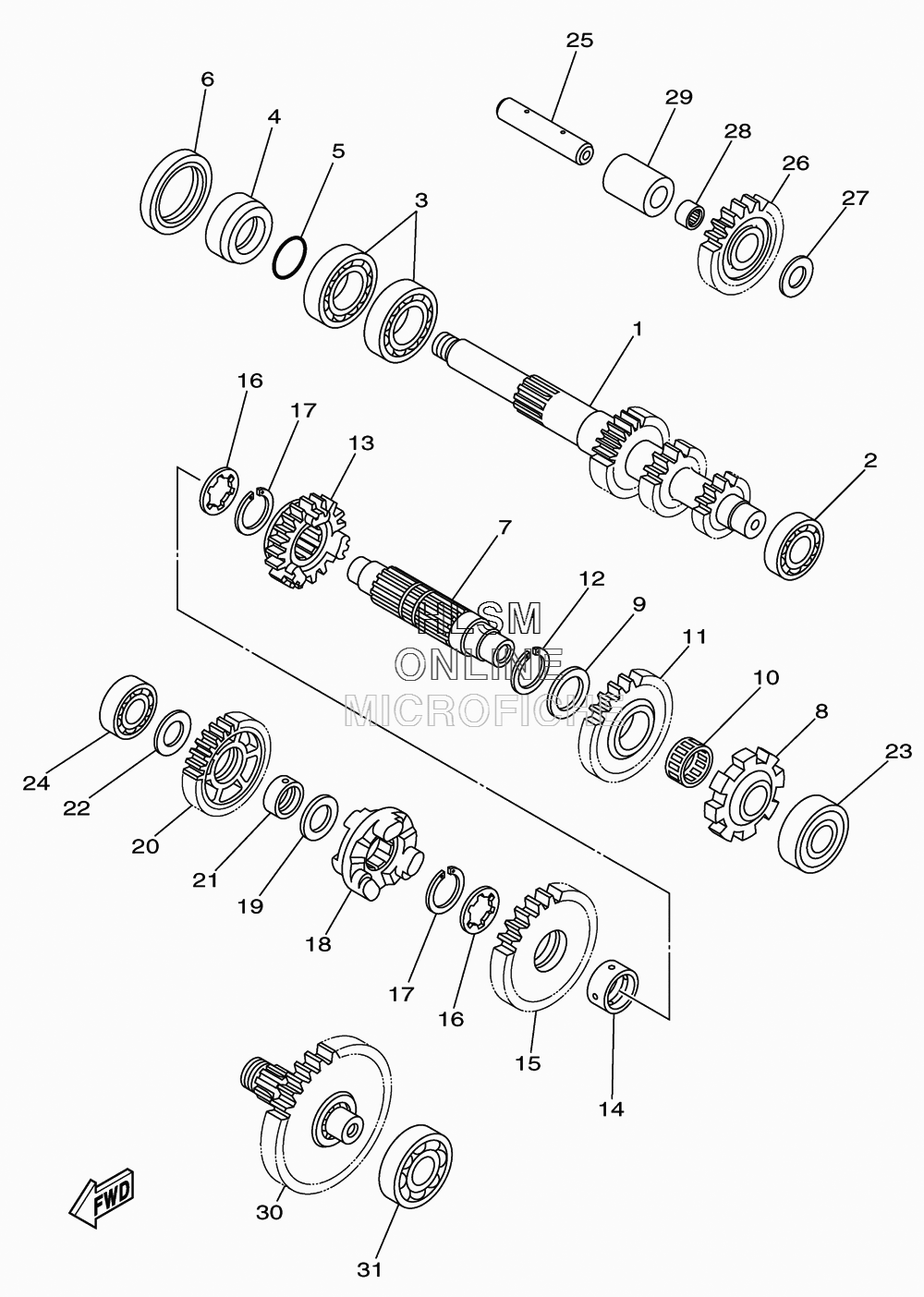

TRANSMISSION для Yamaha GRIZZLY 700 4WD HUNTER - 2011 года выпуска
-
№АртикулНазвание
-
13B4-17681-10-00 SHAFT, SECONDARYSHAFT, SECONDARY
-
293306-00426-00 BEARINGBEARING
-
393306-07801-00 BEARINGBEARING
-
490387-26001-00 COLLARCOLLAR
-
593210-26001-00 O-RINGO-RING
-
693102-42004-00 OIL SEALOIL SEAL
-
73B4-17421-00-00 AXLE, DRIVEAXLE, DRIVE
-
83B4-17473-00-00 STOPPERSTOPPER
-
990201-25290-00 WASHER, PLATEWASHER, PLATE
-
1093310-32590-00 BEARINGBEARING
-
113B4-17253-00-00 GEAR, REVERSE WHEEL 2 (28T)GEAR, REVERSE WHEEL 2 (28T)
-
1293440-25084-00 CIRCLIPCIRCLIP
-
133B4-17582-00-00 GEAR, MIDDLE DRIVE (21T)GEAR, MIDDLE DRIVE (21T)
-
1490387-250R3-00 COLLARCOLLAR
-
153B4-17233-00-00 GEAR, LOW WHEEL (31T)GEAR, LOW WHEEL (31T)
-
1690214-22007-00 WASHER, CLAWWASHER, CLAW
-
1793440-25084-00 CIRCLIPCIRCLIP
-
183B4-17285-00-00 CLUTCH, DOGCLUTCH, DOG
-
1990201-20028-00 WASHER, PLATEWASHER, PLATE
-
203B4-17223-10-00 GEAR, HIGH WHEEL (29T)GEAR, HIGH WHEEL (29T)
-
2190387-20021-00 COLLARCOLLAR
-
2290201-170U8-00 WASHER, PLATEWASHER, PLATE
-
2393306-20464-00 BEARINGBEARING
-
2493306-20309-00 BEARINGBEARING
-
253B4-17432-01-00 AXLE, IDLEAXLE, IDLE
-
2616B-17243-00-00 GEAR, REVERSE WHEEL 1(23T)GEAR, REVERSE WHEEL 1(23T)
-
2790201-15029-00 WASHER, PLATEWASHER, PLATE
-
2893310-31576-00 BEARINGBEARING
-
2990387-15017-00 COLLARCOLLAR
-
303B4-17520-00-00 DRIVE PINION ASSY (41T)DRIVE PINION ASSY (41T)
-
3193306-30438-00 BEARINGBEARING
