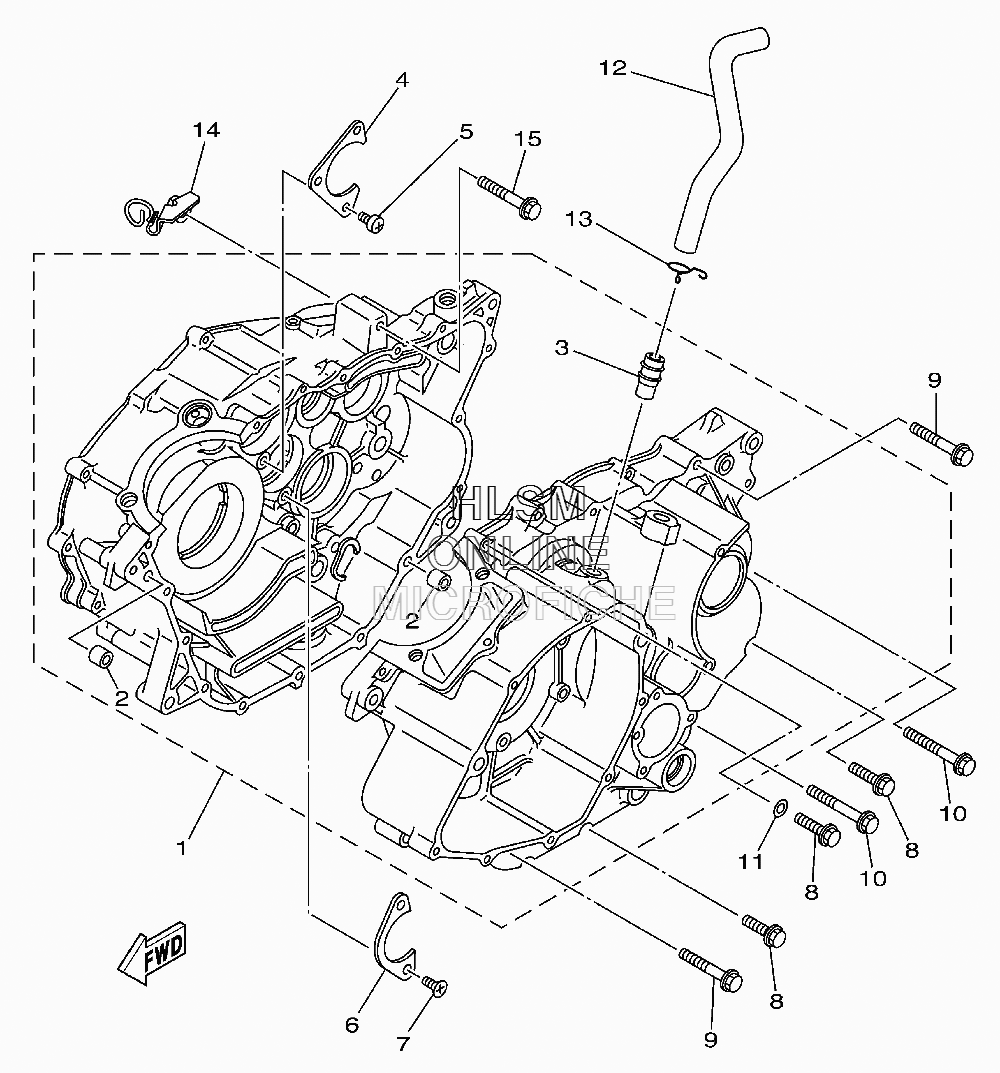

CRANKCASE для Yamaha RAPTOR 350 - 2012 года выпуска
-
№АртикулНазвание
-
13GD-15100-03-00 CRANKCASE ASSYCRANKCASE ASSY
-
299530-12016-00 ...PIN, DOWEL...PIN, DOWEL
-
3371-11167-01-00 ...PIPE, BREATHER 2...PIPE, BREATHER 2
-
43R4-15381-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
598502-06012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
61UY-15383-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
798702-06016-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
895022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
995022-06050-00 BOLT, FLANGEBOLT, FLANGE
-
1095022-06060-00 BOLT, FLANGEBOLT, FLANGE
-
1190430-06014-00 GASKETGASKET
-
125YT-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
1390467-140A4-00 CLIPCLIP
-
145YT-15441-10-00 HOLDER, CLUTCH CABLEHOLDER, CLUTCH CABLE
-
1595802-08045-00 BOLT, FLANGEBOLT, FLANGE
