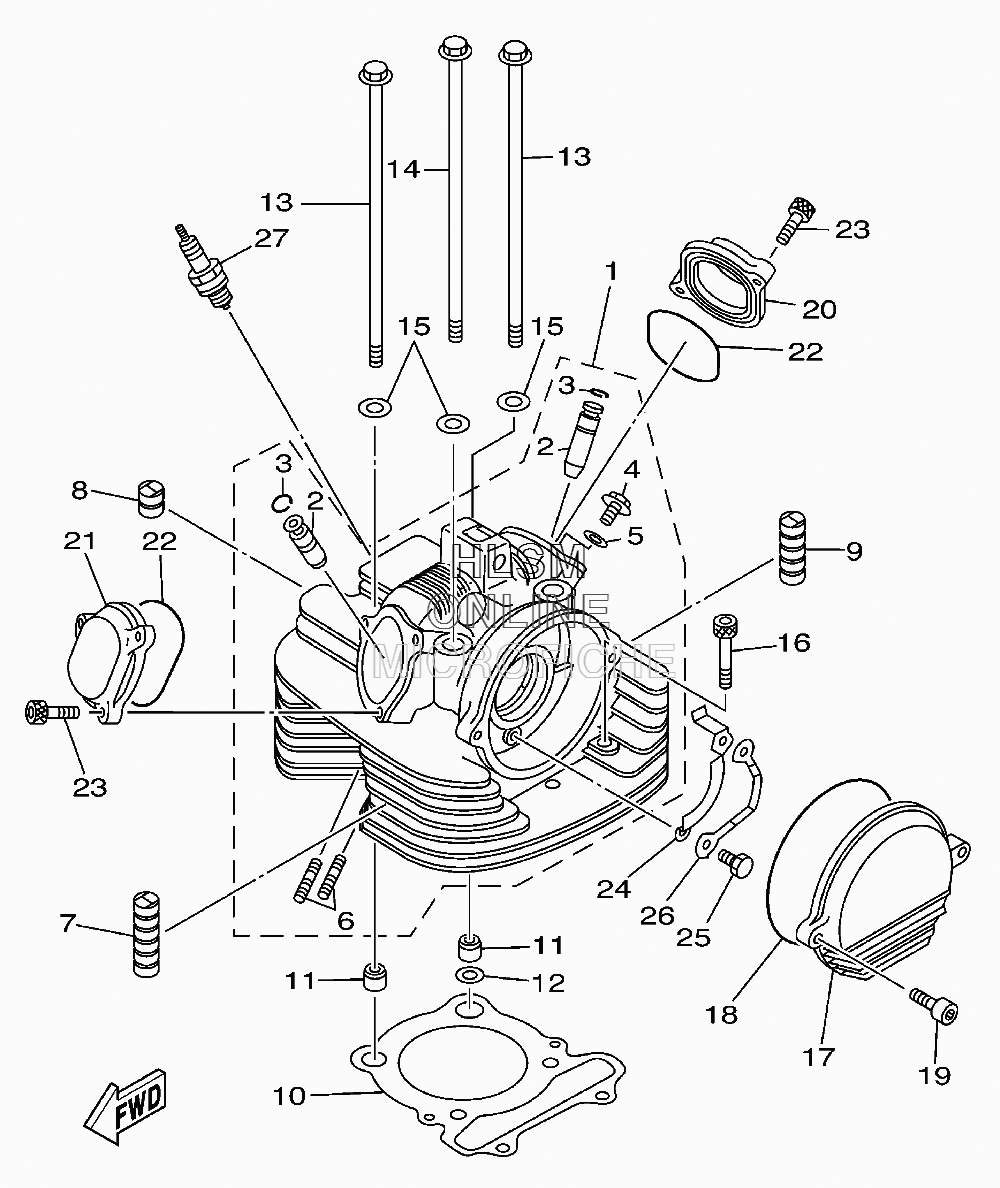

CYLINDER HEAD для Yamaha RAPTOR 350 - 2012 года выпуска
-
№АртикулНазвание
-
15YT-11101-10-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
23Y1-11133-11-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
393440-12052-00 ...CIRCLIP...CIRCLIP
-
490401-06001-00 ...BOLT, UNION...BOLT, UNION
-
590430-06192-00 ...GASKET...GASKET
-
690116-06041-00 ...BOLT, STUD...BOLT, STUD
-
73Y1-11127-00-00 ABSORBER 3ABSORBER 3
-
831G-11161-00-00 ABSORBER 1ABSORBER 1
-
931G-11127-00-00 ABSORBER 3ABSORBER 3
-
101UY-11181-01-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1199530-14016-00 PIN, DOWELPIN, DOWEL
-
1290430-14240-00 GASKETGASKET
-
1390105-10137-00 BOLT, FLANGEBOLT, FLANGE
-
1490105-10136-00 BOLT, FLANGEBOLT, FLANGE
-
1590201-10128-00 WASHER, PLATEWASHER, PLATE
-
1691312-08050-00 BOLTBOLT
-
175NF-11185-00-00 COVER, CYLINDER HEAD SIDE 3COVER, CYLINDER HEAD SIDE 3
-
1893211-06635-00 O-RINGO-RING
-
1991312-06025-00 BOLTBOLT
-
202NL-11186-12-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
212NL-11187-11-00 COVER, CYLINDER HEAD SIDE 3COVER, CYLINDER HEAD SIDE 3
-
2293210-57634-00 O-RINGO-RING
-
2391312-06020-00 BOLTBOLT
-
243Y1-1111F-00-00 PLATEPLATE
-
2597002-06012-00 BOLTBOLT
-
2690215-06162-00 WASHER, LOCKWASHER, LOCK
-
27DR8-EA000-00-00 PLUG, SPARK (NGK DR8EA)PLUG, SPARK (NGK DR8EA)
