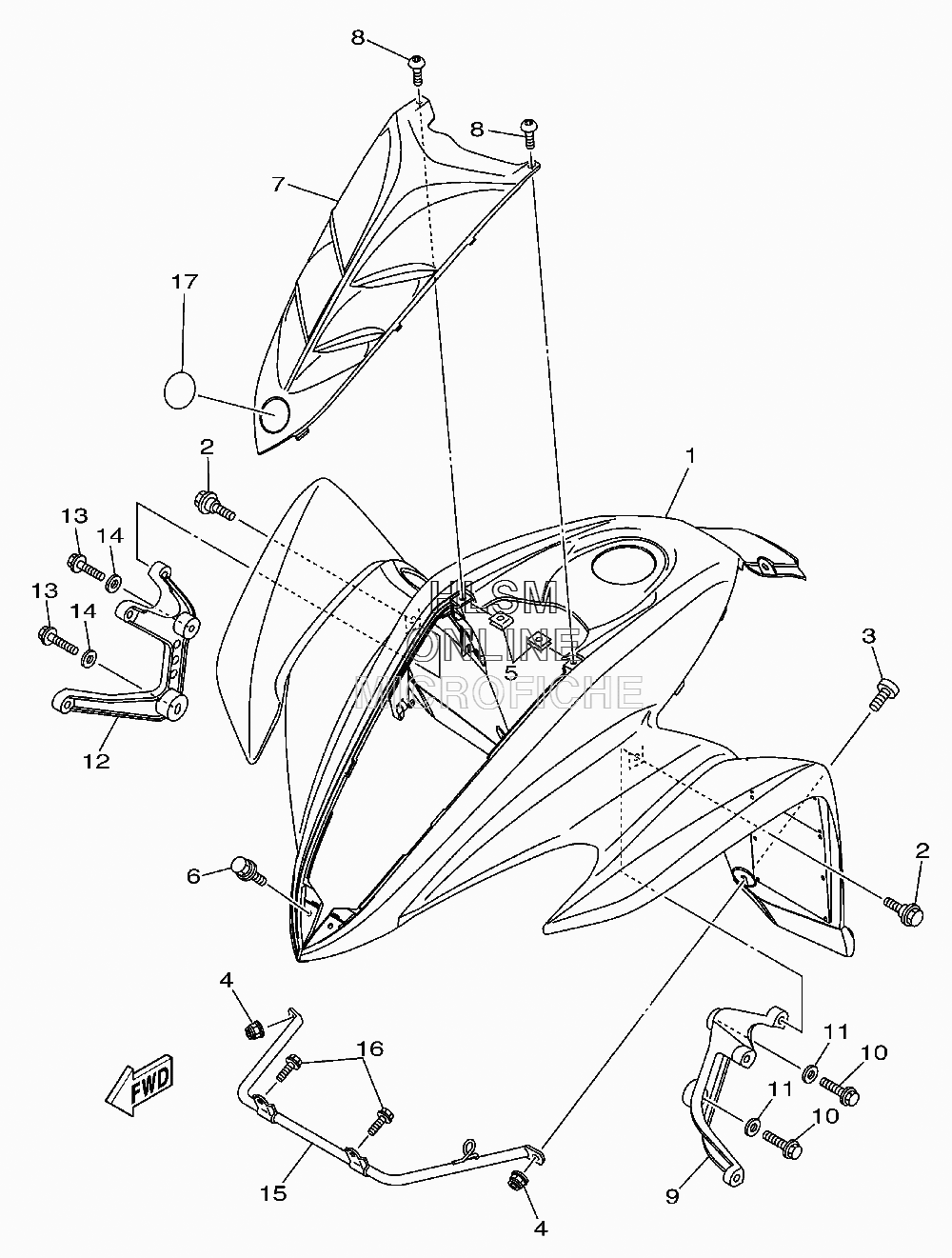

FENDER - FRONT для Yamaha RAPTOR 350 - 2012 года выпуска
-
№АртикулНазвание
-
15YT-W2151-12-00 FRONT FENDER COMP.FRONT FENDER COMP.
-
290109-06172-00 BOLTBOLT
-
390154-06032-00 SCREW, BINDINGSCREW, BINDING
-
495602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
590183-05008-00 NUT, SPRINGNUT, SPRING
-
690119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
75YT-23391-40-00 PANEL, FRONTPANEL, FRONT
-
890111-05044-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
95YT-21513-00-00 STAY, FENDER 1STAY, FENDER 1
-
1095812-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1190201-06089-00 WASHER, PLATEWASHER, PLATE
-
125YT-21514-00-00 STAY, FENDER 2STAY, FENDER 2
-
1395812-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1490201-06089-00 WASHER, PLATEWASHER, PLATE
-
155YT-21562-00-00 STAY, FENDER 3STAY, FENDER 3
-
1695822-06010-00 BOLT, FLANGEBOLT, FLANGE
-
178AC-2414B-01-00 EMBLEMEMBLEM
