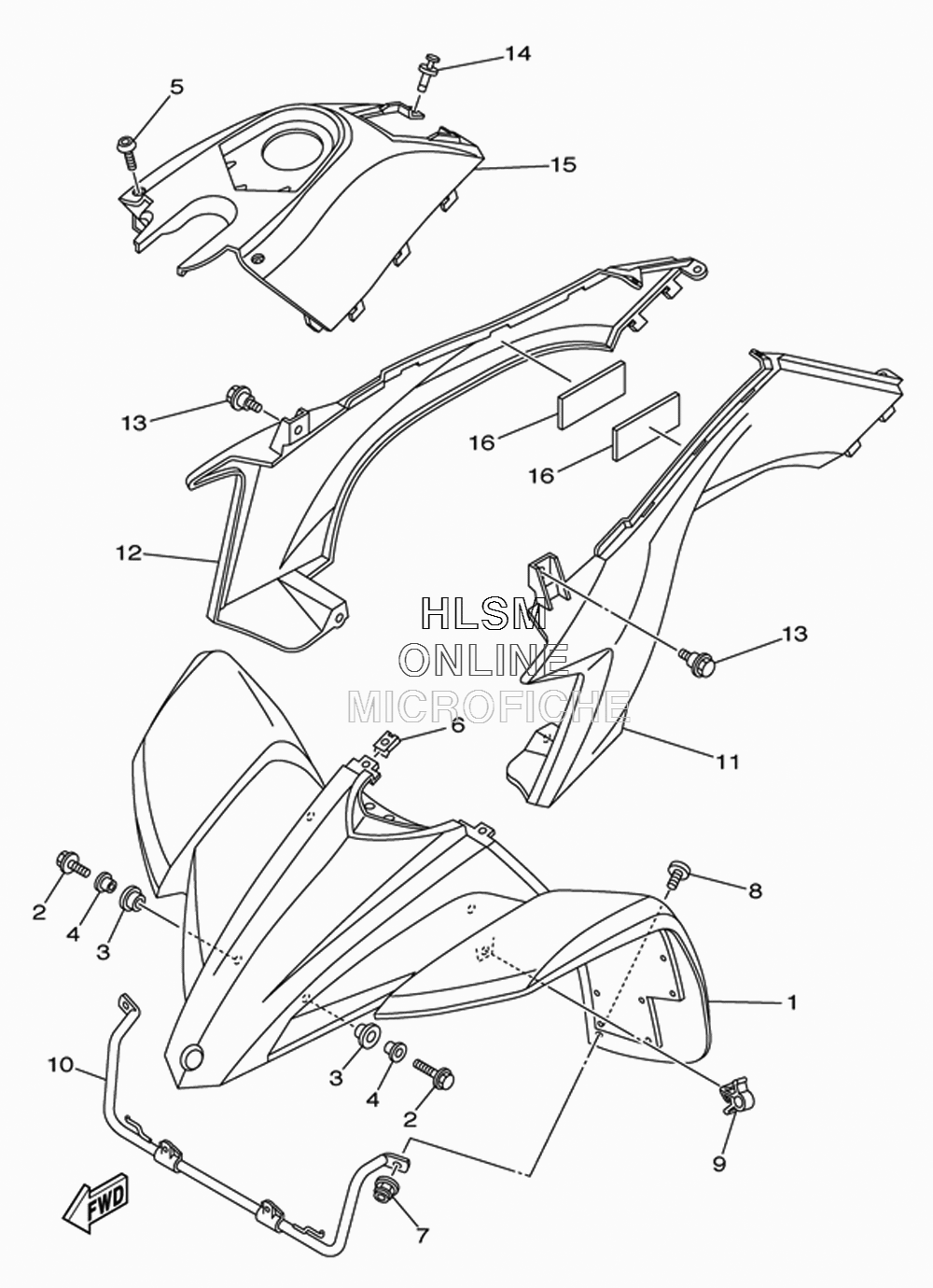

FENDER - FRONT для Yamaha YFZ 450 - 2012 года выпуска
-
№АртикулНазвание
-
15TG-W2151-21-00 FRONT FENDER COMP. (BLACK METALLIC J)FRONT FENDER COMP. (BLACK METALLIC J)
-
15TG-W2151-11-00 FRONT FENDER COMP. (BLUISH WHITE SOLID 1)FRONT FENDER COMP. (BLUISH WHITE SOLID 1)
-
295802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
390480-15006-00 GROMMETGROMMET
-
490387-061F9-00 COLLARCOLLAR
-
590110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
690183-05008-00 NUT, SPRINGNUT, SPRING
-
795602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
890111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
990464-48174-00 CLAMPCLAMP
-
105TG-21513-10-00 STAY, FENDER 1STAY, FENDER 1
-
115TG-21711-20-00 COVER, SIDE 1 (BLACK METALLIC J)COVER, SIDE 1 (BLACK METALLIC J)
-
115TG-21711-10-00 COVER, SIDE 1 (BLUISH WHITE SOLID 1)COVER, SIDE 1 (BLUISH WHITE SOLID 1)
-
125TG-21721-20-00 COVER, SIDE 2 (BLACK METALLIC J)COVER, SIDE 2 (BLACK METALLIC J)
-
125TG-21721-10-00 COVER, SIDE 2 (BLUISH WHITE SOLID 1)COVER, SIDE 2 (BLUISH WHITE SOLID 1)
-
1390109-06172-00 BOLTBOLT
-
1490269-06002-00 RIVETRIVET
-
155TG-2171A-20-00 COVER, TOP (BLACK METALLIC J)COVER, TOP (BLACK METALLIC J)
-
155TG-2171A-10-00 COVER, TOP (BLUISH WHITE SOLID 1)COVER, TOP (BLUISH WHITE SOLID 1)
-
165TG-21541-00-00 DAMPER 1DAMPER 1
