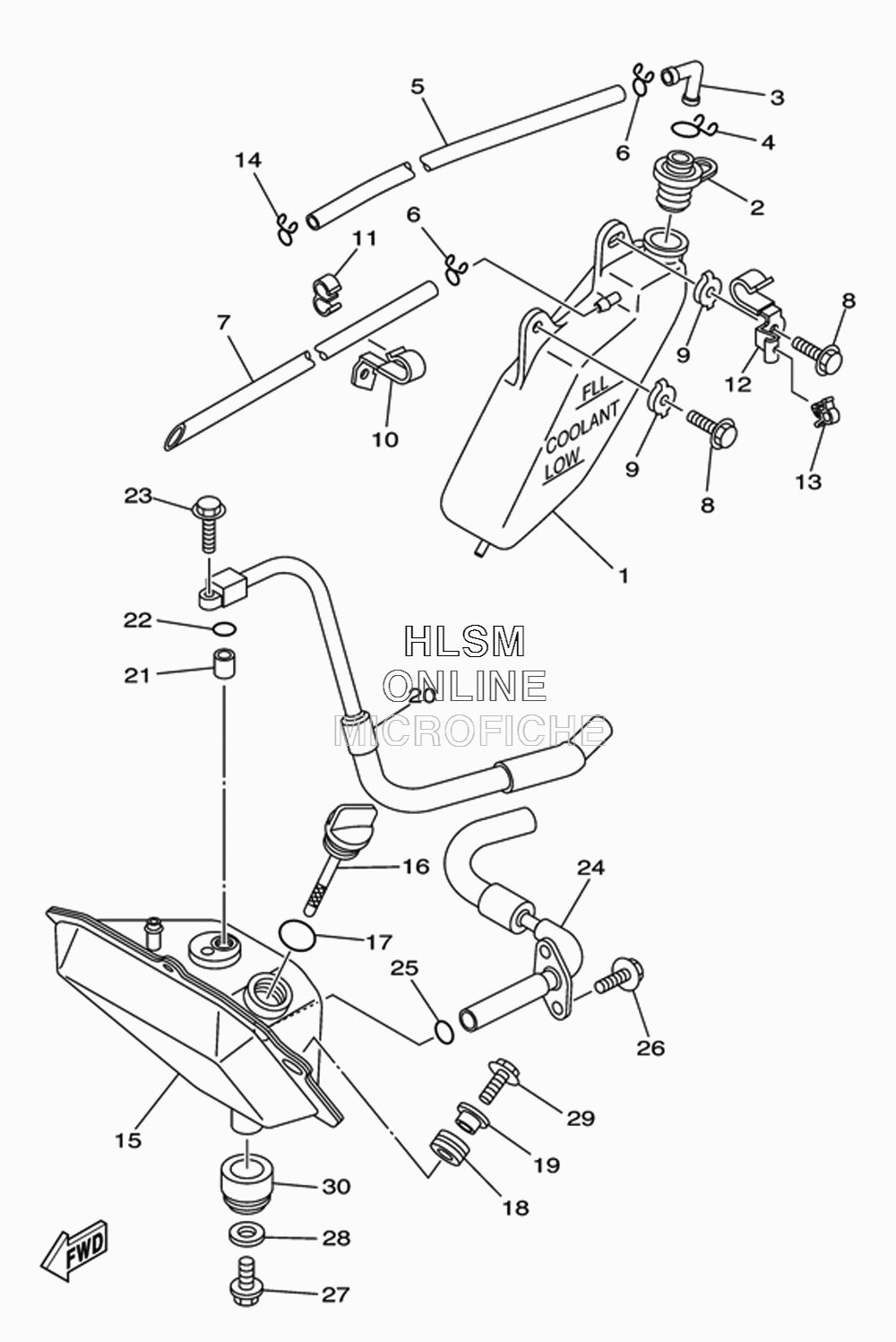

OIL TANK для Yamaha YFZ 450 - 2012 года выпуска
-
№АртикулНазвание
-
15TG-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
25TG-21875-00-00 CAPCAP
-
326H-21828-00-00 ELBOWELBOW
-
490467-11019-00 CLIPCLIP
-
590445-090F7-00 HOSE (L1150)HOSE (L1150)
-
690467-08003-00 CLIPCLIP
-
790445-09020-00 HOSE (L600)HOSE (L600)
-
890105-06084-00 BOLT, FLANGEBOLT, FLANGE
-
95TG-21715-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
1090465-08047-00 CLAMPCLAMP
-
1190464-09M31-00 CLAMPCLAMP
-
1290465-08044-00 CLAMPCLAMP
-
1390464-13133-00 CLAMPCLAMP
-
1490467-08003-00 CLIPCLIP
-
155TG-21750-10-00 OIL TANK ASSYOIL TANK ASSY
-
165LP-21761-01-00 GAUGE, LEVELGAUGE, LEVEL
-
1793210-21190-00 O-RINGO-RING
-
1890480-10289-00 GROMMETGROMMET
-
1990387-06150-00 COLLARCOLLAR
-
205TG-13465-00-00 HOSE, OIL 2HOSE, OIL 2
-
2199530-10114-00 PIN, DOWELPIN, DOWEL
-
2293210-10197-00 O-RINGO-RING
-
2395022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
245D3-13464-00-00 HOSE, OIL 1HOSE, OIL 1
-
2593210-16629-00 O-RINGO-RING
-
2691312-06016-00 BOLTBOLT
-
2795802-08016-00 BOLT, FLANGEBOLT, FLANGE
-
2890201-082A6-00 WASHER, PLATEWASHER, PLATE
-
2995822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
3090480-24001-00 GROMMETGROMMET
