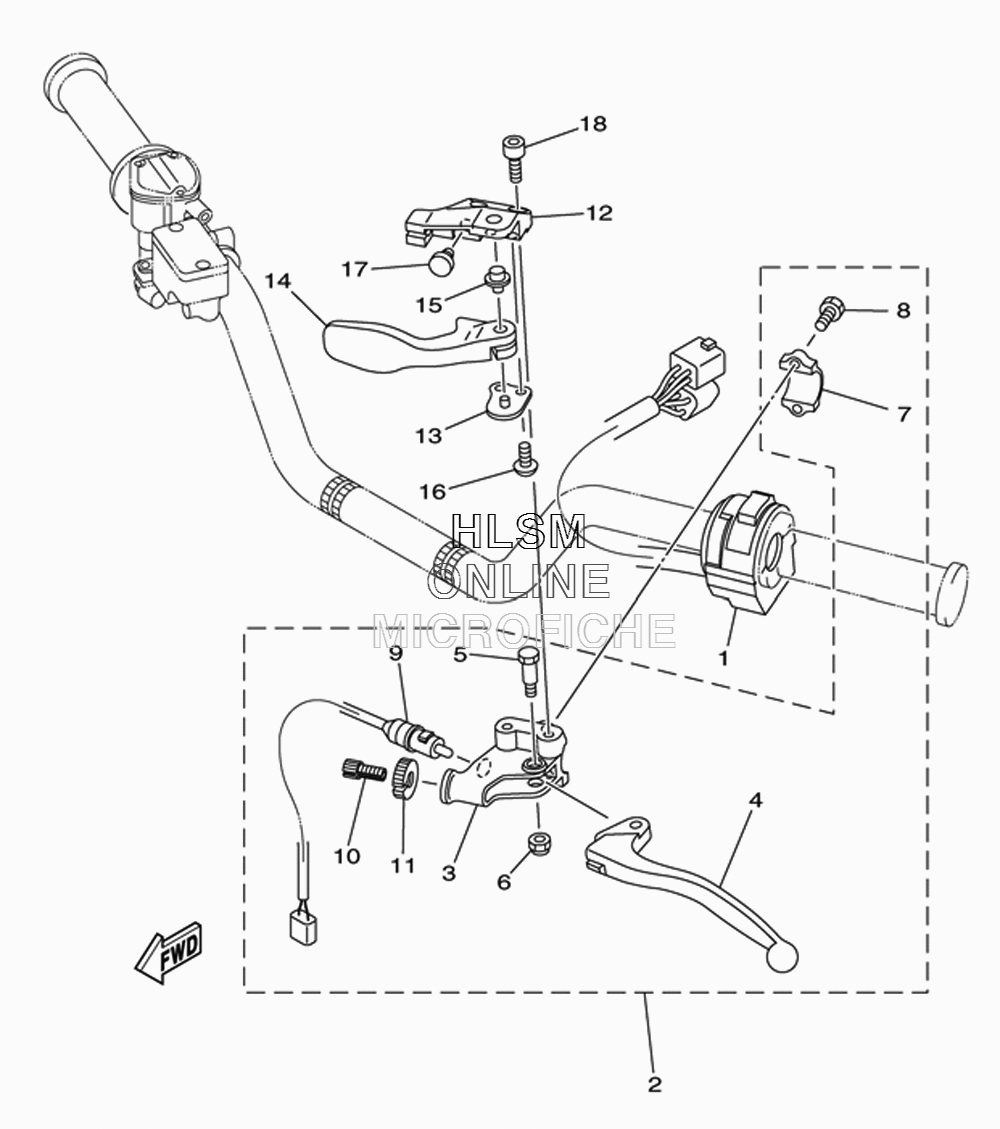

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha YFZ 450 - 2012 года выпуска
-
№АртикулНазвание
-
14KB-83973-21-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
24D3-82910-00-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
35YT-82911-10-00 ...HOLDER, LEVER 1...HOLDER, LEVER 1
-
43RN-83912-00-00 ...LEVER 1...LEVER 1
-
590109-06798-00 ...BOLT...BOLT
-
695602-06100-00 ...NUT, U...NUT, U
-
75TG-82913-00-00 ...HOLDER, LEVER LOWER 1...HOLDER, LEVER LOWER 1
-
897002-05016-00 ...BOLT...BOLT
-
95KM-82917-00-00 ...SWITCH...SWITCH
-
1090123-08046-00 ...BOLT...BOLT
-
1190179-08148-00 ...NUT, SPEC'L SHAPE...NUT, SPEC'L SHAPE
-
125TG-25727-01-00 BRACKET, LEVERBRACKET, LEVER
-
135D3-25689-00-00 PLATE, GUIDEPLATE, GUIDE
-
145TG-25726-01-00 LEVER, BRAKELEVER, BRAKE
-
155TG-83923-00-00 COLLAR, LEVER 2COLLAR, LEVER 2
-
1692012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1790338-07007-00 PLUGPLUG
-
1892014-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
