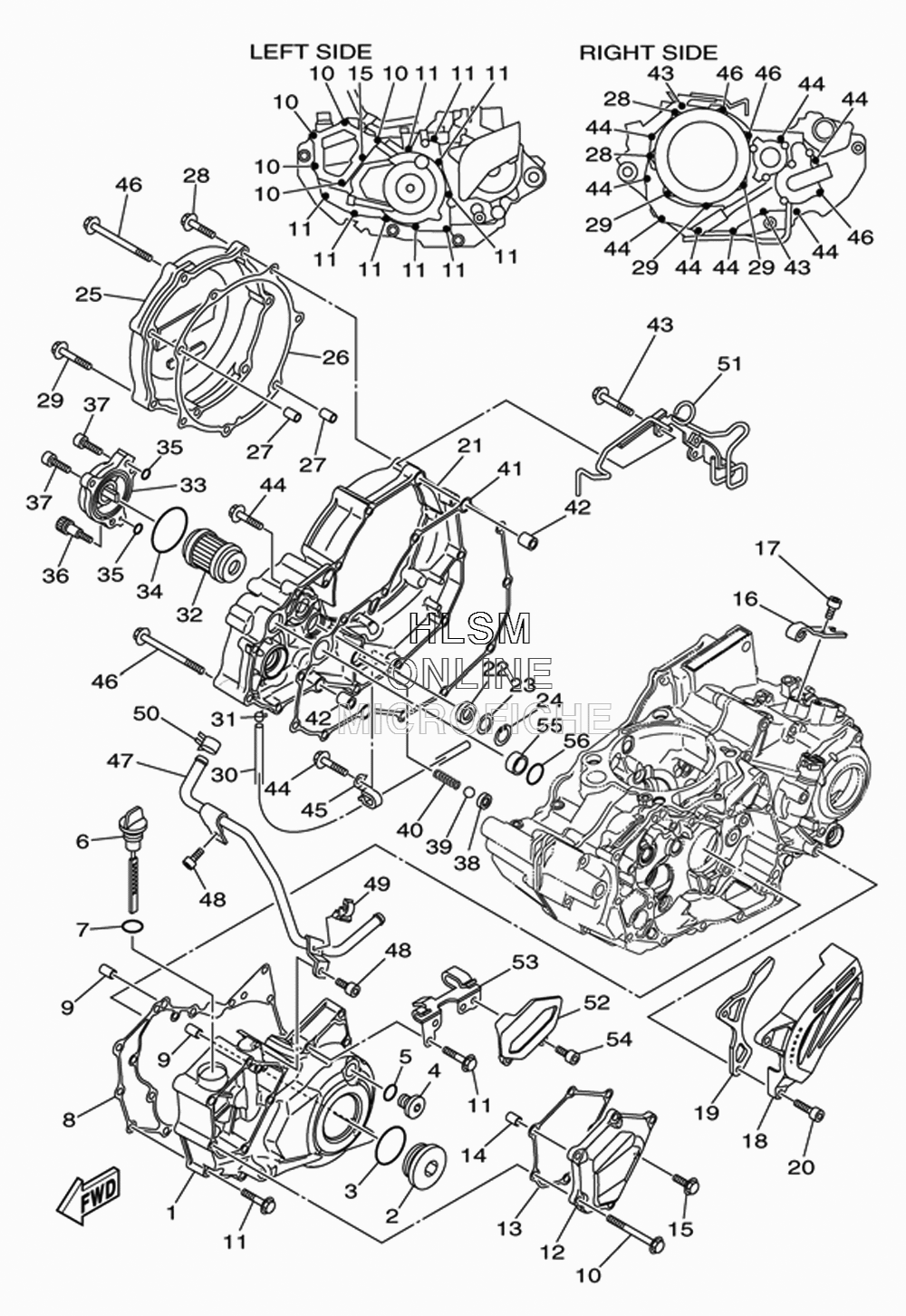

CRANKCASE COVER для Yamaha YFZ 450R - 2012 года выпуска
-
№АртикулНазвание
-
118P-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
290340-36002-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
393210-357A3-00 O-RINGO-RING
-
490340-14011-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
593210-14369-00 O-RINGO-RING
-
618P-15362-01-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
793210-19026-00 O-RINGO-RING
-
818P-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
999530-08016-00 PIN, DOWELPIN, DOWEL
-
1095022-06065-00 BOLT, FLANGEBOLT, FLANGE
-
1195022-06035-00 BOLT, FLANGEBOLT, FLANGE
-
1218P-15423-00-00 COVER 2COVER 2
-
1318P-15463-00-00 GASKET, COVER PINION 2GASKET, COVER PINION 2
-
1499530-08012-00 PIN, DOWELPIN, DOWEL
-
1595022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
165TA-15441-01-00 HOLDER, CLUTCH CABLEHOLDER, CLUTCH CABLE
-
1791312-06016-00 BOLTBOLT
-
1818P-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
1918P-17466-00-00 GUIDE, CHAINGUIDE, CHAIN
-
2091312-06025-00 BOLTBOLT
-
2118P-15431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
2293101-14164-00 OIL SEALOIL SEAL
-
2390201-15701-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
2499009-22500-00 CIRCLIPCIRCLIP
-
255TG-15415-00-00 COVER, GENERATORCOVER, GENERATOR
-
2618P-15453-00-00 GASKETGASKET
-
2799530-08016-00 PIN, DOWELPIN, DOWEL
-
2895022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2995022-06040-00 BOLT, FLANGEBOLT, FLANGE
-
3018P-1243A-00-00 HOSE 1HOSE 1
-
3190467-070A0-00 CLIPCLIP
-
325D3-13440-01-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
335BE-13447-10-00 COVER, OIL ELEMENTCOVER, OIL ELEMENT
-
3493210-47675-00 O-RINGO-RING
-
3593210-07135-00 O-RINGO-RING
-
3690110-06228-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3791312-06020-00 BOLTBOLT
-
38583-13113-00-00 SEAT, CHECK BALLSEAT, CHECK BALL
-
3993503-08007-00 BALL 3/8BALL 3/8
-
4090501-043E0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
4118P-15462-00-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
4299530-10120-00 PIN, DOWELPIN, DOWEL
-
4395022-06040-00 BOLT, FLANGEBOLT, FLANGE
-
4495022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
4590465-08127-00 CLAMPCLAMP
-
4695022-06080-00 BOLT, FLANGEBOLT, FLANGE
-
4718P-15393-01-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
4891312-06016-00 BOLTBOLT
-
4990464-08051-00 CLAMPCLAMP
-
5090467-140A6-00 CLIPCLIP
-
5118P-15484-00-00 CLAMP 2CLAMP 2
-
5218P-15413-00-00 COVERCOVER
-
5318P-1541A-00-00 STAY, CRANKCASE COVER 1STAY, CRANKCASE COVER 1
-
5491312-06016-00 BOLTBOLT
-
555BE-12564-00-00 PIPE, WATERPIPE, WATER
-
5693210-19758-00 O-RINGO-RING
