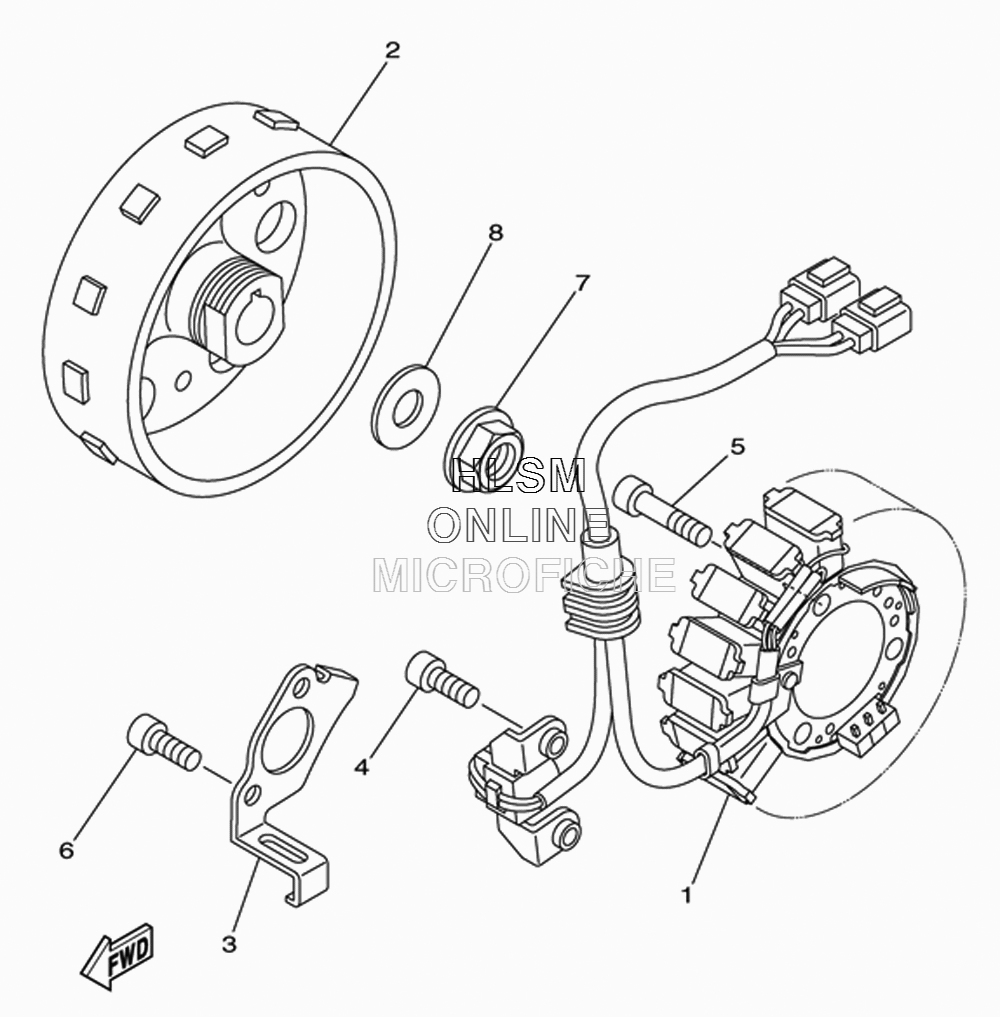

GENERATOR для Yamaha YFZ 450R - 2012 года выпуска
-
№АртикулНазвание
-
118P-81410-00-00 STATOR ASSYSTATOR ASSY
-
218P-81450-00-00 ROTOR ASSYROTOR ASSY
-
318P-81528-00-00 CLAMP 1CLAMP 1
-
490110-06168-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
590110-06169-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
690110-06168-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
790179-12657-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
890201-12020-00 WASHER, PLATEWASHER, PLATE
