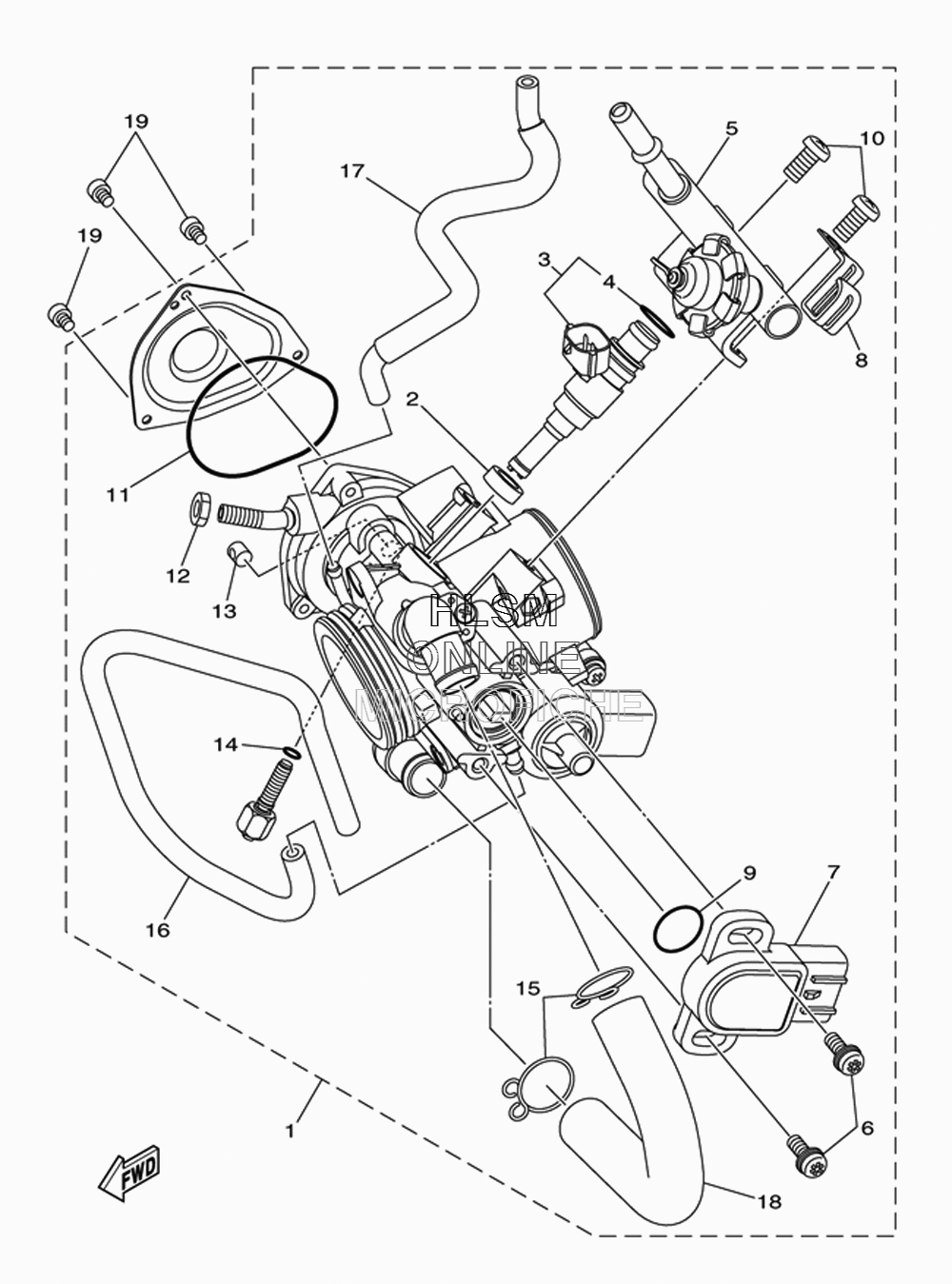

THROTTLE BODY ASSY. для Yamaha YFZ 450R - 2012 года выпуска
-
№АртикулНазвание
-
118P-13750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
28FP-13556-00-00 ...RUBBER, INJECTOR...RUBBER, INJECTOR
-
33B4-13761-00-00 ...INJECTOR...INJECTOR
-
45PS-14147-00-00 ......O-RING......O-RING
-
518P-13160-00-00 ...DELIVERY PIPE ASSY 1...DELIVERY PIPE ASSY 1
-
68CC-14216-10-00 ...SCREW...SCREW
-
73B4-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
85JW-14945-00-00 ...PLATE...PLATE
-
95YP-14562-00-00 ...O-RING...O-RING
-
1098507-06012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
115LP-14147-00-00 ...O-RING...O-RING
-
121S3-14161-00-00 ...NUT, CABLE ADJUSTING...NUT, CABLE ADJUSTING
-
131UY-14155-00-00 ...GUIDE, CABLE...GUIDE, CABLE
-
142H0-14147-00-00 ...O-RING...O-RING
-
158FP-14137-00-00 ...CLIP...CLIP
-
1618P-13543-00-00 ...HOSE, AIR...HOSE, AIR
-
1718P-14348-00-00 ...PIPE 1...PIPE 1
-
1818P-13545-00-00 ...HOSE 1...HOSE 1
-
1991312-04006-00 BOLTBOLT
