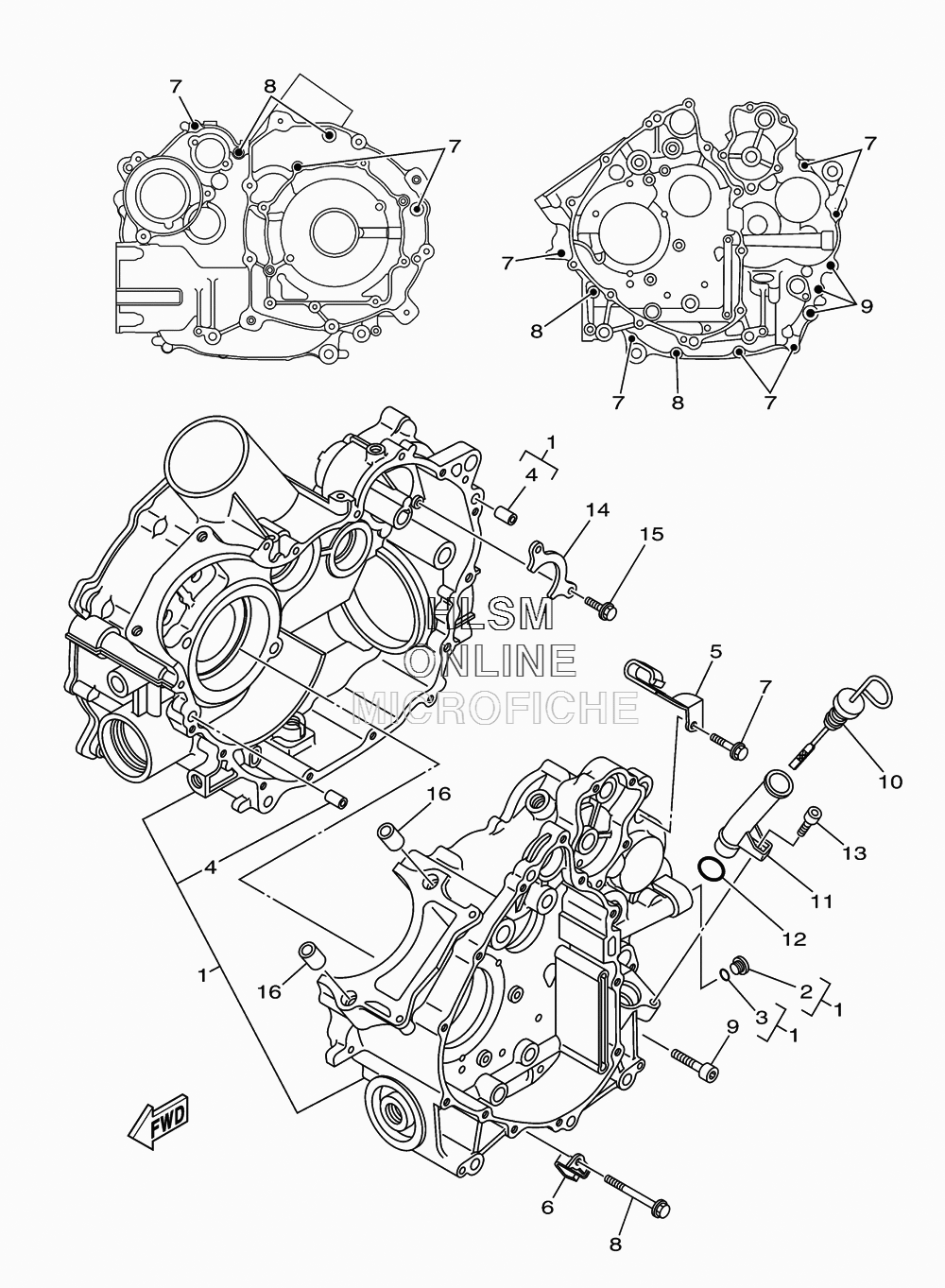

CRANKCASE для Yamaha GRIZZLY 700 4WD - 2013 года выпуска
-
№АртикулНазвание
-
13B4-15100-25-00 CRANKCASE ASSYCRANKCASE ASSY
-
236Y-15189-00-00 ...PLUG...PLUG
-
393210-16325-00 ...O-RING...O-RING
-
499530-10116-00 ...PIN, DOWEL...PIN, DOWEL
-
590462-16003-00 CLAMPCLAMP
-
690462-08049-00 CLAMPCLAMP
-
795022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
895022-06060-00 BOLT, FLANGEBOLT, FLANGE
-
991312-08040-00 BOLTBOLT
-
103B4-15362-01-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
113B4-15112-02-00 PIPE, OILPIPE, OIL
-
1293210-21631-00 O-RINGO-RING
-
1391312-06012-00 BOLTBOLT
-
143B4-15388-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
1590105-06082-00 BOLT, FLANGEBOLT, FLANGE
-
1699530-14016-00 PIN, DOWELPIN, DOWEL
