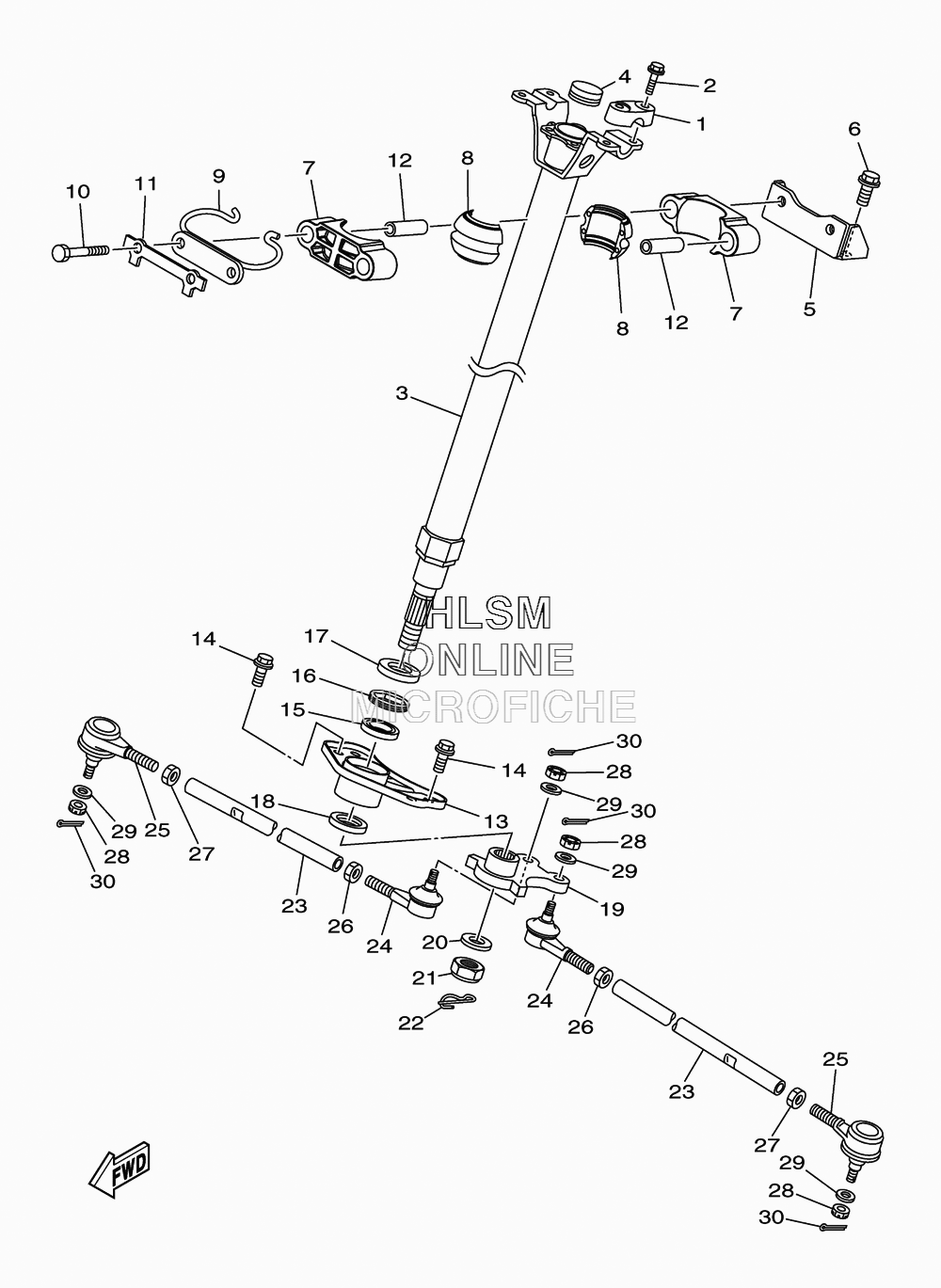

STEERING для Yamaha GRIZZLY 700 4WD - 2013 года выпуска
-
№АртикулНазвание
-
18K1-23814-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
295812-08030-00 BOLT, FLANGEBOLT, FLANGE
-
31ND-F3813-10-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
490336-28053-00 PLUG, TAPERPLUG, TAPER
-
51HP-F2517-10-00 SUPT., STEERING COLUMNSUPT., STEERING COLUMN
-
690105-10876-00 BOLT, FLANGEBOLT, FLANGE
-
71CT-F1957-00-00 BRACKET, STEERING 2BRACKET, STEERING 2
-
81CT-F3812-00-00 BEARING, STEERINGBEARING, STEERING
-
91CT-F3868-00-00 BRACKET, STEERING LOWERBRACKET, STEERING LOWER
-
1097012-08080-00 BOLTBOLT
-
111CT-F3894-00-00 WASHER, LOCK 1WASHER, LOCK 1
-
121CT-F1545-00-00 COLLAR, 2COLLAR, 2
-
131CU-F131H-00-00 BRACKET, STEERING 1BRACKET, STEERING 1
-
1490105-08237-00 BOLT, FLANGEBOLT, FLANGE
-
1593306-203YN-00 BEARINGBEARING
-
1693102-25081-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
1793102-25099-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
182GU-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
191ND-F3816-10-00 ARM, PITMANARM, PITMAN
-
2090201-14021-00 WASHER, PLATEWASHER, PLATE
-
2190185-14009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2291402-20025-00 PIN, COTTERPIN, COTTER
-
235KM-23831-00-00 ROD, TIEROD, TIE
-
241UY-23841-01-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
251UY-23845-01-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
2695302-10700-00 NUTNUT
-
2790170-10010-00 NUT (LEFT HAND THREAD)NUT (LEFT HAND THREAD)
-
2890171-10001-00 NUT, CASTLENUT, CASTLE
-
2990209-10229-00 WASHER, SPEC'L SHAPEWASHER, SPEC'L SHAPE
-
3091401-20020-00 PIN, COTTERPIN, COTTER
