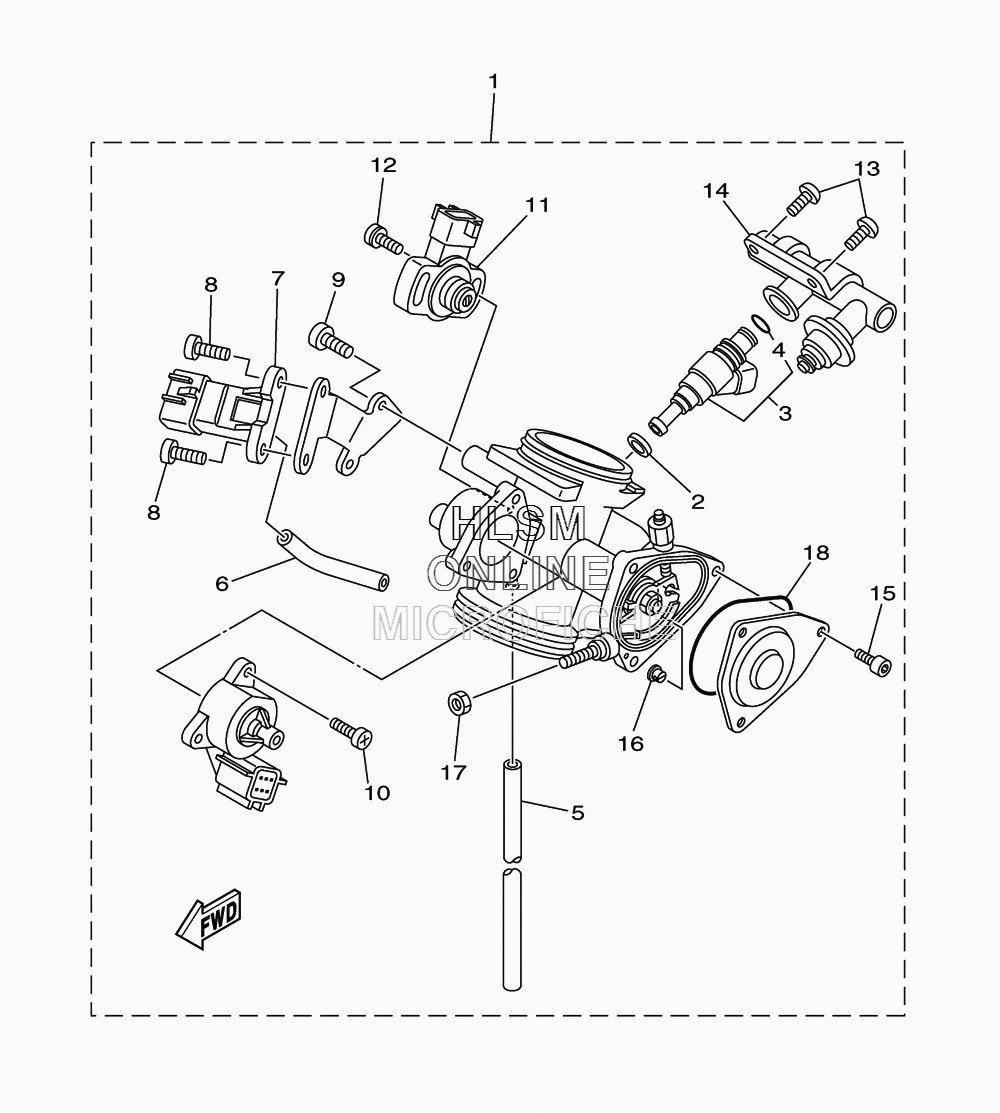

THROTTLE BODY ASSY. для Yamaha GRIZZLY 700 4WD - 2013 года выпуска
-
№АртикулНазвание
-
143P-13750-10-00 THROTTLE BODY ASSY.THROTTLE BODY ASSY.
-
28FP-13556-00-00 ...RUBBER, INJECTOR...RUBBER, INJECTOR
-
33B4-13761-00-00 ...INJECTOR...INJECTOR
-
45PS-14147-00-00 ...O-RING...O-RING
-
528P-13543-00-00 ...HOSE, AIR...HOSE, AIR
-
65JW-14348-00-00 ...PIPE 1...PIPE 1
-
71C7-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
892502-06010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
998507-05010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
101S4-14216-00-00 ...SCREW...SCREW
-
113B4-85885-00-00 ...THROTTLE SENSOR ASSY....THROTTLE SENSOR ASSY.
-
128CC-14216-10-00 ...SCREW...SCREW
-
1398502-06012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
143B4-13160-00-00 ...DELIVERY PIPE ASSY 1...DELIVERY PIPE ASSY 1
-
1591312-04006-00 ...BOLT...BOLT
-
161UY-14155-00-00 ...GUIDE, CABLE...GUIDE, CABLE
-
171S3-14161-00-00 ...NUT, CABLE ADJUSTING...NUT, CABLE ADJUSTING
-
185LP-14147-00-00 ...O-RING...O-RING
