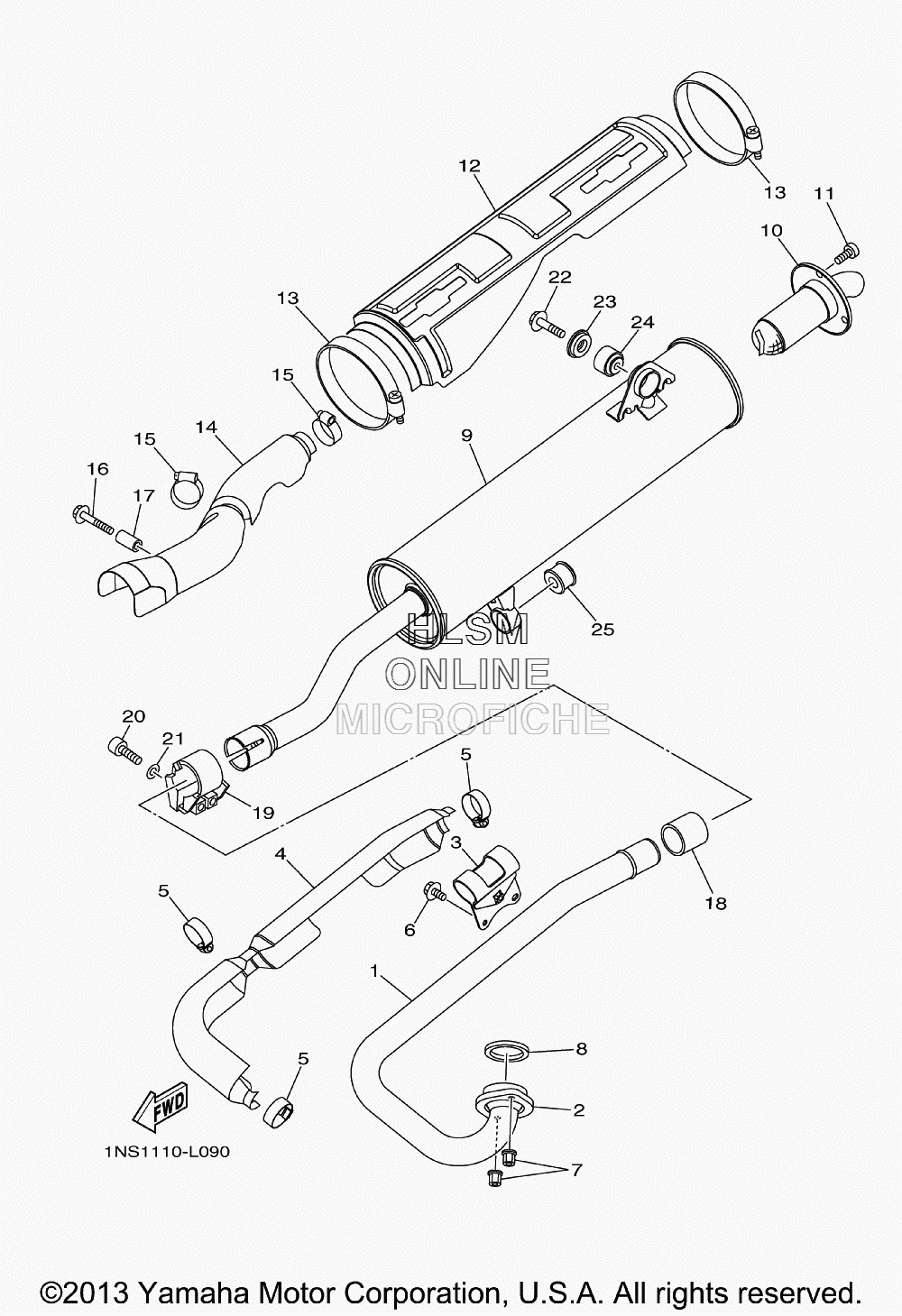

EXHAUST для Yamaha GRIZZLY 350 - 2014 года выпуска
-
№АртикулНазвание
-
15UH-E4611-00-00 PIPE, EXHAUST 1PIPE, EXHAUST 1
-
25UH-E4612-00-00 NUT, RINGNUT, RING
-
31NS-E477R-00-00 BAND 1BAND 1
-
45UH-E4628-01-00 PROTECTOR, EXHAUST PIPEPROTECTOR, EXHAUST PIPE
-
55UH-E477T-00-00 BAND 2BAND 2
-
695812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
790179-06668-00 NUTNUT
-
83GD-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
91NS-E4711-00-00 MUFFLER 1MUFFLER 1
-
105ND-E4752-00-00 PIPE, OUTLETPIPE, OUTLET
-
115ND-E4719-00-00 BOLT, MUFFLERBOLT, MUFFLER
-
125ND-E4718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
135ND-E4788-00-00 BAND, SILENCERBAND, SILENCER
-
141NS-E4728-00-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
155UH-E477T-00-00 BAND 2BAND 2
-
169580P-06040-00 BOLT, FLANGEBOLT, FLANGE
-
175UH-E4638-00-00 COLLARCOLLAR
-
185ND-E4714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
195ND-E4715-00-00 BAND, MUFFLERBAND, MUFFLER
-
205ND-E4777-00-00 BOLTBOLT
-
215ND-E4759-00-00 WASHERWASHER
-
2295812-08040-00 BOLT, FLANGEBOLT, FLANGE
-
233B4-14759-01-00 WASHERWASHER
-
245KM-27414-01-00 DAMPERDAMPER
-
251NS-E4737-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
