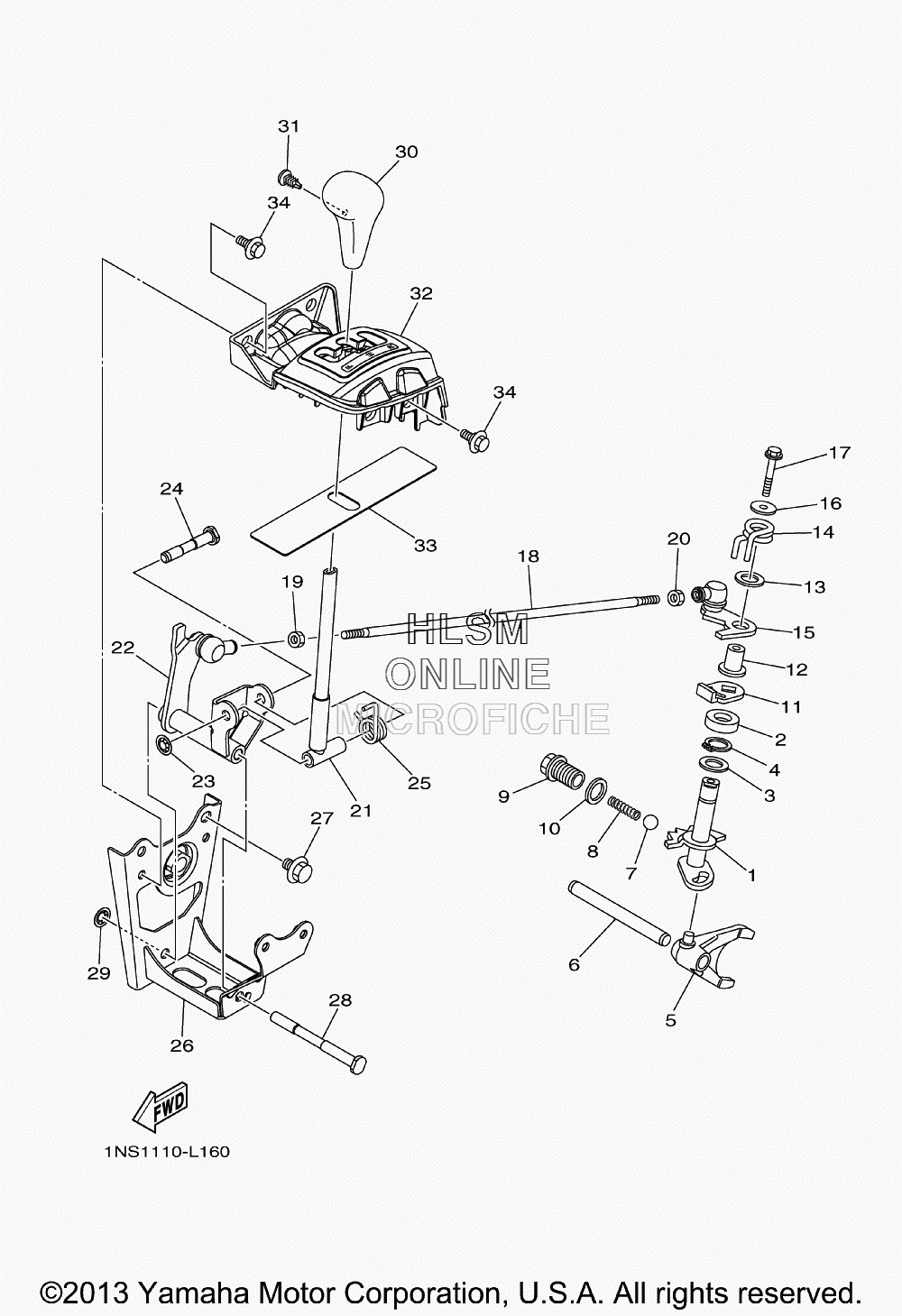

SHIFT SHAFT для Yamaha GRIZZLY 350 - 2014 года выпуска
-
№АртикулНазвание
-
15UH-18103-00-00 SHIFT SHAFT COMP.SHIFT SHAFT COMP.
-
293102-15212-00 OIL SEAL SD-TYPEOIL SEAL SD-TYPE
-
390201-15701-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
493440-15012-00 CIRCLIPCIRCLIP
-
55UH-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
62A6-18535-00-00 BAR, SHIFT FORK GUIDE 2BAR, SHIFT FORK GUIDE 2
-
793503-08007-00 BALL 3/8BALL 3/8
-
890501-10353-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
990105-14003-00 BOLT, FLANGEBOLT, FLANGE
-
1090430-14194-00 GASKETGASKET
-
114SH-18198-00-00 LEVERLEVER
-
1290387-0613B-00 COLLARCOLLAR
-
1390201-132G5-00 WASHER, PLATEWASHER, PLATE
-
1490508-35764-00 SPRING, TORSIONSPRING, TORSION
-
151NS-18191-00-00 LEVERLEVER
-
1690201-06036-00 WASHER, PLATEWASHER, PLATE
-
1795812-06035-00 BOLT, FLANGEBOLT, FLANGE
-
181NS-18115-00-00 ROD, SHIFTROD, SHIFT
-
1990170-06228-00 NUT(COUNTER CLOCKWISE)NUT(COUNTER CLOCKWISE)
-
2095304-06700-00 NUTNUT
-
211NS-E8190-00-00 LEVER COMP. 1LEVER COMP. 1
-
221NS-E8169-00-00 ARM, SHIFT 2ARM, SHIFT 2
-
2390183-080A1-00 NUT, SPRINGNUT, SPRING
-
243B4-18125-00-00 SHAFT, SHIFTSHAFT, SHIFT
-
253B4-18196-01-00 SPRING, RETURNSPRING, RETURN
-
261NS-E8380-00-00 SHIFTER BRKT. ASSYSHIFTER BRKT. ASSY
-
2795812-08012-00 BOLT, FLANGEBOLT, FLANGE
-
281NS-E8155-00-00 SHAFT, SHIFT 2SHAFT, SHIFT 2
-
2990183-080A1-00 NUT, SPRINGNUT, SPRING
-
3028P-18174-00-00 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
3190269-05055-00 RIVET SPEC'L SHAPERIVET SPEC'L SHAPE
-
321NS-E8172-00-00 GUIDE, SHIFTGUIDE, SHIFT
-
331NS-E8154-00-00 COVER, DUSTCOVER, DUST
-
3490109-06172-00 BOLTBOLT
