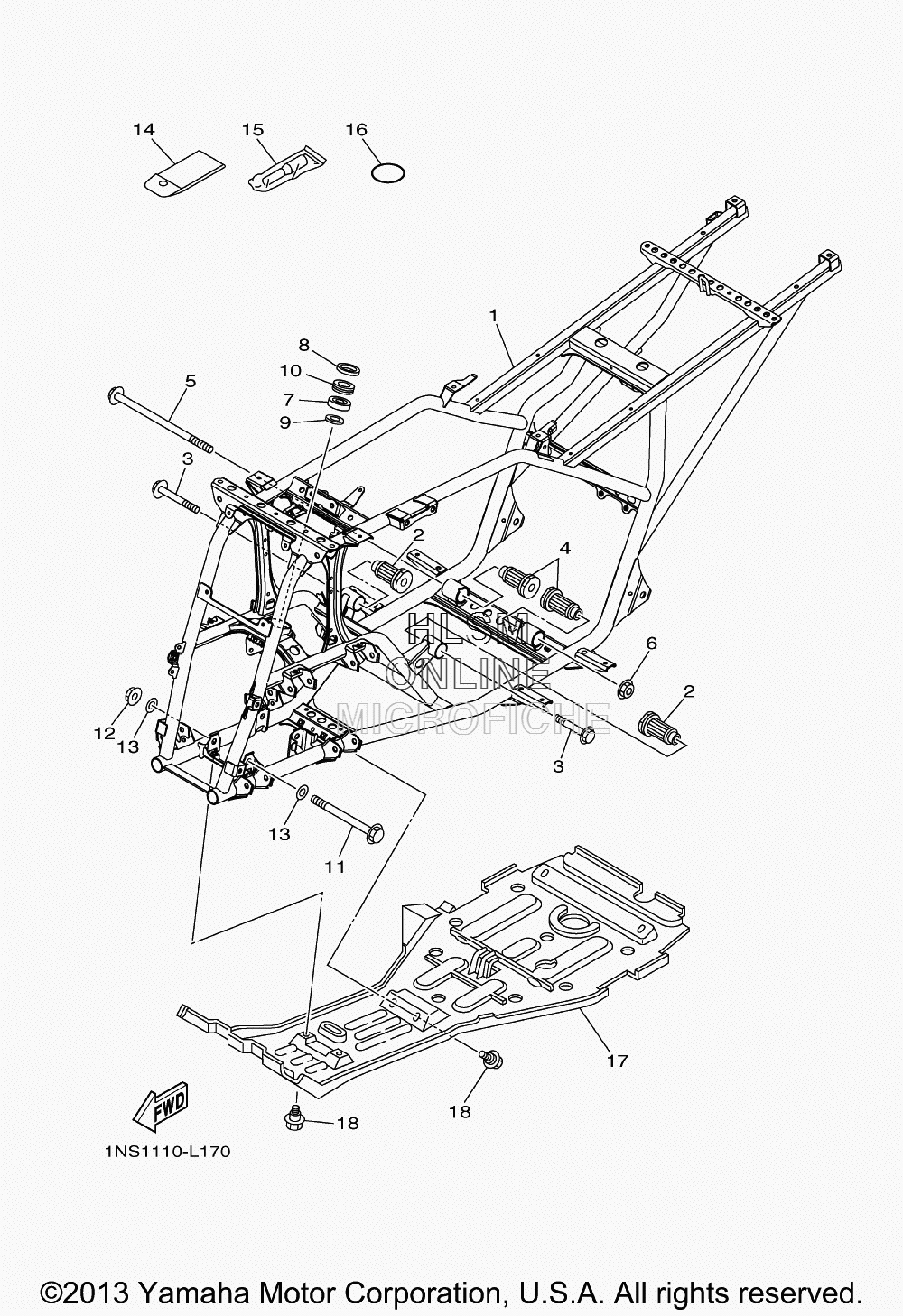

FRAME для Yamaha GRIZZLY 350 - 2014 года выпуска
-
№АртикулНазвание
-
11NS-F1110-00-00 FRAME COMP.FRAME COMP.
-
25UH-E5336-00-00 DAMPER, ENGINE MOUNT 3DAMPER, ENGINE MOUNT 3
-
395812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
45UH-E5336-00-00 DAMPER, ENGINE MOUNT 3DAMPER, ENGINE MOUNT 3
-
590105-10284-00 BOLT, FLANGEBOLT, FLANGE
-
695602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
793306-203YN-00 BEARINGBEARING
-
893102-25081-00 OIL SEAL SD-TYPEOIL SEAL SD-TYPE
-
993102-25099-00 OIL SEAL SD-TYPEOIL SEAL SD-TYPE
-
102GU-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
1190105-10051-00 BOLT WASHER BASEDBOLT WASHER BASED
-
1295602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
1390201-10035-00 WASHER, PLATEWASHER, PLATE
-
141CT-F8100-00-00 TOOL KITTOOL KIT
-
151NV-2811A-01-00 GAUGE, AIRGAUGE, AIR
-
1693210-64297-00 O-RINGO-RING
-
175ND-F147A-02-00 GUARD, ENGINE 1GUARD, ENGINE 1
-
1890109-06172-00 BOLTBOLT
