DragonPart → Yamaha → Квадроцикл (ATV) → 2016 → KODIAK 700 4WD →

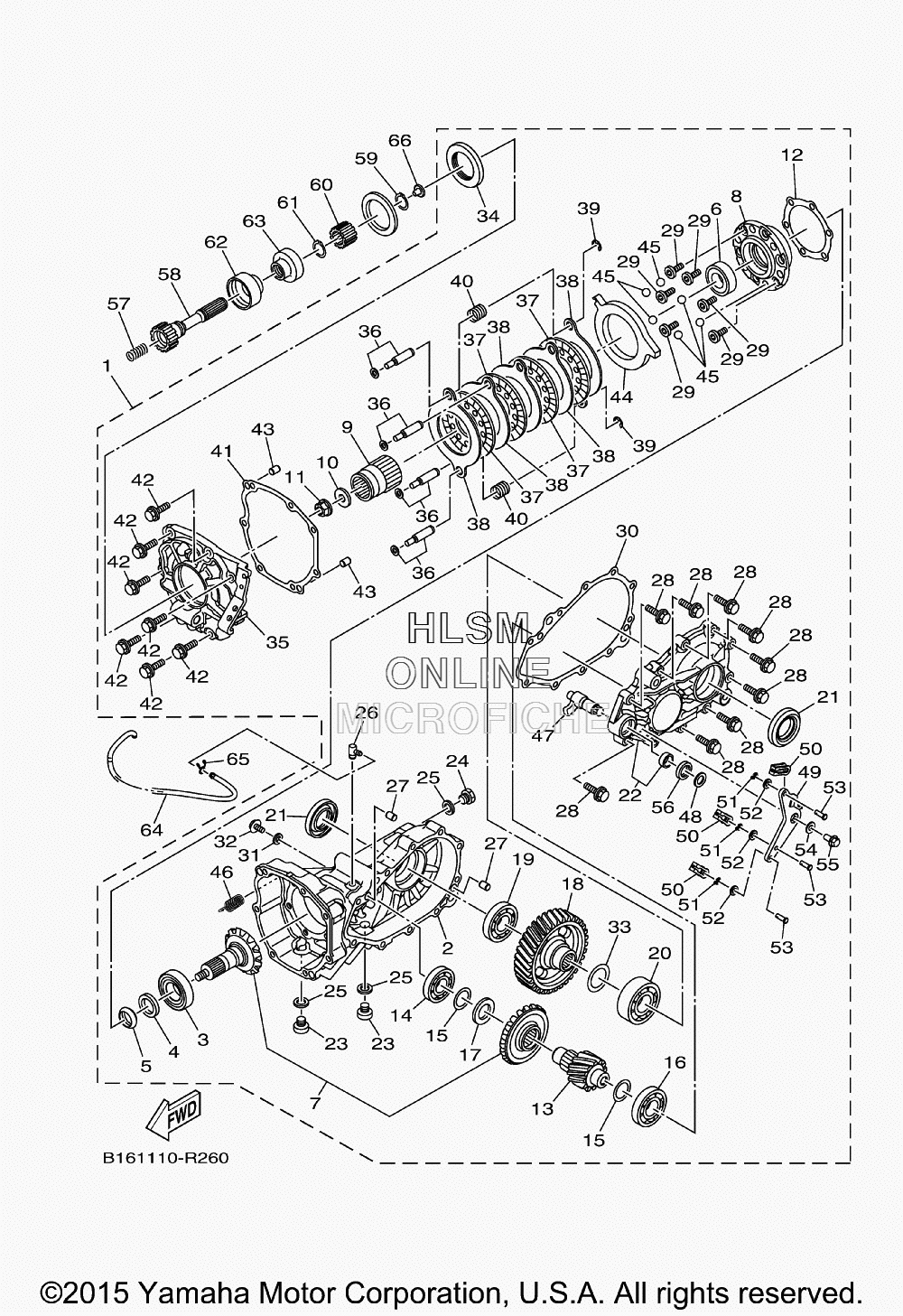

DIFFERENTIAL - REAR W/ DRIVE SHAFT для Yamaha KODIAK 700 4WD - 2016 года выпуска

№

Артикул

Название
1

B16-46101-00-00 REAR AXLE GEAR CASE ASSY

REAR AXLE GEAR CASE ASSY

203 010 ₽
2

B16-46540-00-00 REAR AXLE HOUSING COMP.

REAR AXLE HOUSING COMP.

22 360 ₽
3

93332-00046-00 ...BEARING

...BEARING

5 980 ₽
4

90201-25634-00 ...WASHER, PLATE

...WASHER, PLATE

1 190 ₽
5

3B4-46129-00-00 ...SPACER, EXPANSION

...SPACER, EXPANSION

980 ₽
6

93332-00053-00 ...BEARING

...BEARING

6 920 ₽
7

3B4-461A0-00-00 ...RING GEAR SET

...RING GEAR SET

37 320 ₽
8

B16-46144-00-00 ...HOUSING, PINION BEARING

...HOUSING, PINION BEARING

5 660 ₽
9

B16-46126-00-00 ...COUPLING

...COUPLING

8 500 ₽
10

90201-12029-00 ...WASHER, PLATE

...WASHER, PLATE

630 ₽
11

90179-12005-00 ...NUT

...NUT

890 ₽
12

B16-46127-00-00 ...SHIM, DRIVE PINION (0.30T) (OPT)

...SHIM, DRIVE PINION (0.30T) (OPT)

720 ₽
12

B16-46127-10-00 ...SHIM, DRIVE PINION (0.35T) (OPT)

...SHIM, DRIVE PINION (0.35T) (OPT)

720 ₽
12

B16-46127-20-00 ...SHIM, DRIVE PINION (0.40T) (OPT)

...SHIM, DRIVE PINION (0.40T) (OPT)

720 ₽
12

B16-46127-30-00 ...SHIM, DRIVE PINION (0.45T) (OPT)

...SHIM, DRIVE PINION (0.45T) (OPT)

720 ₽
12

B16-46127-40-00 ...SHIM, DRIVE PINION (0.50T) (OPT)

...SHIM, DRIVE PINION (0.50T) (OPT)

720 ₽
12

B16-46127-50-00 ...SHIM, DRIVE PINION (0.25T) (OPT)

...SHIM, DRIVE PINION (0.25T) (OPT)

720 ₽
13

3B4-46316-00-00 ...GEAR, PINION 1

...GEAR, PINION 1

15 900 ₽
14

93306-205U0-00 ...BEARING

...BEARING

3 770 ₽
15

3B4-46119-00-00 ...SHIM, THRUST (0.25T) (OPT)

...SHIM, THRUST (0.25T) (OPT)

340 ₽
15

3B4-46119-10-00 ...SHIM, THRUST (0.30T) (OPT)

...SHIM, THRUST (0.30T) (OPT)

340 ₽
15

3B4-46119-20-00 ...SHIM, THRUST (0.35T) (OPT)

...SHIM, THRUST (0.35T) (OPT)

340 ₽
15

3B4-46119-30-00 ...SHIM, THRUST (0.40T) (OPT)

...SHIM, THRUST (0.40T) (OPT)

340 ₽
15

3B4-46119-40-00 ...SHIM, THRUST (0.45T) (OPT)

...SHIM, THRUST (0.45T) (OPT)

340 ₽
15

3B4-46119-50-00 ...SHIM, THRUST (0.50T) (OPT)

...SHIM, THRUST (0.50T) (OPT)

340 ₽
16

93306-30534-00 ...BEARING

...BEARING

8 500 ₽
17

3B4-4621F-00-00 ...SHIM,THRUST (4.5T) (OPT)

...SHIM,THRUST (4.5T) (OPT)

1 730 ₽
17

3B4-4621F-10-00 ...SHIM,THRUST (4.8T) (OPT)

...SHIM,THRUST (4.8T) (OPT)

1 730 ₽
17

3B4-4621F-20-00 ...SHIM,THRUST (5.1T) (OPT)

...SHIM,THRUST (5.1T) (OPT)

1 730 ₽
17

3B4-4621F-30-00 ...SHIM,THRUST (5.4T) (OPT)

...SHIM,THRUST (5.4T) (OPT)

1 730 ₽
18

3B4-46326-01-00 ...GEAR, WHEEL 1

...GEAR, WHEEL 1

23 300 ₽
19

93306-00704-00 ...BEARING

...BEARING

2 360 ₽
20

93306-207U0-00 ...BEARING

...BEARING

3 540 ₽
21

93102-35031-00 ...OIL SEAL

...OIL SEAL

1 880 ₽
22

B16-46550-00-00 ...REAR AXLE HOUSING COMP. 2

...REAR AXLE HOUSING COMP. 2

9 760 ₽
23

90340-14002-00 ...PLUG, STRAIGHT SCREW

...PLUG, STRAIGHT SCREW

470 ₽
24

90340-14029-00 ...PLUG, STRAIGHT SCREW

...PLUG, STRAIGHT SCREW

540 ₽
25

214-11198-01-00 ...GASKET

...GASKET

260 ₽
26

5UG-15371-00-00 ...BREATHER

...BREATHER

2 200 ₽
27

93610-14002-00 ...PIN, DOWEL

...PIN, DOWEL

500 ₽
28

95822-08035-00 ...BOLT, FLANGE

...BOLT, FLANGE

380 ₽
29

90109-08237-00 ...BOLT

...BOLT

310 ₽
30

B16-4631A-00-00 ...GSKT., CASE

...GSKT., CASE

1 420 ₽
31

90201-08087-00 ...WASHER, PLATE

...WASHER, PLATE

380 ₽
32

95022-08012-00 ...BOLT, FLANGE

...BOLT, FLANGE

280 ₽
33

3B4-46344-00-00 ...SHIM (0.25T) (OPT)

...SHIM (0.25T) (OPT)

400 ₽
33

3B4-46344-10-00 ...SHIM (0.30T) (OPT)

...SHIM (0.30T) (OPT)

400 ₽
33

3B4-46344-20-00 ...SHIM (0.35T) (OPT)

...SHIM (0.35T) (OPT)

400 ₽
33

3B4-46344-30-00 ...SHIM (0.40T) (OPT)

...SHIM (0.40T) (OPT)

400 ₽
33

3B4-46344-40-00 ...SHIM (0.45T) (OPT)

...SHIM (0.45T) (OPT)

400 ₽
33

3B4-46344-50-00 ...SHIM (0.50T) (OPT)

...SHIM (0.50T) (OPT)

400 ₽
34

93105-45007-00 ...OIL SEAL

...OIL SEAL

3 300 ₽
35

B16-4613F-00-00 ...COVER 1

...COVER 1

7 870 ₽
36

B16-46155-00-00 ...BOLT 1

...BOLT 1

840 ₽
37

B16-42525-00-00 ...PLATE, FRICTION

...PLATE, FRICTION

3 770 ₽
38

B16-46336-00-00 ...PLATE 1

...PLATE 1

2 990 ₽
39

99002-09600-00 ...CIRCLIP

...CIRCLIP

310 ₽
40

90501-180A2-00 ...SPRING, COMPRESSION

...SPRING, COMPRESSION

290 ₽
41

B16-4631E-00-00 ...GASKET, COVER

...GASKET, COVER

1 070 ₽
42

95822-08035-00 ...BOLT, FLANGE

...BOLT, FLANGE

380 ₽
43

93610-14002-00 ...PIN, DOWEL

...PIN, DOWEL

500 ₽
44

B16-4582E-00-00 ...CAM, PLATE

...CAM, PLATE

5 350 ₽
45

93515-32029-00 ...BALL

...BALL

310 ₽
46

B16-46375-00-00 ...SPRING, RETURN

...SPRING, RETURN

320 ₽
47

B16-46265-00-00 ...SHAFT

...SHAFT

5 660 ₽
48

90201-13015-00 ...WASHER, PLATE

...WASHER, PLATE

400 ₽
49

B16-25355-00-00 ...LEVER, CAMSHAFT

...LEVER, CAMSHAFT

2 990 ₽
50

B16-26374-00-00 ...END, CABLE 3

...END, CABLE 3

510 ₽
51

91402-20012-00 ...PIN, COTTER

...PIN, COTTER

190 ₽
52

92902-06600-00 ...WASHER, PLATE

...WASHER, PLATE

180 ₽
53

91702-06018-00 ...PIN, CLEVIS

...PIN, CLEVIS

310 ₽
54

92902-08200-00 ...WASHER

...WASHER

70 ₽
55

95822-08016-00 ...BOLT, FLANGE

...BOLT, FLANGE

340 ₽
56

93102-17008-00 ...OIL SEAL

...OIL SEAL

1 440 ₽
57

90501-20361-00 SPRING, COMPRESSION

SPRING, COMPRESSION

720 ₽
58

1HP-G6172-00-00 SHAFT, DRIVE

SHAFT, DRIVE

15 430 ₽
59

99009-19400-00 CIRCLIP

CIRCLIP

470 ₽
60

5KM-46126-00-00 COUPLING

COUPLING

5 660 ₽
61

93410-22039-00 CIRCLIP

CIRCLIP

470 ₽
62

5KM-46137-00-00 SEAL 2

SEAL 2

430 ₽
63

5KM-46136-00-00 SEAL 1

SEAL 1

530 ₽
64

90445-074F6-00 HOSE (L1300)

HOSE (L1300)

1 440 ₽
65

90467-07029-00 CLIP

CLIP

370 ₽
66

5KM-46559-00-00 DAMPER

DAMPER

470 ₽
