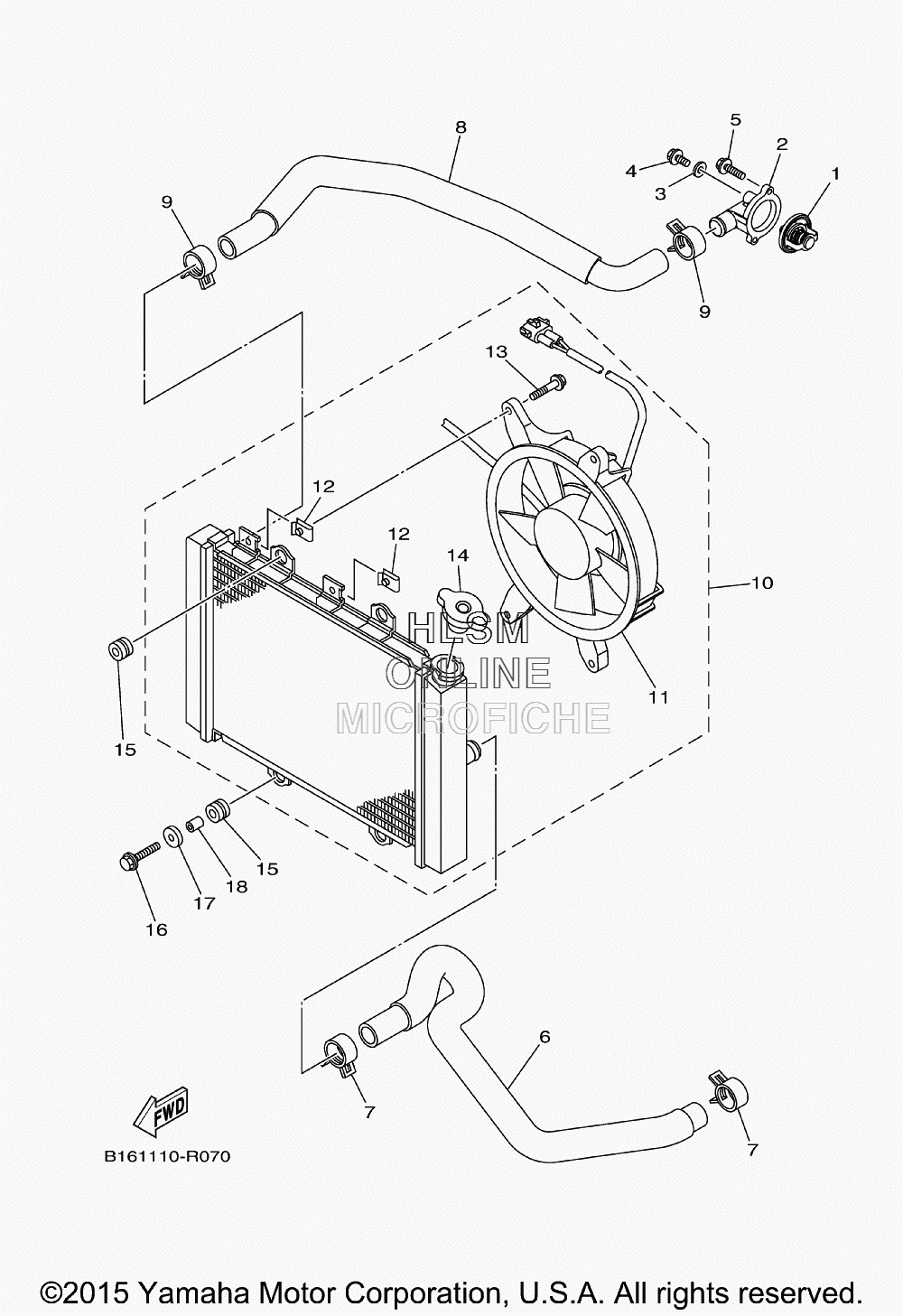

RADIATOR ASSY для Yamaha KODIAK 700 4WD - 2016 года выпуска
-
№АртикулНазвание
-
12MB-E2411-00-00 THERMOSTATTHERMOSTAT
-
2B16-E2413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
32MB-E2435-00-00 GASKETGASKET
-
42MB-E5481-60-00 BOLT 1BOLT 1
-
52MB-E5481-10-00 BOLT 1BOLT 1
-
6B16-E2576-00-00 HOSE 1HOSE 1
-
790467-26189-00 CLIPCLIP
-
8B16-E2578-00-00 HOSE 3HOSE 3
-
990467-26189-00 CLIPCLIP
-
10B16-E2460-00-00 RADIATOR ASSYRADIATOR ASSY
-
11B16-E2405-00-00 ...BLOWER ASSY...BLOWER ASSY
-
121HP-E2535-00-00 ...NUT SPRING...NUT SPRING
-
131HP-E2675-00-00 ...BOLT, BLOWER HOLDING...BOLT, BLOWER HOLDING
-
141XD-E2462-00-00 ...CAP, RADIATOR...CAP, RADIATOR
-
1590480-15235-00 GROMMETGROMMET
-
1695812-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1790209-06012-00 WASHERWASHER
-
1890387-06113-00 COLLARCOLLAR
