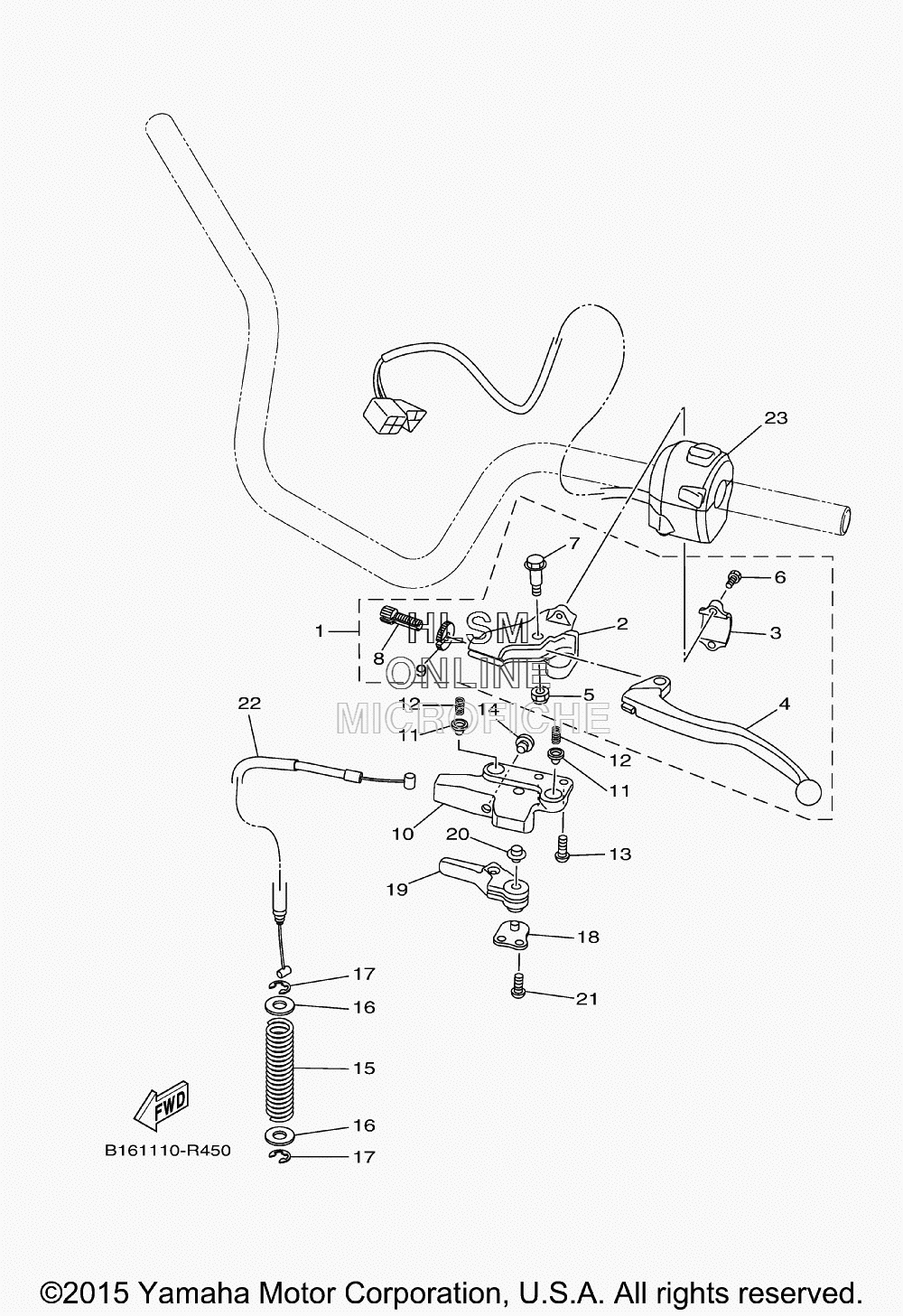

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha KODIAK 700 4WD - 2016 года выпуска
-
№АртикулНазвание
-
1B16-82910-00-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
2B16-82911-00-00 ...HOLDER, LEVER 1...HOLDER, LEVER 1
-
35TG-82913-00-00 ...HOLDER, LEVER LOWER 1...HOLDER, LEVER LOWER 1
-
42HT-83912-01-00 ...LEVER 1...LEVER 1
-
595602-06100-00 ...NUT, S/L...NUT, S/L
-
690101-05033-00 ...BOLT...BOLT
-
790109-06798-00 ...BOLT...BOLT
-
890123-08002-00 ...BOLT...BOLT
-
990179-08030-00 ...NUT...NUT
-
10B16-25727-00-00 BRACKET, LEVERBRACKET, LEVER
-
11B16-26154-00-00 STOPPER, LEVERSTOPPER, LEVER
-
1290501-12743-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1392012-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1490338-07007-00 PLUGPLUG
-
1590501-300A1-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1690201-10035-00 WASHER, PLATEWASHER, PLATE
-
1799001-08600-00 CIRCLIPCIRCLIP
-
185D3-25689-00-00 PLATE, GUIDEPLATE, GUIDE
-
19B16-26164-00-00 LEVER 1LEVER 1
-
205TG-83923-00-00 COLLAR, LEVER 2COLLAR, LEVER 2
-
2192012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
22B16-2637E-00-00 CABLE, CONTROL 1CABLE, CONTROL 1
-
231S3-83973-11-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
