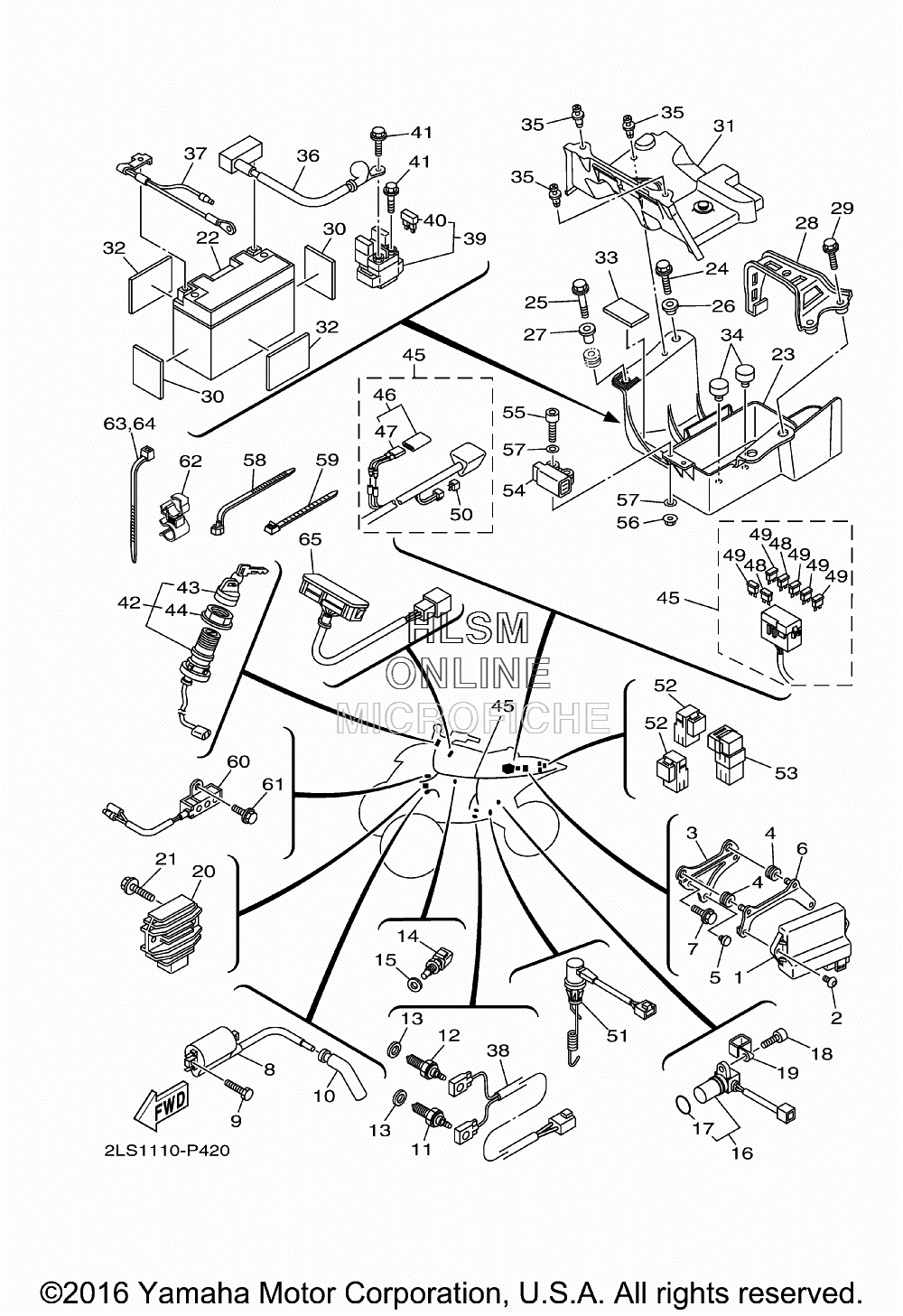

ELECTRICAL для Yamaha RAPTOR 700 [Y17YFM70RSBHO] (2LS9) - 2017 года выпуска
-
№АртикулНазвание
-
12LS-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
292012-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
32LS-F1274-00-00 BRACKET, C.D.I. UNITBRACKET, C.D.I. UNIT
-
490480-11224-00 GROMMETGROMMET
-
590338-07007-00 PLUGPLUG
-
62LS-2830X-00-00 BRKT., CONTROL UNITBRKT., CONTROL UNIT
-
795812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
83TB-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
997002-05020-00 BOLTBOLT
-
105VK-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
115LP-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
123GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1390430-10148-00 GASKETGASKET
-
145YP-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
1590430-12202-00 GASKETGASKET
-
161S3-83755-01-00 SENSOR, SPEEDSENSOR, SPEED
-
174D9-81168-00-00 ...O-RING...O-RING
-
1891312-06016-00 BOLTBOLT
-
1990461-10004-00 CLAMPCLAMP
-
205BN-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
2195812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
221PE-H2100-00-00 BATTERY ASSY (GS GT9B-4)BATTERY ASSY (GS GT9B-4)
-
231PE-H212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
2490105-06084-00 BOLT, FLANGEBOLT, FLANGE
-
2595802-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2690387-06153-00 COLLARCOLLAR
-
2790387-063E6-00 COLLARCOLLAR
-
281PE-H2128-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
2995802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
301S3-82123-00-00 SEAT, BATTERYSEAT, BATTERY
-
311PE-H2129-00-00 COVER, BATTERYCOVER, BATTERY
-
324HC-27415-00-00 PLATE, FOOTRESTPLATE, FOOTREST
-
3322F-2139X-00-00 DAMPERDAMPER
-
345TG-82121-10-00 PAD, BATTERYPAD, BATTERY
-
3590269-06002-00 RIVETRIVET
-
361PE-H2115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
371PE-H2116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
381S3-82541-00-00 WIRE, LEADWIRE, LEAD
-
395UG-81940-00-00 STARTER RELAY ASSY (2768112-A)STARTER RELAY ASSY (2768112-A)
-
401AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
4195022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
424SH-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
433HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
443HN-82569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
452LS-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
463D5-82180-00-00 ...CIRCUIT BREAKER ASSY...CIRCUIT BREAKER ASSY
-
473D5-82560-00-00 ......THERMO SWITCH ASSY......THERMO SWITCH ASSY
-
485JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
495JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
503WP-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
511S3-82530-10-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
521TP-81950-00-00 RELAY ASSY (1TP-00)RELAY ASSY (1TP-00)
-
535DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
545PS-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
5591312-04025-00 BOLTBOLT
-
5695702-04500-00 NUT, FLANGENUT, FLANGE
-
5790201-04030-00 WASHER, PLATEWASHER, PLATE
-
5890464-12045-00 CLAMPCLAMP
-
5990465-13M11-00 CLAMPCLAMP
-
601S3-85370-00-00 RESISTOR ASSYRESISTOR ASSY
-
6195812-06010-00 BOLT, FLANGEBOLT, FLANGE
-
6290464-15011-00 CLAMPCLAMP
-
6390465-13M11-00 CLAMPCLAMP
-
6490464-40825-00 CLAMPCLAMP
-
651S3-83530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
