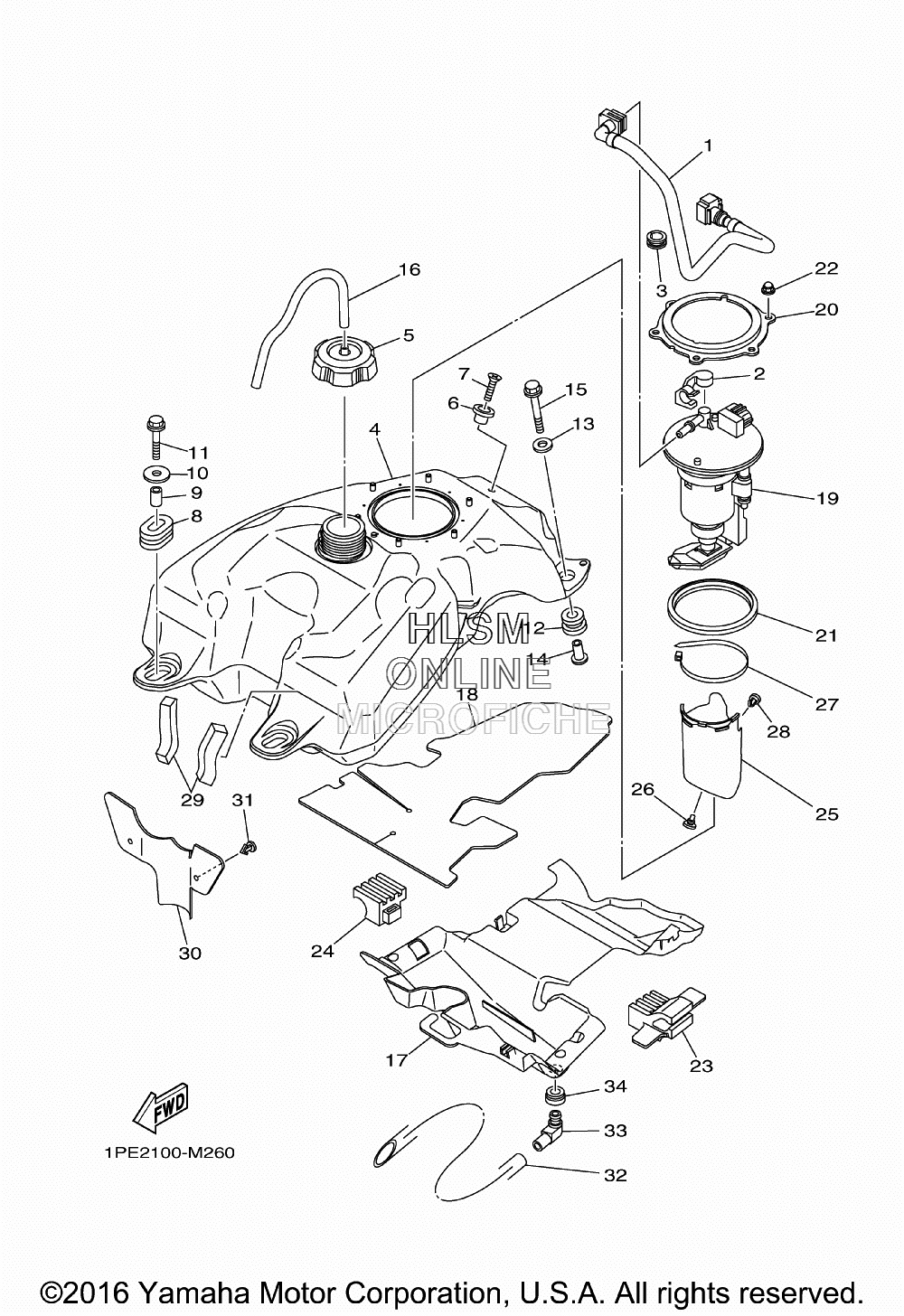

FUEL TANK для Yamaha RAPTOR 700 [Y17YFM70RSBHO] (2LS9) - 2017 года выпуска
-
№АртикулНазвание
-
11PE-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
290464-14004-00 CLAMPCLAMP
-
390480-17011-00 GROMMETGROMMET
-
41PE-F4110-00-00 FUEL TANK COMP.FUEL TANK COMP.
-
52FJ-24610-10-00 CAP ASSYCAP ASSY
-
64EW-2412F-00-00 BRACKET, SEATBRACKET, SEAT
-
790151-06005-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
890480-01017-00 GROMMETGROMMET
-
990387-06M17-00 COLLARCOLLAR
-
1090201-06090-00 WASHER, PLATEWASHER, PLATE
-
1195802-06035-00 BOLT, FLANGEBOLT, FLANGE
-
1290480-18005-00 GROMMETGROMMET
-
1390201-06033-00 WASHER, PLATEWASHER, PLATE
-
1490387-06098-00 COLLARCOLLAR
-
1595802-06035-00 BOLT, FLANGEBOLT, FLANGE
-
1690445-083J4-00 HOSE (L340)HOSE (L340)
-
171S3-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
181PE-F416F-00-00 INSULATOR, FUEL TANK 1INSULATOR, FUEL TANK 1
-
191S3-13907-10-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
201S3-24491-10-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
211S3-24486-00-00 O-RINGO-RING
-
2295302-06800-00 NUT, CROWNNUT, CROWN
-
231S3-24278-00-00 STOPPER 1STOPPER 1
-
241S3-24279-00-00 STOPPER 2STOPPER 2
-
251S3-24452-00-00 COVERCOVER
-
2690338-05008-00 PLUGPLUG
-
2790464-66001-00 CLAMPCLAMP
-
2890269-07011-00 RIVETRIVET
-
291S3-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
301S3-2413X-00-00 PLATEPLATE
-
3190269-05055-00 RIVETRIVET
-
3290445-16007-00 HOSE (L400)HOSE (L400)
-
3331A-14419-00-00 PIPEPIPE
-
3431A-14435-00-00 GROMMETGROMMET
