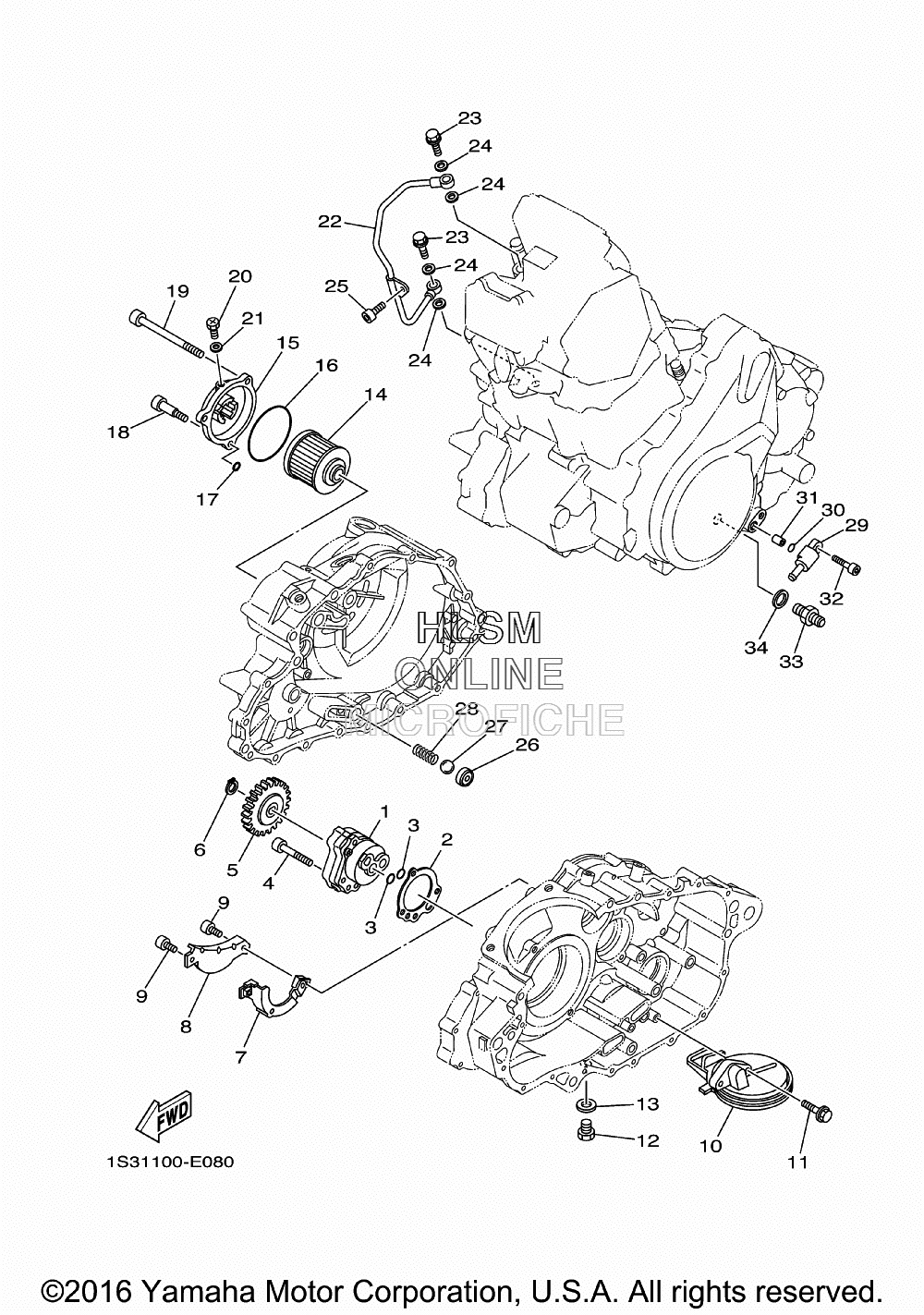

OIL PUMP для Yamaha RAPTOR 700 [Y17YFM70RSBHO] (2LS9) - 2017 года выпуска
-
№АртикулНазвание
-
15LP-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
25LP-13329-00-00 GASKET, PUMP COVERGASKET, PUMP COVER
-
393210-13361-00 O-RINGO-RING
-
491312-06035-00 BOLTBOLT
-
53AJ-13325-00-00 GEAR, PUMP DRIVENGEAR, PUMP DRIVEN
-
699009-11400-00 CIRCLIPCIRCLIP
-
71S3-13356-00-00 COVER, PUMP 2COVER, PUMP 2
-
81S3-13327-00-00 COVER, PUMP GEARCOVER, PUMP GEAR
-
990110-05030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
101S3-13410-00-00 STRAINER HOUSING ASSYSTRAINER HOUSING ASSY
-
1190105-06082-00 BOLT, FLANGEBOLT, FLANGE
-
1290340-14029-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
13214-11198-01-00 GASKETGASKET
-
144X7-13440-01-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
151S3-13447-00-00 COVER, OIL ELEMENTCOVER, OIL ELEMENT
-
1693210-64297-00 O-RINGO-RING
-
1793210-07135-00 O-RINGO-RING
-
1890109-06169-00 BOLTBOLT
-
1991312-06095-00 BOLTBOLT
-
2090149-05018-00 SCREWSCREW
-
2190430-05126-00 GASKETGASKET
-
221S3-13171-00-00 PIPE, DELIVERY 2PIPE, DELIVERY 2
-
2390401-10024-00 BOLT, UNIONBOLT, UNION
-
2490430-10188-00 GASKETGASKET
-
2591312-06012-00 BOLTBOLT
-
26583-13113-00-00 SEAT, CHECK BALLSEAT, CHECK BALL
-
2793503-08007-00 BALLBALL
-
2890501-043E0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
291S3-13416-00-00 PIPE, OIL 1PIPE, OIL 1
-
3093210-10197-00 O-RINGO-RING
-
3199530-10114-00 PIN, DOWELPIN, DOWEL
-
3295022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
331S3-13132-00-00 JOINTJOINT
-
3490430-14043-00 GASKETGASKET
