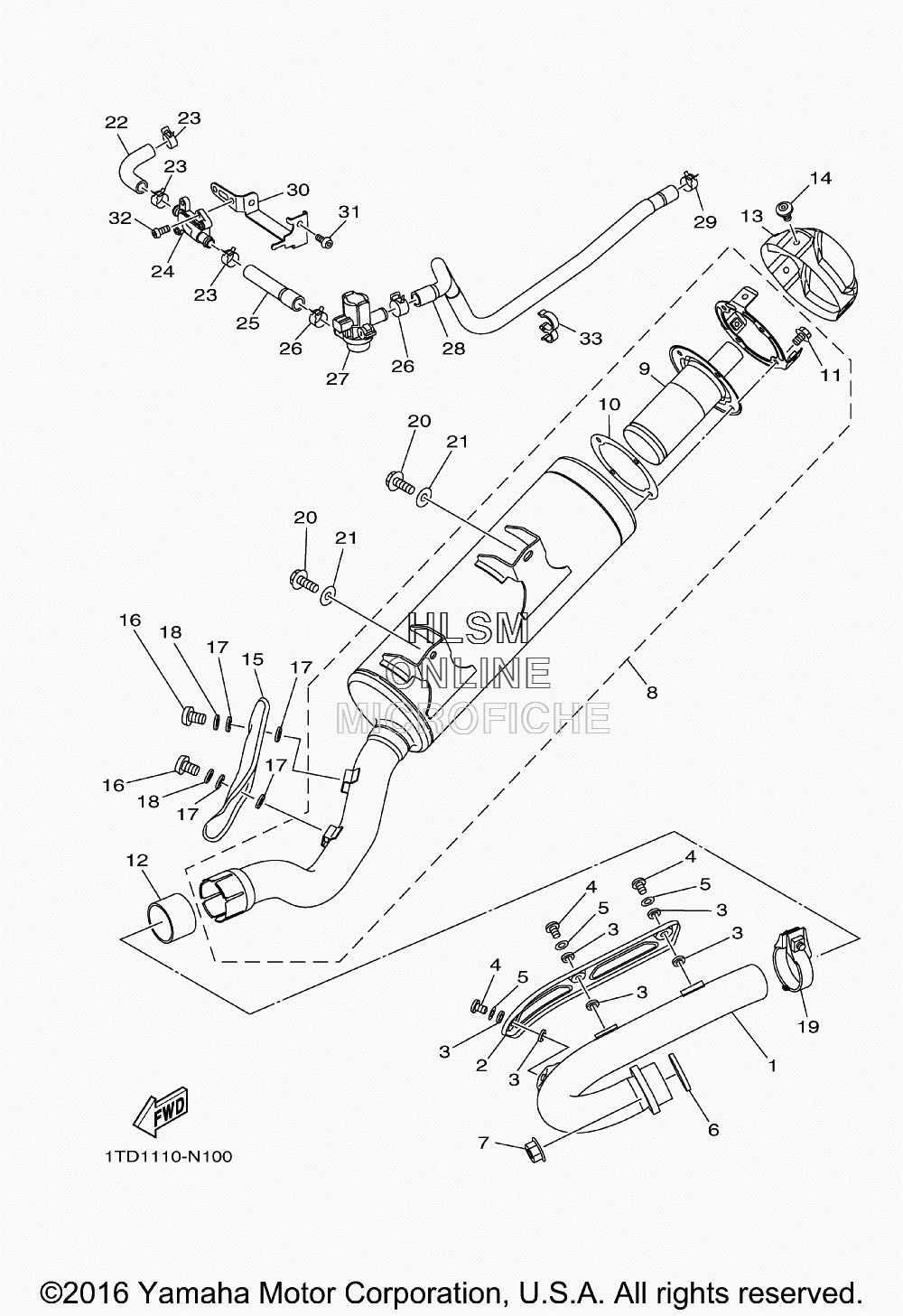

EXHAUST для Yamaha YFZ 450R [YFZ45YSXHL] - 2017 года выпуска
-
№АртикулНазвание
-
118P-14611-01-00 PIPE, EXHAUST 1PIPE, EXHAUST 1
-
218P-14628-00-00 PROTECTOR, EXHAUST PIPEPROTECTOR, EXHAUST PIPE
-
390201-05015-00 WASHER, PLATEWASHER, PLATE
-
498980-06010-00 SCREW, BINDSCREW, BIND
-
592990-06200-00 WASHER, PLAINWASHER, PLAIN
-
63VD-14613-01-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
795702-08500-00 NUT, FLANGENUT, FLANGE
-
81TD-E4703-00-00 MUFFLER COMP. 1MUFFLER COMP. 1
-
91TD-E4780-00-00 ...SPARK ARRESTER ASSY...SPARK ARRESTER ASSY
-
102BG-E4755-00-00 ...GASKET, SILENCER...GASKET, SILENCER
-
1195022-06012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
121TD-E4714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
131TD-E4787-00-00 CAP, SILENCERCAP, SILENCER
-
1490149-06298-00 SCREWSCREW
-
151TD-E4718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
1698902-06010-00 SCREW, BINDSCREW, BIND
-
1790201-05017-00 WASHER, PLATEWASHER, PLATE
-
1892902-06200-00 WASHERWASHER
-
195BE-14788-00-00 BAND, SILENCERBAND, SILENCER
-
2090105-08129-00 BOLT, FLANGEBOLT, FLANGE
-
2190201-08048-00 WASHER, PLATEWASHER, PLATE
-
221TD-14881-00-00 HOSE, BEND 1HOSE, BEND 1
-
2390467-16063-00 CLIPCLIP
-
245GD-14803-00-00 AIR INDUCTION SYSTEM ASSYAIR INDUCTION SYSTEM ASSY
-
251TD-E4882-00-00 HOSE, BEND 2HOSE, BEND 2
-
2690467-170A0-00 CLIPCLIP
-
271TD-14840-00-00 AIR CUT VALVE ASSYAIR CUT VALVE ASSY
-
281TD-14883-00-00 HOSE, BEND 3HOSE, BEND 3
-
2990467-17089-00 CLIPCLIP
-
301TD-F117A-00-00 STAYSTAY
-
3192012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3292012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3390464-16022-00 CLAMPCLAMP
