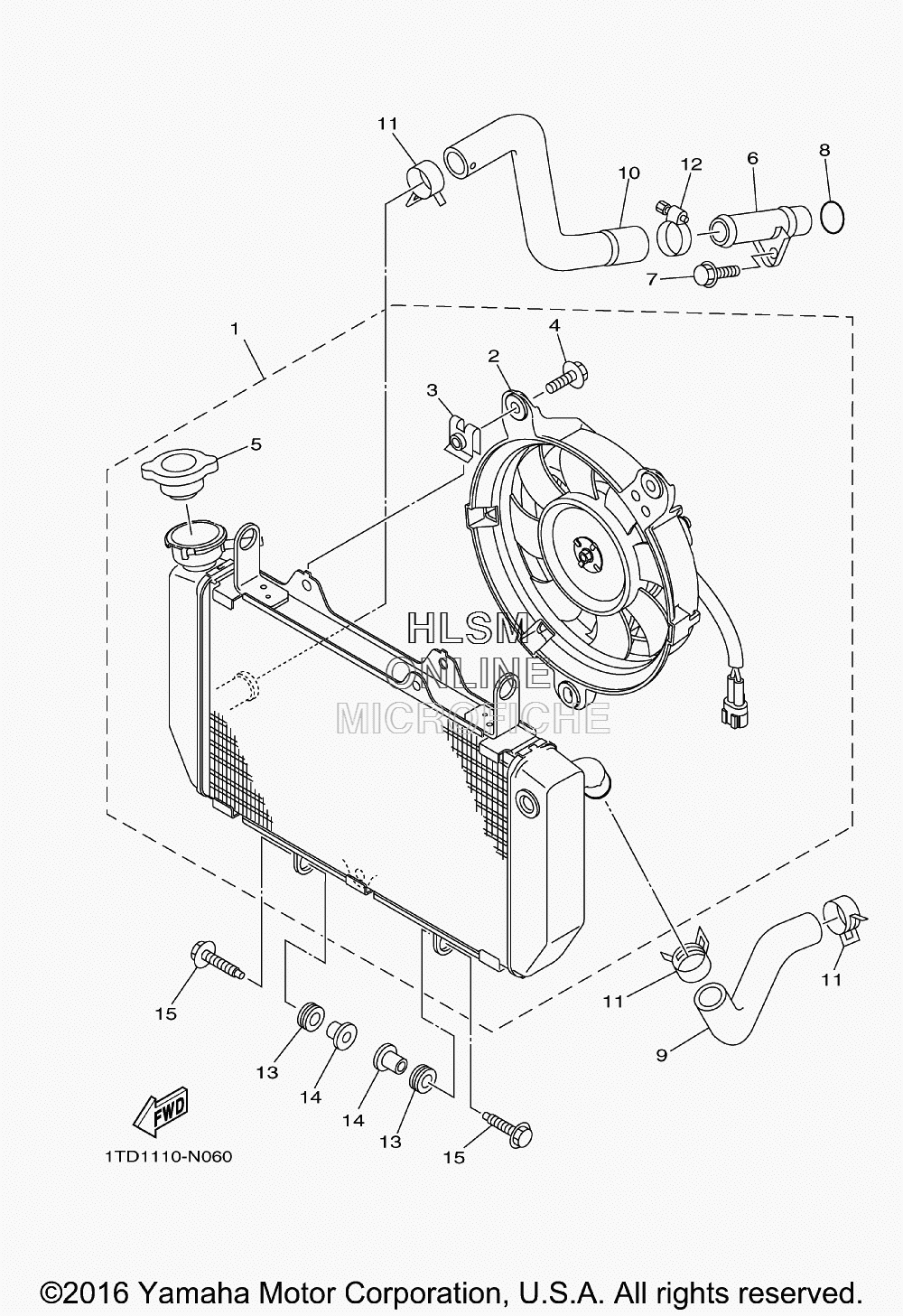

RADIATOR ASSY для Yamaha YFZ 450R [YFZ45YSXHL] - 2017 года выпуска
-
№АртикулНазвание
-
11TD-E2460-00-00 RADIATOR ASSYRADIATOR ASSY
-
21TD-E2405-00-00 ...BLOWER ASSY...BLOWER ASSY
-
31PE-E2535-00-00 ...PLATE...PLATE
-
41PE-E2675-00-00 ...BOLT, BLOWER HOLDING...BOLT, BLOWER HOLDING
-
51HP-E2462-00-00 ...CAP, RADIATOR...CAP, RADIATOR
-
65TG-12481-00-00 PIPE 1PIPE 1
-
795022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
893210-16500-00 O-RINGO-RING
-
91TD-E2576-00-00 HOSE 1HOSE 1
-
101TD-E2577-00-00 HOSE 2HOSE 2
-
1190467-23109-00 CLIPCLIP
-
1290450-32015-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1390480-15058-00 GROMMETGROMMET
-
1490387-07391-00 COLLARCOLLAR
-
1590119-06181-00 BOLT, WITH WASHERBOLT, WITH WASHER
