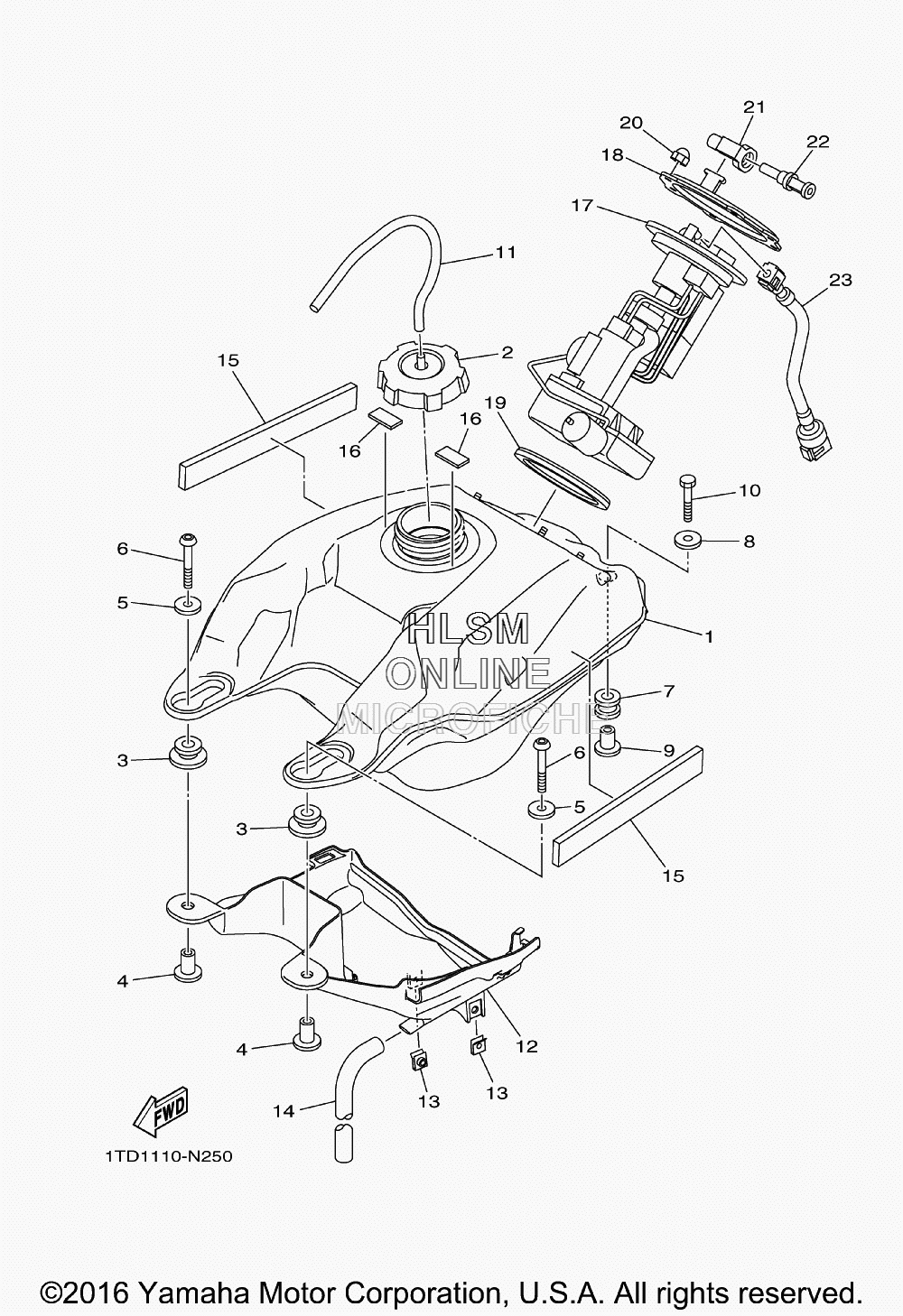

FUEL TANK для Yamaha YFZ 450R [YFZ45YSXHL] - 2017 года выпуска
-
№АртикулНазвание
-
11TD-F4110-00-00 FUEL TANK COMP.FUEL TANK COMP.
-
25KM-24610-00-00 CAP ASSYCAP ASSY
-
390480-18016-00 GROMMETGROMMET
-
490387-066H4-00 COLLARCOLLAR
-
590201-064K6-00 WASHER, PLATEWASHER, PLATE
-
692012-06040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
790480-18290-00 GROMMETGROMMET
-
890201-064K6-00 WASHER, PLATEWASHER, PLATE
-
990387-066J1-00 COLLARCOLLAR
-
1095812-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1190445-08008-00 HOSEHOSE
-
121TD-F414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
1390183-06053-00 NUT, SPRINGNUT, SPRING
-
1418P-2247A-00-00 HOSE 1HOSE 1
-
1590520-08001-00 DAMPER, PLATEDAMPER, PLATE
-
164RR-21485-00-00 DAMPER, RUBBER 1DAMPER, RUBBER 1
-
1718P-13907-11-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
1818P-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
191S3-24486-00-00 O-RINGO-RING
-
2095302-06800-00 NUT, CROWNNUT, CROWN
-
2118P-2464V-00-00 CASE, CAPCASE, CAP
-
2218P-2467E-00-00 CAPCAP
-
2318P-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
