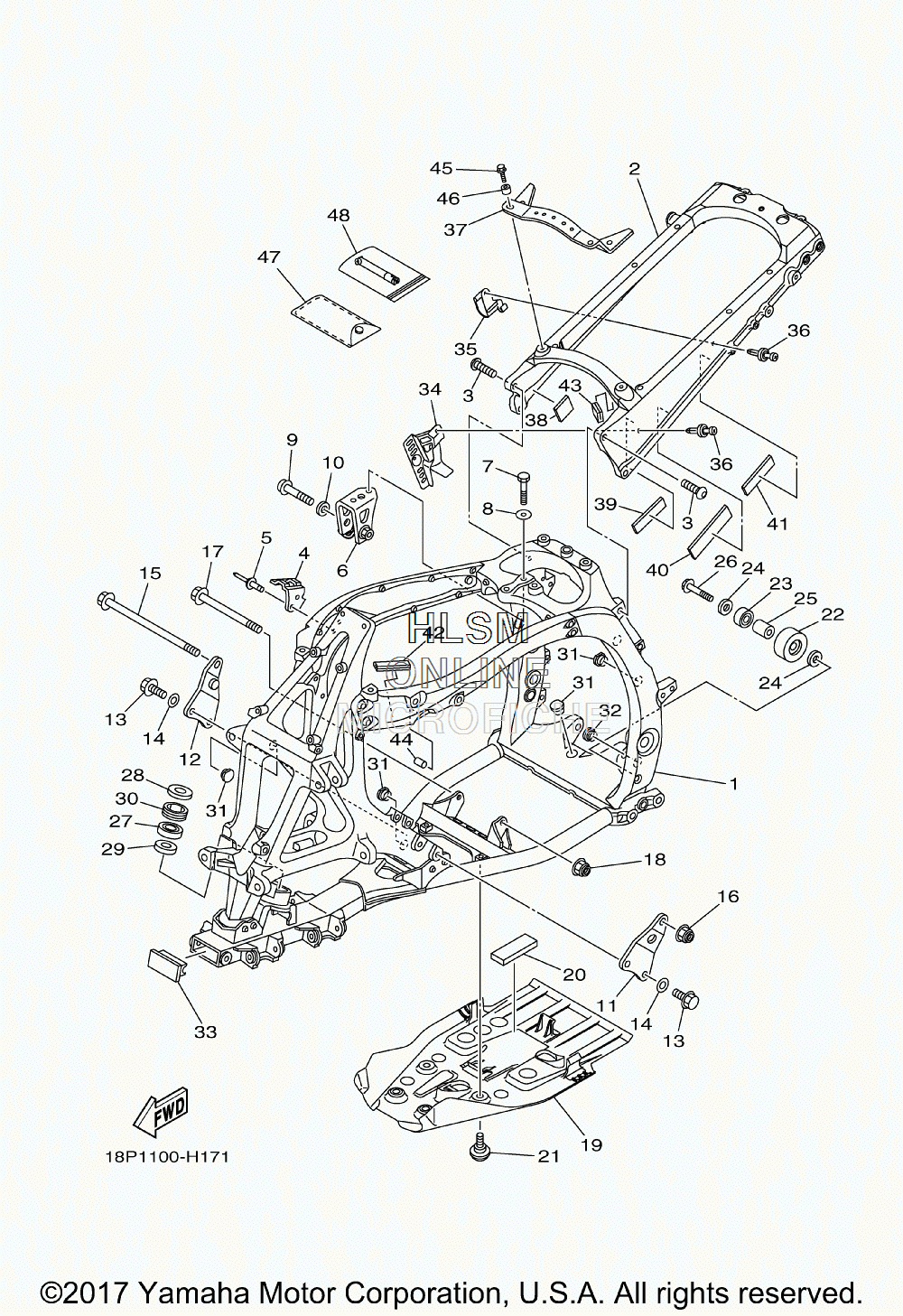

FRAME для Yamaha YFZ450R SE - 2018 года выпуска
-
№АртикулНазвание
-
11TD-F1101-89-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
218P-F1190-49-00 REAR FRAME COMP.REAR FRAME COMP.
-
390149-10034-00 SCREWSCREW
-
418P-2133H-00-00 BRKT., BRAKE PIPE 1BRKT., BRAKE PIPE 1
-
590267-48176-00 RIVET, BLIND (4.8X17 YELLOW)RIVET, BLIND (4.8X17 YELLOW)
-
618P-21315-01-00 STAY, ENGINE 1STAY, ENGINE 1
-
797012-08035-00 BOLTBOLT
-
890201-08053-00 WASHER, PLATEWASHER, PLATE
-
990110-10029-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1090201-10036-00 WASHER, PLATEWASHER, PLATE
-
1118P-21316-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
1218P-21317-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
1395812-10030-00 BOLT, FLANGEBOLT, FLANGE
-
1490201-10043-00 WASHER, PLATEWASHER, PLATE
-
1590105-10350-00 BOLT, FLANGEBOLT, FLANGE
-
1690185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1790105-10148-00 BOLT, FLANGEBOLT, FLANGE
-
1890185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1918P-21471-00-00 PROTECTOR, ENGINEPROTECTOR, ENGINE
-
2090520-10021-00 DAMPER, PLATEDAMPER, PLATE
-
2190109-06198-00 BOLTBOLT
-
225TG-22178-01-00 TENSIONERTENSIONER
-
2393300-60804-00 BEARINGBEARING
-
2490201-08043-00 WASHER, PLATEWASHER, PLATE
-
2590387-086N4-00 COLLARCOLLAR
-
2690105-08112-00 BOLT, FLANGEBOLT, FLANGE
-
2793306-20352-00 BEARINGBEARING
-
2893102-25081-00 OIL SEALOIL SEAL
-
2993102-25099-00 OIL SEALOIL SEAL
-
305GT-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
3190338-20183-00 PLUGPLUG
-
3290338-16007-00 PLUGPLUG
-
3318P-2111A-00-00 CAP, MAIN PIPECAP, MAIN PIPE
-
3418P-21335-00-00 CLAMP, WIRE HARNESS 1CLAMP, WIRE HARNESS 1
-
3518P-21336-00-00 CLAMP, WIRE HARNESS 2CLAMP, WIRE HARNESS 2
-
3690269-05001-00 RIVETRIVET
-
3718P-21131-00-00 REINF., SEAT RAILREINF., SEAT RAIL
-
383KJ-24723-00-00 DAMPER, SEATDAMPER, SEAT
-
394XY-21638-00-00 DAMPER 1DAMPER 1
-
402S2-2177M-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
411C3-2214F-00-00 DAMPER 1DAMPER 1
-
424XY-28347-00-00 MOLE 3MOLE 3
-
433YX-2171L-00-00 MOLE, SIDE COVER 1MOLE, SIDE COVER 1
-
4490445-11418-00 HOSE (L18)HOSE (L18)
-
4590105-06084-00 BOLT, FLANGEBOLT, FLANGE
-
4690387-06197-00 COLLARCOLLAR
-
471PE-F8100-01-00 TOOL KITTOOL KIT
-
481NV-2811A-01-00 GAUGE, AIRGAUGE, AIR
