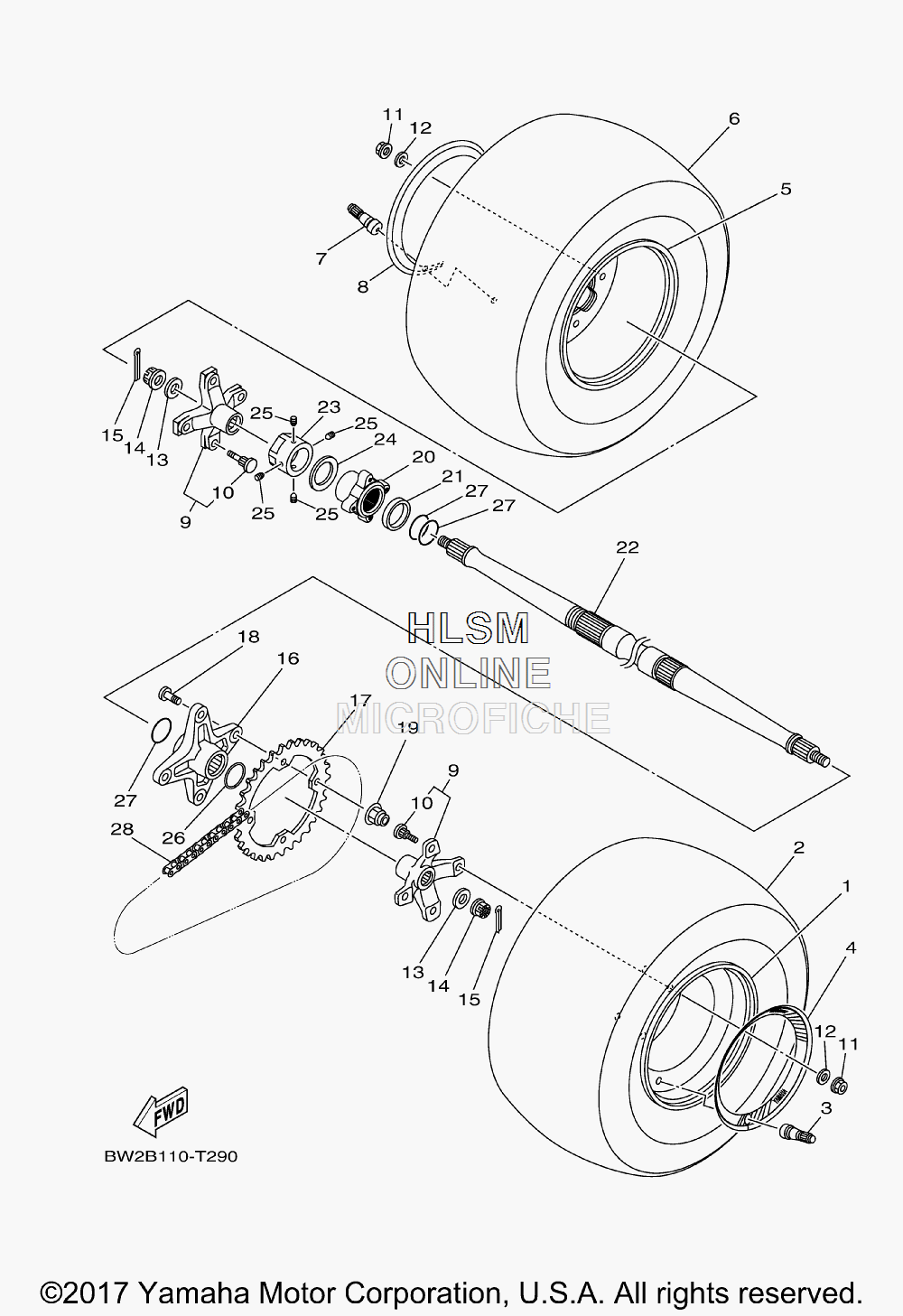

WHEEL - REAR W/ AXLE ASSY для Yamaha YFZ450R SE - 2018 года выпуска
-
№АртикулНазвание
-
11TD-F5390-11-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
294110-09802-00 TIRE (AT20X10R9 MS22 TL) (MAXXIS)TIRE (AT20X10R9 MS22 TL) (MAXXIS)
-
393900-00813-00 VALVE, RIM (TR413) (MAXXIS)VALVE, RIM (TR413) (MAXXIS)
-
4B46-F51G2-10-00 GRAPHIC 2GRAPHIC 2
-
51TD-F5390-11-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
694110-09802-00 TIRE (AT20X10R9 MS22 TL) (MAXXIS)TIRE (AT20X10R9 MS22 TL) (MAXXIS)
-
793900-00813-00 VALVE, RIM (TR413) (MAXXIS)VALVE, RIM (TR413) (MAXXIS)
-
8B46-F51G2-10-00 GRAPHIC 2GRAPHIC 2
-
918P-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
1090114-10013-00 ...BOLT, SERRATION...BOLT, SERRATION
-
1195702-10500-00 NUT, FLANGENUT, FLANGE
-
1292902-10200-00 WASHERWASHER
-
1390201-16023-00 WASHER, PLATEWASHER, PLATE
-
1490171-16002-00 NUT, CASTLENUT, CASTLE
-
1590252-03001-00 PIN, COTTERPIN, COTTER
-
1618P-25386-00-00 COLLAR, SPROCKET AXLECOLLAR, SPROCKET AXLE
-
175TG-25438-10-00 SPROCKET, DRIVEN (38T)SPROCKET, DRIVEN (38T)
-
1890109-10013-00 BOLTBOLT
-
1990185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
201TD-F5712-00-00 BRACKET, DISCBRACKET, DISC
-
2190387-40001-00 COLLARCOLLAR
-
2218P-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
2390179-38001-00 NUTNUT
-
2490208-39001-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
2590113-06055-00 BOLT, SETBOLT, SET
-
2618P-25415-00-00 CIRCLIPCIRCLIP
-
2793210-37003-00 O-RINGO-RING
-
2894582-38098-00 CHAIN (DID520MXV4-98LE)CHAIN (DID520MXV4-98LE)
