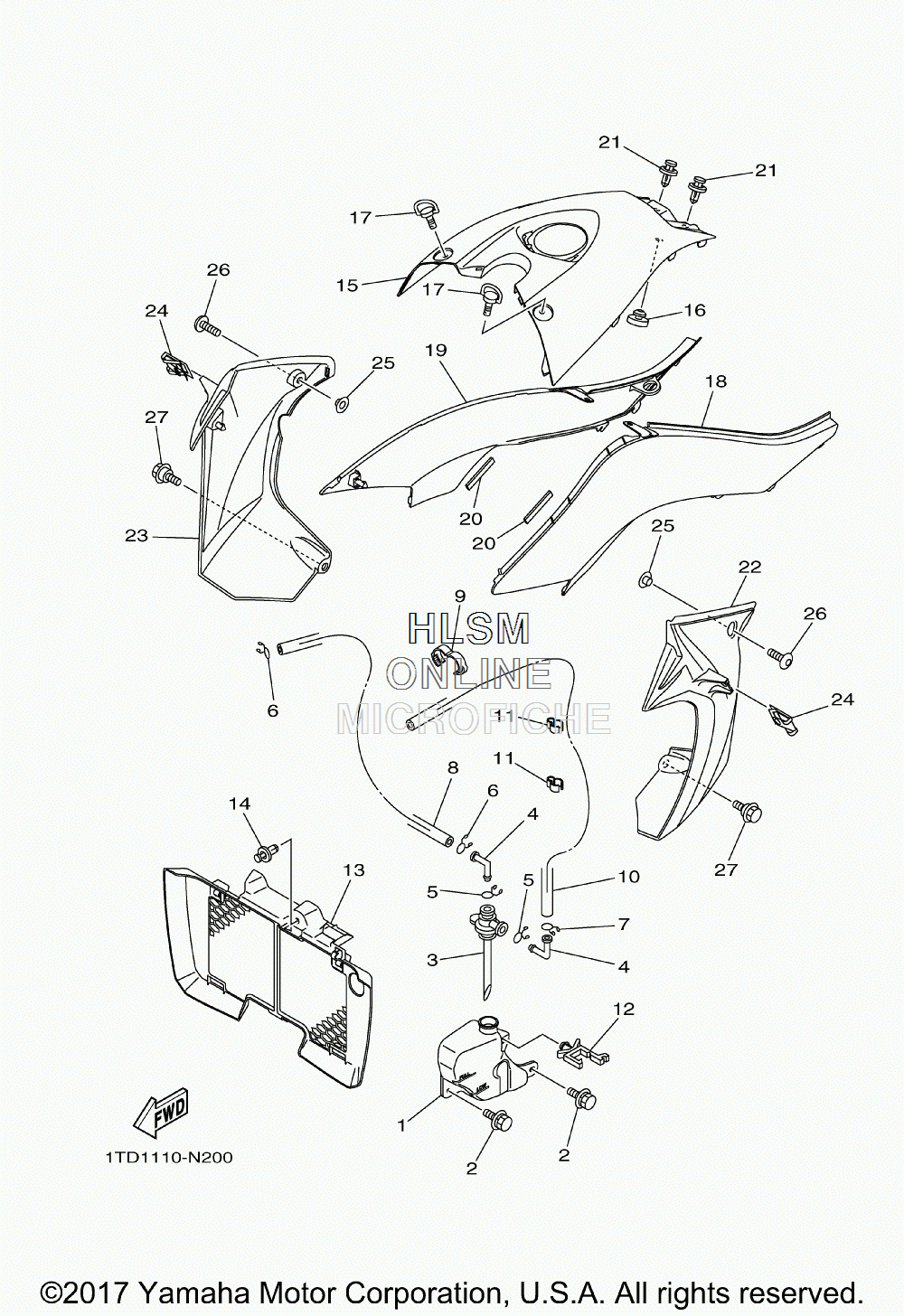

SIDE COVER для Yamaha YFZ450R SE - 2018 года выпуска
-
№АртикулНазвание
-
118P-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
290119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
320S-21875-10-00 CAPCAP
-
426H-21828-00-00 ELBOWELBOW
-
590467-11019-00 CLIPCLIP
-
690467-08003-00 CLIPCLIP
-
790467-08003-00 CLIPCLIP
-
890445-09251-00 HOSE (L350)HOSE (L350)
-
990465-13M11-00 CLAMPCLAMP
-
1090445-09123-00 HOSE (L730)HOSE (L730)
-
1190464-15065-00 CLAMPCLAMP
-
1290464-15M08-00 CLAMPCLAMP
-
131TD-E2467-00-00 COVER, RADIATORCOVER, RADIATOR
-
1490269-07076-00 RIVETRIVET
-
151TD-F171A-20-00 COVER, TOPCOVER, TOP
-
1622W-24741-00-00 PAD, SEATPAD, SEAT
-
178HG-28386-00-00 HEADHEAD
-
181TD-F1711-50-00 COVER, SIDE 1COVER, SIDE 1
-
191TD-F1721-50-00 COVER, SIDE 2COVER, SIDE 2
-
201LJ-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
2190269-07010-00 RIVETRIVET
-
221TD-F1731-60-00 COVER, SIDE 3COVER, SIDE 3
-
231TD-F1741-60-00 COVER, SIDE 4COVER, SIDE 4
-
244XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
2590387-06170-00 COLLARCOLLAR
-
2690111-06084-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
2790109-06172-00 BOLTBOLT
